RX60L-XEYDSV (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1981
Engine
21R
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8108)LHD..3H

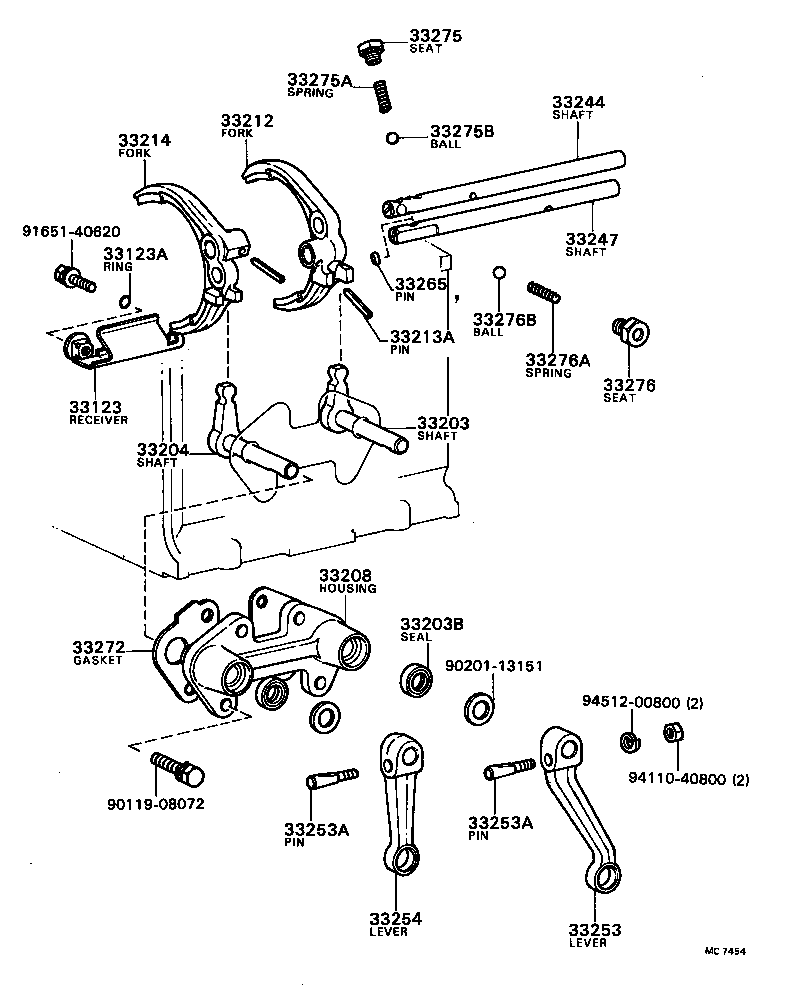

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33123 - RECEIVER, TRANSMISSION OIL | ||||
| 33123-20020 |
RX60..LHD..3H |
1 | ||
| 33123A - RING, O(FOR TRANSMISSION OIL RECEIVER) | ||||
| 96710-01006 |
RX60..LHD..3H |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-20060 |
RX60..LHD..3H |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90313-13001 |
RX60..LHD..3H |
2 | ||
| 33204 - SHAFT SUB-ASSY, SHIFT LEVER, NO.2 | ||||
| 33204-20040 |
RX60..LHD..3H |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33208-20020 |
RX60..LHD..3H |
1 | ||
| 33212 - FORK, 1ST & REVERSE SHIFT | ||||
| 33212-30020 |
RX60..LHD..3H |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RX60..LHD..3H |
2 | ||
| 33214 - FORK, 2ND & 3RD SHIFT | ||||
| 33213-30020 |
RX60..LHD..3H |
1 | ||
| 33244 - SHAFT, 2ND & 3RD SHIFT FORK | ||||
| 33243-30050 |
RX60..LHD..3H |
1 | ||
| 33247 - SHAFT, 1ST & REVERSE SHIFT FORK | ||||
| 33242-30030 |
RX60..LHD..3H |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-22020 |
RX60..LHD..3H |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-30010 |
RX60..LHD..3H |
2 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-30010 |
RX60..LHD..3H |
2 | ||
| 33254 - LEVER, SHIFT OUTER, NO.2 | ||||
| 33254-22010 |
RX60..LHD..3H |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-10010 |
RX60..LHD..3H |
1 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-20020 |
RX60..LHD..3H |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-16001 |
RX60..LHD..3H |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14524 |
RX60..LHD..3H |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12059 |
RX60..LHD..3H |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14524 |
RX60..LHD..3H |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
GX6#,LX60,RX6#,TX62..MTM |
2 | ||
| Common parts | ||||
| 90119-08072 | ||||
| 90201-13151 | ||||
| 91651-40620 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
