RX60L-XEYDS (1980)

Toyota Cressida

Production Sep 1980 - Aug 1981
Engine 21R
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8108)LHD..3H

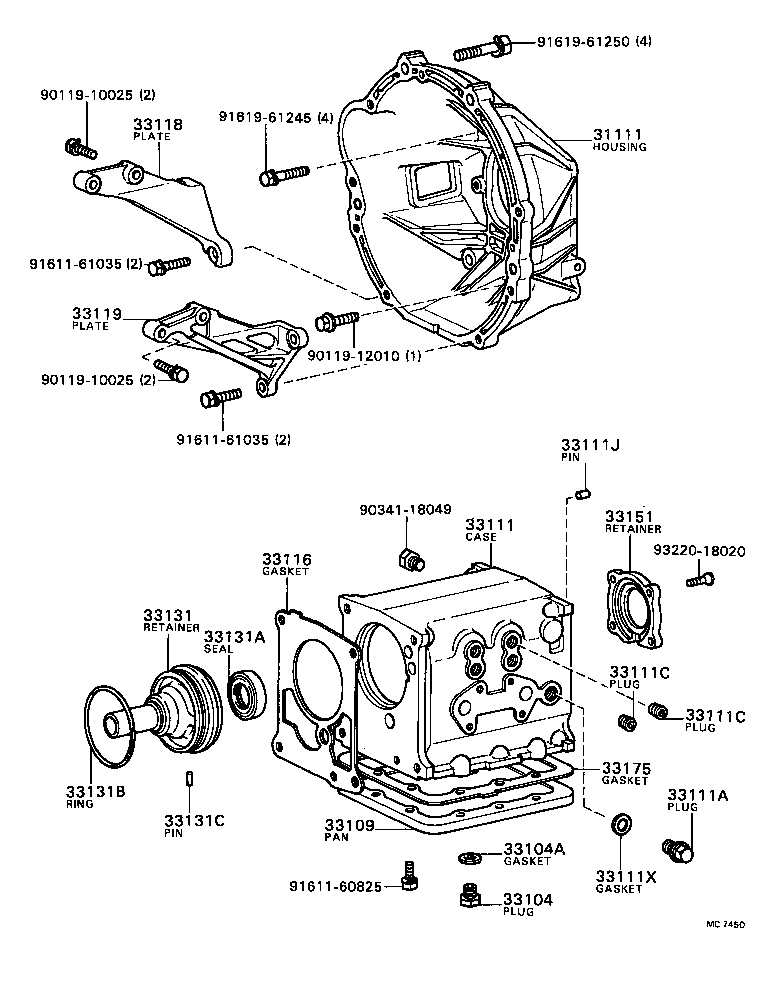

Click highlighted areas on diagram

diagram 31111 33104 33104A 33109 33111 33111A 33111C 33111C 33111J 33111X 33116 33118 33119 33131 33131A 33131B 33131C 33151 33175 9011910025 9011910025 9011912010 9034118049 9161160825 9161161035 9161161035 9161961245 9161961250 9322018020
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20110

RX60..LHD..3H

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GX6#,LX60,RX6#,TX62..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LX60,RX6#,TX62..MTM

 1
33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM)
33171-30020

RX60..LHD..3H

 1
33111 - CASE, MANUAL TRANSMISSION
33111-30081

RX60..LHD..3H

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GX6#,LX60,RX6#,TX62..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015

RX60..LHD..3H

 2
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015

RX60..LHD..3H

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12216

RX60..LHD..3H

L=14,OD=12

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LX60,RX6#,TX62..MTM

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-20050

RX60..LHD..3H

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22030

RX6#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22021

RX6#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-30040

RX60..LHD..3H

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32106

RX60..LHD..3H

 1
33131B - RING, O(FOR TRANSMISSION FRONT BEARING RETAINER)
90301-99014

RX60..LHD..3H

 1
33131C - PIN, SLOTTED SPRING(FOR TRANSMISSION FRONT BEARING RETA
90254-05005

RX60..LHD..3H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-30030

RX60..LHD..3H

 1
33175 - GASKET, MANUAL TRANSMISSION OIL PAN
33175-30020

RX60..LHD..3H

 1
Common parts
90119-10025
90119-12010
90341-18049
91611-60825
91611-61035
91619-61245
91619-61250
93220-18020
