RX60L-XEMNCC (1982)

Toyota Cressida

Production Aug 1982 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

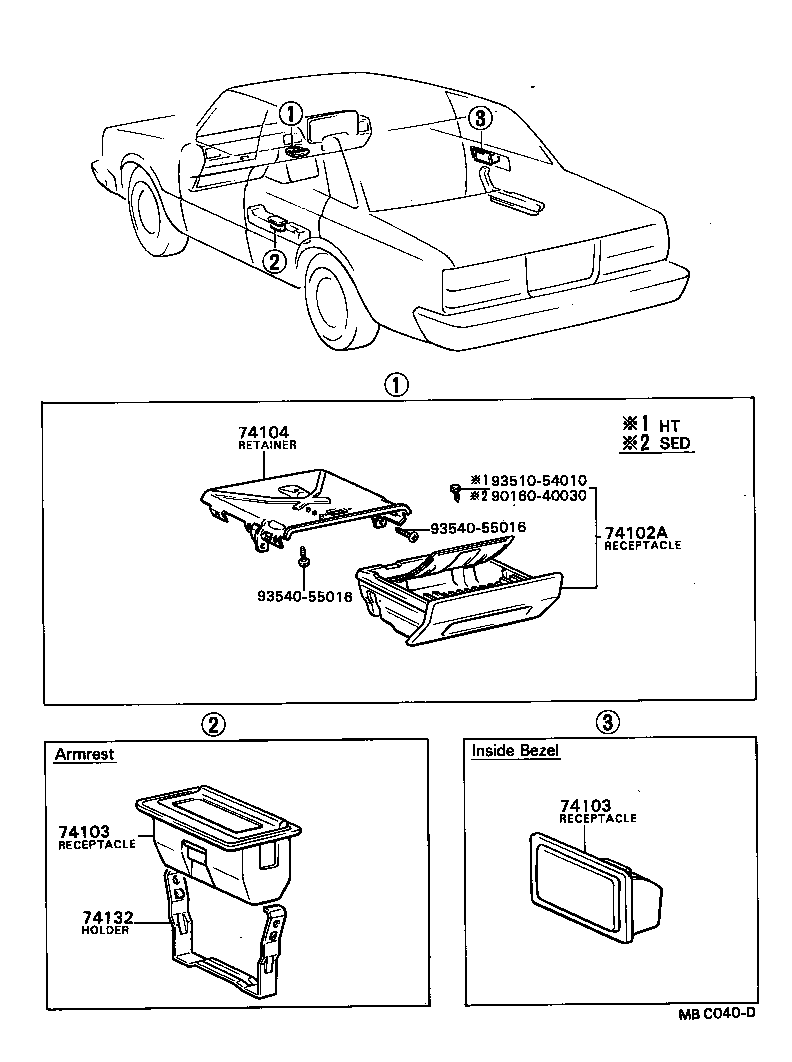

Click highlighted areas on diagram

diagram 74102A 74103 74103 74104 74132 9016040030 9351054010 9354055016 9354055016
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-2204004

LX60,MX62,RX6#,TX62

BLUE,BLUE,TRIM8#

 1
74102-2204001

LX60,MX62,RX6#,TX62

BLACK,BLACK,TRIM2#

 1
74102-2204006

GX6#,LX60,MX6#,RX6#,TX62

DARK BROWN,BROWN,TRIM0#,4#

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-22040

MX62,RX60..GL

ARMREST

 2
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-22040

MX62,RX60..GL

ARMREST

 2
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-22070

GX6#,LX60,MX6#,RX6#,TX62

 1
74132 - HOLDER, REAR ASH RECEPTACLE
74239-22020

MX62,RX60..GL,SXL

 2
Common parts
90160-40030
93510-54010
93540-55016
