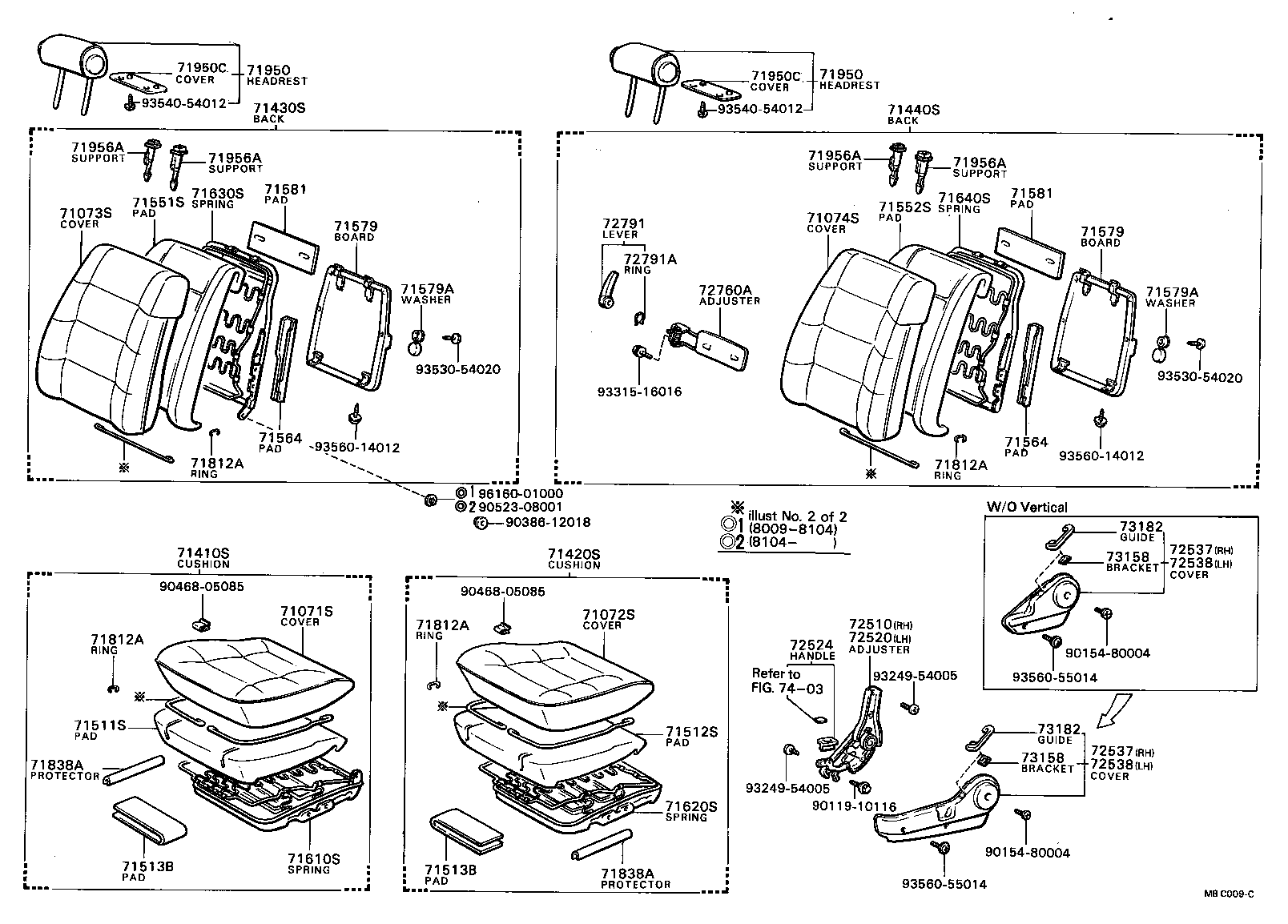

RX60L-XEMNCC (1982)
Toyota Cressida
(8009- )LHD..3FC,4F,4FC,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2265003 |
MX62,RX60..GL,SXL FB-F,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-2265004 |
MX62,RX60..GL,SXL FB-F,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2265005 |
MX62,RX60..GL,SXL FB-F,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2235003 |
MX62,RX60..GL,SXL FB-F,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-2235005 |
MX62,RX60..GL,SXL FB-F,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2235004 |
MX62,RX60..GL,SXL FB-F,BLUE,BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A05005 |
MX62,RX60..GL,SXL FB-F,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2A05004 |
MX62,RX60..GL,SXL FB-F,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A05003 |
MX62,RX60..GL,SXL FB-F,GRAY,GRAY,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2A05004 |
MX62,RX60..GL,SXL FB-F,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A05003 |
MX62,RX60..GL,SXL FB-F,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A05005 |
MX62,RX60..GL,SXL FB-F,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2271004 |
RX60..LHD..GL FB-F,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2271003 |
RX60..LHD..GL FB-F,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-2271005 |
RX60..LHD..GL FB-F,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2247004 |
RX60..LHD..GL FB-F,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2247003 |
RX60..LHD..GL FB-F,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-2247005 |
RX60..LHD..GL FB-F,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2A07005 |
RX60..LHD..GL FB-F,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2A07003 |
RX60..LHD..GL FB-F,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-2A07004 |
RX60..LHD..GL FB-F,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2284003 |
RX60..LHD..GL FB-F,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-2284005 |
RX60..LHD..GL FB-F,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2284004 |
RX60..LHD..GL FB-F,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22230 |
MX62,RX60..GL,SXL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22230 |
MX62,RX60..GL,SXL |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22100 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F 100 X 750 |
2 | ||
| 71522-22090 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F 100 X 400 |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22100 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F 100 X 750 |
2 | ||
| 71522-22090 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F 100 X 400 |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22240 |
MX62,RX60..GL,SXL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22240 |
MX62,RX60..GL,SXL |
1 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-22060 |
GX6#,MX6#,RX60..GL LH |
2 | ||
| 71563-22050 |
GX6#,MX6#,RX60..GL RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-22060 |
GX6#,MX6#,RX60..GL LH |
2 | ||
| 71563-22050 |
GX6#,MX6#,RX60..GL RH |
2 | ||
| 71579 - BOARD, FRONT SEAT BACK | ||||
| 71705-2201006 |
MX62,RX60..GL,SXL D-BROWN,BROWN,TRIM4# |
2 | ||
| 71705-2201004 |
MX62,RX60..GL,SXL BLUE,BLUE,TRIM8# |
2 | ||
| 71705-2201001 |
MX62,RX60..GL,SXL BLACK,BLACK,TRIM2# |
2 | ||
| 71579 - BOARD, FRONT SEAT BACK | ||||
| 71705-2201006 |
MX62,RX60..GL,SXL D-BROWN,BROWN,TRIM4# |
2 | ||
| 71705-2201004 |
MX62,RX60..GL,SXL BLUE,BLUE,TRIM8# |
2 | ||
| 71705-2201001 |
MX62,RX60..GL,SXL BLACK,BLACK,TRIM2# |
2 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201004 |
MX62,RX60..GL,SXL BLUE,BLUE,TRIM8# |
4 | ||
| 71788-2201006 |
MX62,RX60..GL,SXL D-BROWN,BROWN,TRIM4# |
4 | ||
| 71788-2201001 |
MX62,RX60..GL,SXL BLACK,BLACK,TRIM2# |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201004 |
MX62,RX60..GL,SXL BLUE,BLUE,TRIM8# |
4 | ||
| 71788-2201006 |
MX62,RX60..GL,SXL D-BROWN,BROWN,TRIM4# |
4 | ||
| 71788-2201001 |
MX62,RX60..GL,SXL BLACK,BLACK,TRIM2# |
4 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22170 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22080 |
LX60,RX60..LHD..EUR W/VERTICAL |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22210 |
GX6#,RX60..LHD..GL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22170 |
GX6#,RX60..LHD..GL |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
2 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2237004 |
MX62,RX60..GL..(ARL,EUR) BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2237003 |
MX62,RX60..GL..(ARL,EUR) GRAY,GRAY,TRIM2# |
2 | ||
| 71910-2237005 |
MX62,RX60..GL..(ARL,EUR) GREIGE,BEIGE,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2237004 |
MX62,RX60..GL..(ARL,EUR) BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2237003 |
MX62,RX60..GL..(ARL,EUR) GRAY,GRAY,TRIM2# |
2 | ||
| 71910-2237005 |
MX62,RX60..GL..(ARL,EUR) GREIGE,BEIGE,TRIM4# |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-2205006 |
LX60,MX62,RX60..ARL,EUR D-BROWN,BROWN,TRIM0#,4# |
2 | ||
| 71922-2205004 |
LX60,MX62,RX60..ARL,EUR BLUE,BLUE,TRIM8# |
2 | ||
| 71922-2205001 |
LX60,MX62,RX60..ARL,EUR BLACK,BLACK,TRIM2# |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-2205006 |
LX60,MX62,RX60..ARL,EUR D-BROWN,BROWN,TRIM0#,4# |
2 | ||
| 71922-2205004 |
LX60,MX62,RX60..ARL,EUR BLUE,BLUE,TRIM8# |
2 | ||
| 71922-2205001 |
LX60,MX62,RX60..ARL,EUR BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006016 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71931-1001004 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
LX60,MX62,RX6#,TX62 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
LX60,MX62,RX6#,TX62 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71930-1006004 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006016 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71931-1001004 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
LX60,MX62,RX6#,TX62 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
LX60,MX62,RX6#,TX62 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71930-1006004 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006016 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71931-1001004 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
LX60,MX62,RX6#,TX62 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
LX60,MX62,RX6#,TX62 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71930-1006004 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006016 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71931-1001004 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
LX60,MX62,RX6#,TX62 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
LX60,MX62,RX6#,TX62 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71930-1006004 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-22080 |
LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-22080 |
LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-2004004 |
LX60,MX62,RX6#,TX62 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005004 |
LX60,MX62,RX6#,TX62 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005001 |
LX60,MX62,RX6#,TX62 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-2004006 |
GX6#,LX60,MX6#,RX6#,TX62 LH,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72526-2004001 |
LX60,MX62,RX6#,TX62 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005006 |
GX6#,LX60,MX6#,RX6#,TX62 RH,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71811-2207001 |
RX60..LHD..GL VERTICAL W/BELT HANGER,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2207006 |
RX60..LHD..GL VERTICAL W/BELT HANGER,D-BROWN,BROWN,TRIM4# |
1 | ||
| 71811-2211001 |
LX60,RX60..LHD..EUR VERTICAL,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2207004 |
RX60..LHD..GL VERTICAL W/BELT HANGER,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2211004 |
LX60,RX60..LHD..EUR VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2211006 |
GX61,LX60,RX60..LHD..EUR VERTICAL,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71811-2207001 |
RX60..LHD..GL VERTICAL W/BELT HANGER,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2207006 |
RX60..LHD..GL VERTICAL W/BELT HANGER,D-BROWN,BROWN,TRIM4# |
1 | ||
| 71811-2211001 |
LX60,RX60..LHD..EUR VERTICAL,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2207004 |
RX60..LHD..GL VERTICAL W/BELT HANGER,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2211004 |
LX60,RX60..LHD..EUR VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2211006 |
GX61,LX60,RX60..LHD..EUR VERTICAL,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71812-2203001 |
RX60..LHD..GL VERTICAL,W/BELT HANGER,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2203006 |
RX60..LHD..GL VERTICAL,W/BELT HANGER,D-BROWN,BROWN,TRIM4# |
1 | ||
| 71812-2203004 |
RX60..LHD..GL VERTICAL,W/BELT HANGER,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-2207001 |
LX60,RX60..LHD..EUR VERTICAL,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2207004 |
LX60,RX60..LHD..EUR VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-2207006 |
GX61,LX60,RX60..LHD..EUR VERTICAL,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71812-2203001 |
RX60..LHD..GL VERTICAL,W/BELT HANGER,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2203006 |
RX60..LHD..GL VERTICAL,W/BELT HANGER,D-BROWN,BROWN,TRIM4# |
1 | ||
| 71812-2203004 |
RX60..LHD..GL VERTICAL,W/BELT HANGER,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-2207001 |
LX60,RX60..LHD..EUR VERTICAL,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2207004 |
LX60,RX60..LHD..EUR VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-2207006 |
GX61,LX60,RX60..LHD..EUR VERTICAL,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-22030 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3003006 |
GX6#,LX60,MX6#,RX6#..3FC,4F,4FC,5F D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72791-3003001 |
LX60,MX62,RX6#..3FC,4F,4FC,5F BLACK,BLACK,TRIM2# |
1 | ||
| 72791-3003004 |
LX60,MX62,RX6#..3FC,4F,4FC,5F BLUE,BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GX6#,LX60,MX6#,RX6#..3FC,4F,4FC,5F |
1 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90154-80004 | ||||
| 90386-12018 | ||||
| 90468-05085 | ||||
| 90523-08001 | ||||
| 93249-54005 | ||||
| 93315-16016 | ||||
| 93530-54020 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 7403 | ||||

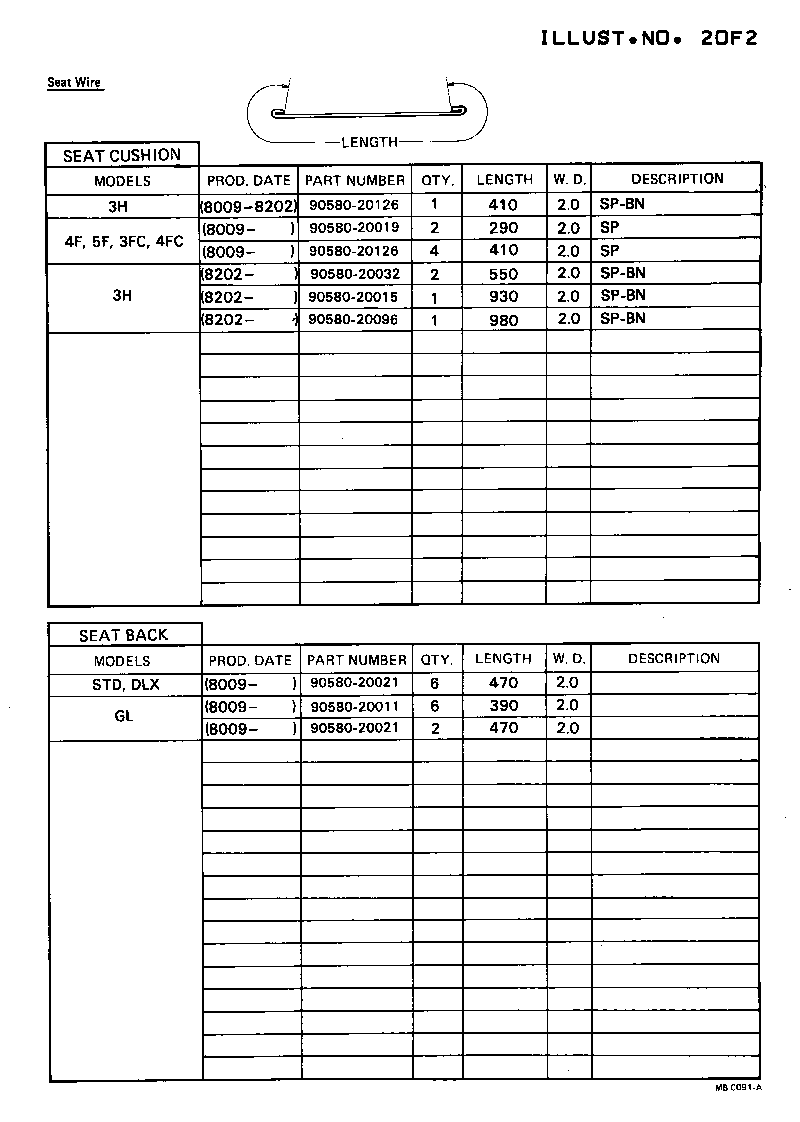

(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20015 | ||||
| 90580-20019 | ||||
| 90580-20021 | ||||
| 90580-20032 | ||||
| 90580-20096 | ||||
| 90580-20126 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
