RX60L-XEMNCC (1982)
Toyota Cressida
(8009- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57207-22021 |
GX6#,LX60,MX62,RX6#,TX62 RH |
1 | ||
| 57208-22011 |
GX6#,LX60,MX62,RX60..ARL,EUR,GEN,ME,SAA LH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57207-22021 |
GX6#,LX60,MX62,RX6#,TX62 RH |
1 | ||
| 57208-22011 |
GX6#,LX60,MX62,RX60..ARL,EUR,GEN,ME,SAA LH |
1 | ||
| 57465 - GUSSET, CENTER FLOOR CROSSMEMBER, REAR, RH | ||||
| 57465-22010 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 57466 - GUSSET, CENTER FLOOR CROSSMEMBER, REAR, LH | ||||
| 57466-22010 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 57642 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-22010 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58052E - EXTENSION, CENTER FLOOR TO BRACE | ||||
| 64227-22020 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-22070 |
LX60,MX62,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| 58101A - COVER, TRANSMISSION AUXILIARY | ||||
| 58261-22090 |
RX60,TX62..SED..(3FC,4F,4FC,5F) |
1 | ||
| 58101D - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58207-22040 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 58101G - BRACKET, MOUNTING, FLOOR, NO.2 | ||||
| 58132-22021 |
GX6#,LX60,MX62,RX6#,TX62 |
1 | ||
| 58101H - BRACKET, MOUNTING, FLOOR, NO.3 | ||||
| 58133-22020 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 58101J - BRACKET, MOUNTING, FLOOR, NO.4 | ||||
| 58236-14010 |
GX6#,LX60,MX62,RX6#,TX62 |
7 | ||
| 58101J - BRACKET, MOUNTING, FLOOR, NO.4 | ||||
| 58236-14010 |
GX6#,LX60,MX62,RX6#,TX62 |
7 | ||
| 58101J - BRACKET, MOUNTING, FLOOR, NO.4 | ||||
| 58236-14010 |
GX6#,LX60,MX62,RX6#,TX62 |
7 | ||
| 58101K - BRACKET, MOUNTING, FLOOR, NO.5 | ||||
| 58231-22020 |
RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-22030 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-22020 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-22020 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-22040 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58223B - PLATE, ACCELERATOR PEDAL | ||||
| 58223-20020 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-22011 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 58235 - BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING | ||||
| 58235-22010 |
RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-22060 |
LX60,RX6#,TX62..4F,5F |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-22021 |
GX6#,LX60,RX6#,TX62..4F,5F |
1 | ||
| 58291A - RETAINER, ACCELERATOR PEDAL | ||||
| 58291-22040 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-22902 |
MX63,RX60,TX62..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN) |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-22380 |
LX60,MX62,RX60,TX62..SED |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-22071 |
LX60,MX62,RX60,TX62..SED |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-22901 |
LX60,MX62,RX60,TX62..SED..(ARL,EUR,GEN,SA) |
1 | ||
| 58313E - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-22020 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-22901 |
LX60,MX62,RX60,TX62..SED..(ARL,EUR,GEN,SA) |
1 | ||
| 58320 - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-22020 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58320A - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-22010 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58371 - BRACKET, FUEL PUMP SUPPORT | ||||
| 58369-22031 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58381-22030 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 58794 - CARRIER, JACK | ||||
| 58791-22010 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| Common parts | ||||
| 90181-04002 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01038 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01126 | ||||
| 90950-01150 | ||||
| 90950-01205 | ||||
| 90950-01338 | ||||
| 90950-06061 | ||||
| 91651-40614 | ||||
| 91655-40620 | ||||
| 91665-40616 | ||||
| 93540-14010 | ||||

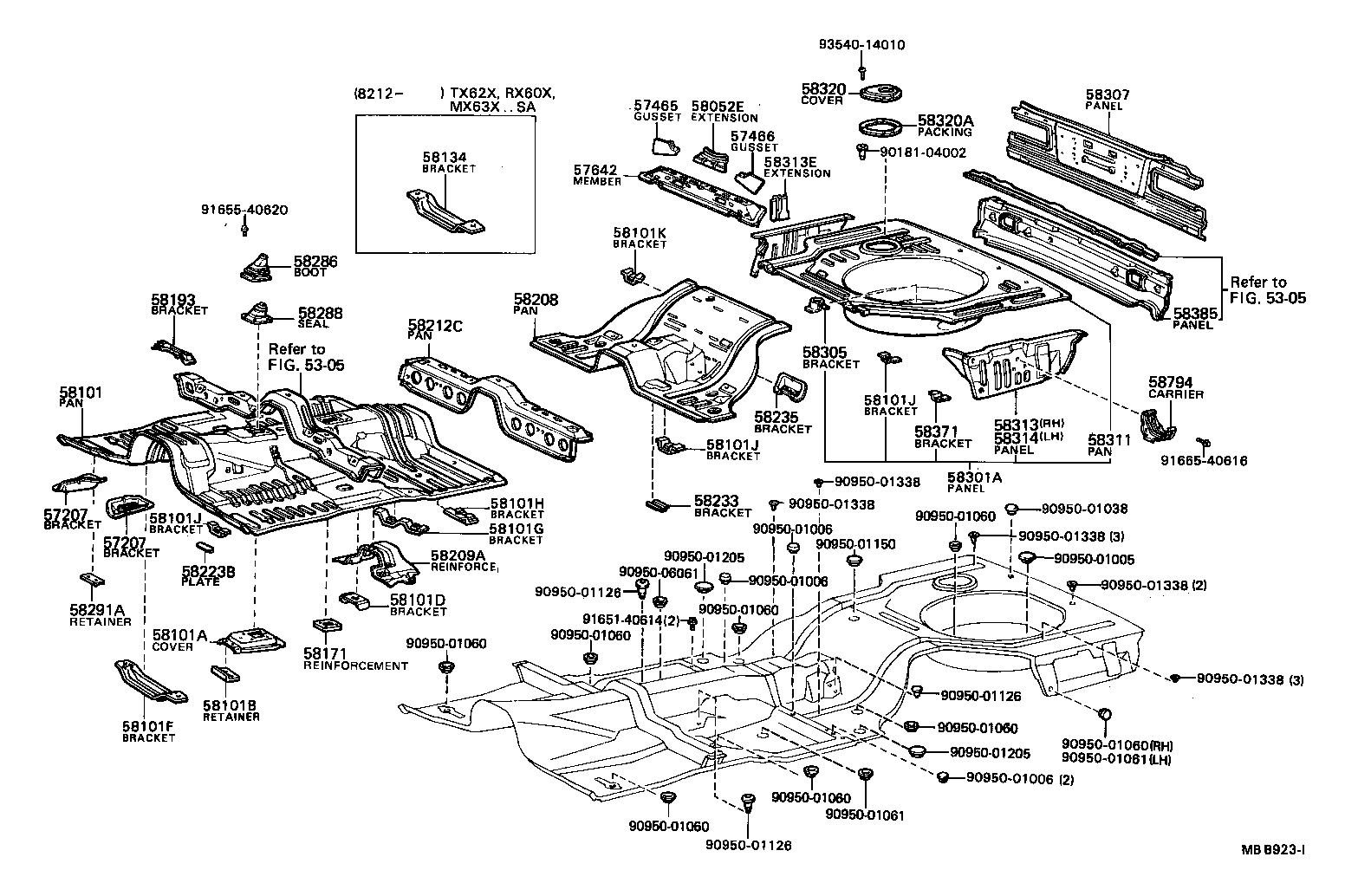

| Linked diagrams | ||||
| 5305 | ||||
