RX60L-XEMNCC (1982)

Toyota Cressida

Production Aug 1982 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )SED

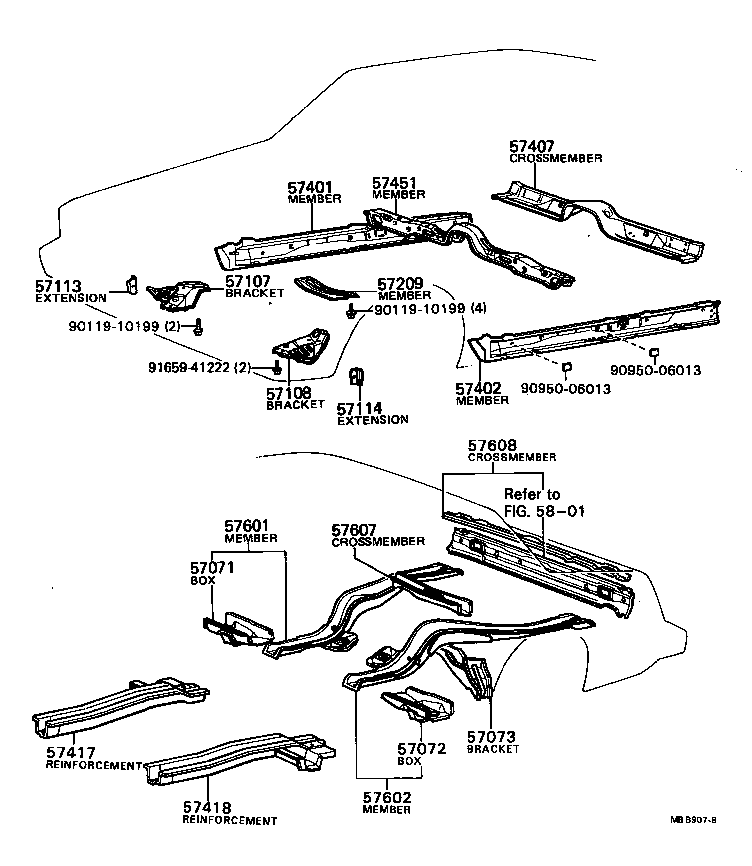

Click highlighted areas on diagram

diagram 57071 57072 57073 57107 57108 57113 57114 57209 57401 57402 57407 57417 57418 57451 57601 57602 57607 57608 5801 9011910199 9011910199 9095006013 9095006013 9165941222
Part # Description Qty Price
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-22040

RX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-22040

RX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-22031

RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22030

GX6#,LX60,MX6#,RX6#,TX62

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22090

GX6#,LX60,MX6#,RX6#,TX62

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22040

GX6#,LX60,MX62,RX6#,TX62

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22040

GX6#,LX60,MX62,RX6#,TX62

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-22120

LX60,RX60..(4F,5F)..(EUR,GEN,ME)

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22050

LX60,MX62,RX6#,TX62

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22050

LX60,MX62,RX6#,TX62

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-22030

GX6#,LX60,MX6#,RX6#,TX62

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57505-22020

GX6#,LX60,MX6#,RX6#,TX62

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57506-22020

GX6#,LX60,MX6#,RX6#,TX62

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-22012

LX60,MX62,RX6#,TX62

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22907

LX60,RX60..SED..(DLX,GL)..EUR

W/URETHANE BUMPER

 1
57601-22906

RX60..GL..SDZ

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-22907

LX60,RX60..SED..(DLX,GL)..EUR

W/URETHANE BUMPER

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-22053

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-22901

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
Common parts
90119-10199
90950-06013
91659-41222
Linked diagrams
5801
