RX60L-XEMNCC (1982)

Toyota Cressida

Production Aug 1982 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

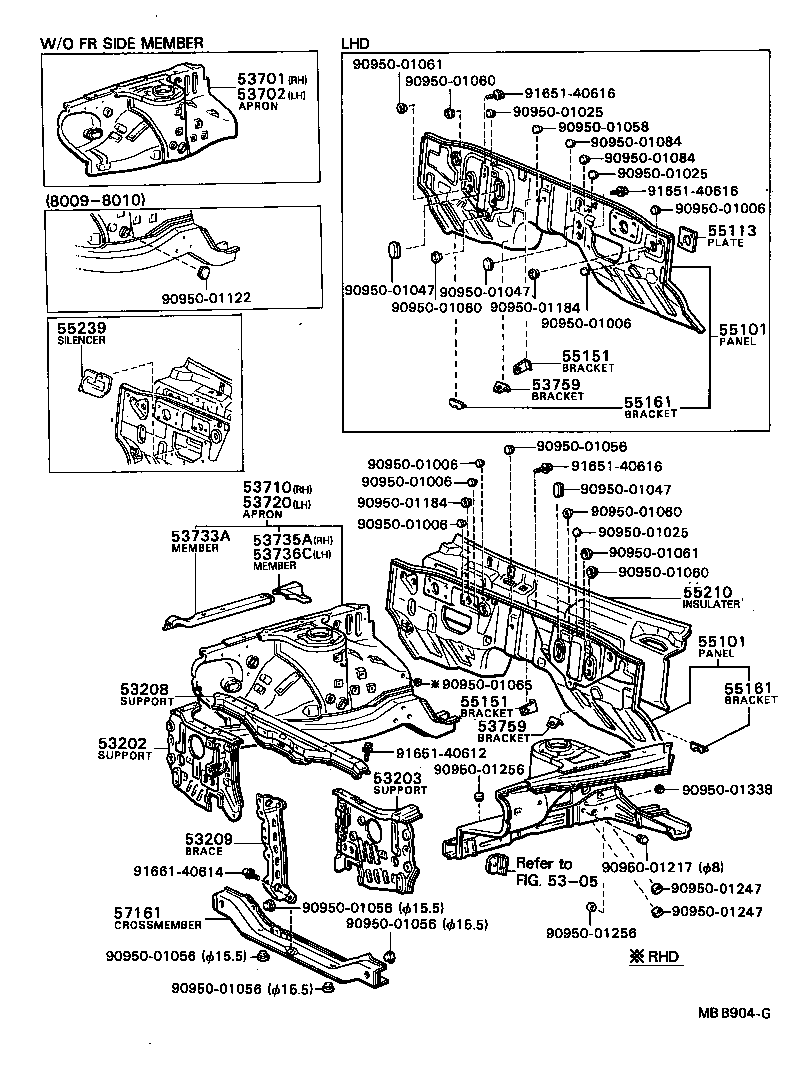

Click highlighted areas on diagram

diagram 5305 53202 53203 53208 53209 53701 53702 53710 53720 53733A 53735A 53736C 53759 53759 55101 55101 55113 55151 55151 55161 55161 55210 55239 57161 9095001006 9095001006 9095001006 9095001006 9095001006 9095001025 9095001025 9095001025 9095001047 9095001047 9095001047 9095001056 9095001056 9095001056 9095001056 9095001056 9095001058 9095001060 9095001060 9095001060 9095001060 9095001061 9095001061 9095001065 9095001084 9095001084 9095001122 9095001184 9095001184 9095001217 9095001247 9095001247 9095001256 9095001256 9095001338 9165140612 9165140616 9165140616 9165140616 9166140614
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-22100

RX6#,TX62

 1
53202-22160

RX60..EUR,GEN,ME

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-22110

LX60,MX62,RX6#,TX62

 1
53203-22140

GX6#,LX60,MX62,RX60..ARL,EUR,GEN,ME

 1
53208 - SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER
53205-22020

LX60,MX62,RX6#,TX62

 1
53205-22021

GX6#,LX60,MX62,RX60,TX62

 1
53209 - BRACE SUB-ASSY, HOOD LOCK
53217-22060

LX60,MX62,RX6#,TX62

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-22907

MX62,RX60

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-22909

LX60,RX60..EUR,GEN,SA

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-22210

RX60..EUR

W/URETHANE BUMPER

 1
53710-22211

RX60..LHD

W/URETHANE BUMPER

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-22240

RX60..LHD..EUR

W/URETHANE BUMPER

 1
53720-22210

LX60,RX60..LHD..(DLX,GL)

W/URETHANE BUMPER

 1
53733A - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT
53733-22040

GX6#,LX60,MX62,RX6#,TX62

RH

 1
53734-22040

GX6#,LX60,MX62,RX6#,TX62

LH

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-22030

GX6#,LX60,MX62,RX6#,TX62

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-22030

GX6#,LX60,MX62,RX6#,TX62

 1
55101 - PANEL SUB-ASSY, DASH
55101-22470

LX60,RX60..LHD

 1
55101 - PANEL SUB-ASSY, DASH
55101-22470

LX60,RX60..LHD

 1
55113 - PLATE, CLUTCH PEDAL SUPPORT MOUNTING
55113-22010

LX60,RX60..LHD..MTM

 1
55161 - BRACKET, HEATER MOUNTING
55164-22020

GX6#,LX60,MX6#,RX6#,TX62

 1
55161 - BRACKET, HEATER MOUNTING
55164-22020

GX6#,LX60,MX6#,RX6#,TX62

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-22100

GX6#,LX60,RX60..LHD

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55212-22080

RX60..LHD..EUR

 1
57161 - CROSSMEMBER, FRONT
57104-22070

LX60,MX62,RX6#,TX62

 1
Common parts
90950-01006
90950-01025
90950-01047
90950-01056
90950-01058
90950-01060
90950-01061
90950-01065
90950-01084
90950-01122
90950-01184
90950-01217
90950-01247
90950-01256
90950-01338
91651-40612
91651-40616
91661-40614
Linked diagrams
5305
