RX60L-XEMNCC (1982)
Toyota Cressida
Production
Aug 1982
-
Aug 1983
Engine
21RC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

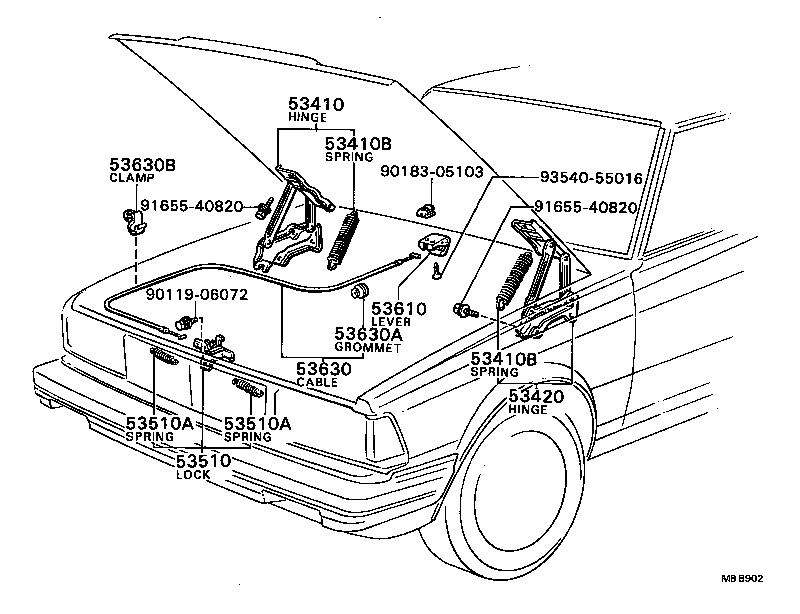

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-22040 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 53410B - SPRING, TENSION(FOR HOOD HINGE) | ||||
| 90506-58003 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 53410B - SPRING, TENSION(FOR HOOD HINGE) | ||||
| 90506-58003 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-22040 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-22130 |
GX6#,LX60,RX60..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
GX6#,LX60,MX6#,RX6#,TX62 WD=2.0,CW=17,CW=17,WD=2.0 |
1 | ||
| 90506-09008 |
GX6#,LX60,MX6#,RX6#,TX62 WD=0.9,CW=21.25,CW=21,WD=0.9 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
GX6#,LX60,MX6#,RX6#,TX62 WD=2.0,CW=17,CW=17,WD=2.0 |
1 | ||
| 90506-09008 |
GX6#,LX60,MX6#,RX6#,TX62 WD=0.9,CW=21.25,CW=21,WD=0.9 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53601-3003006 |
GX6#,LX60,MX6#,RX6#,TX62 D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 53601-3003004 |
LX60,MX62,RX6#,TX62 BLUE,BLUE,TRIM8# |
1 | ||
| 53601-3003001 |
LX60,MX62,RX6#,TX62 BLACK,BLACK,TRIM2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-22070 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90480-15194 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 69749-12010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90183-05103 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
