RX60L-XEMNCC (1982)
Toyota Cressida
Production
Aug 1982
-
Aug 1983
Engine
21RC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

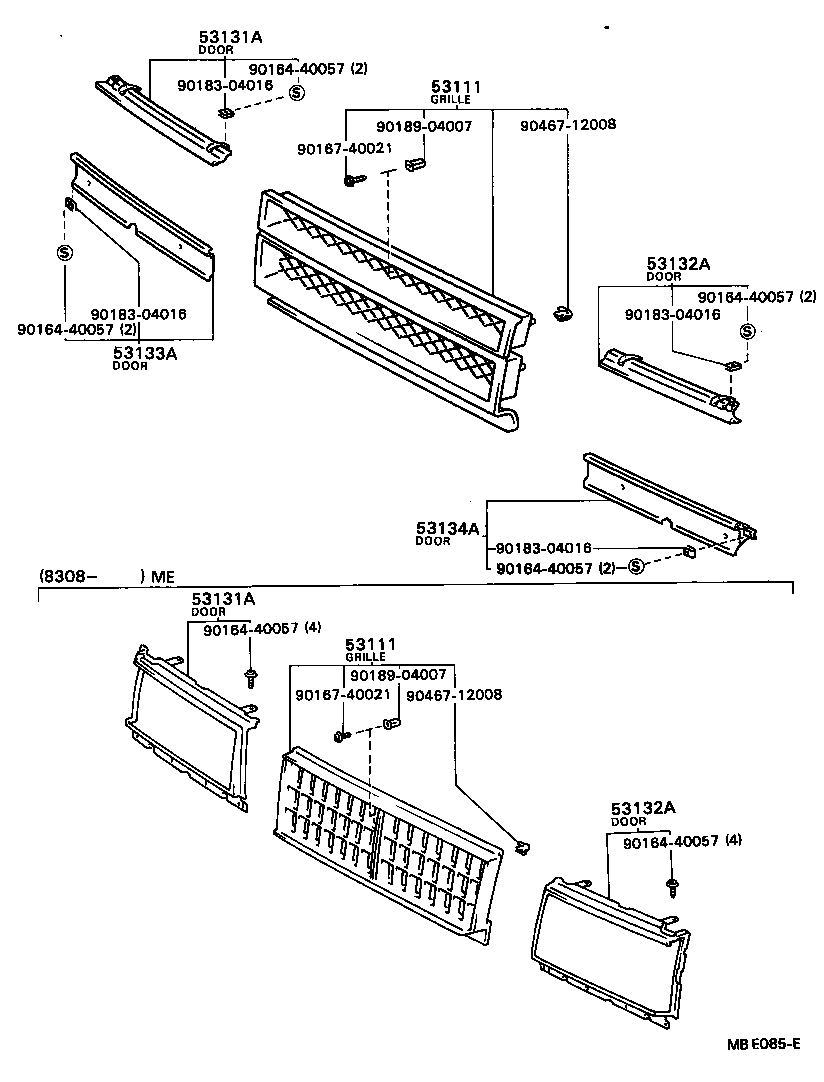

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53100-29145 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 53100-29215 |
GX6#,LX60,MX62,RX60,TX62 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53100-29145 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 53100-29215 |
GX6#,LX60,MX62,RX60,TX62 |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-29275 |
LX60,RX60..EUR W/HEADLAMP CLEANER |
1 | ||
| 53131-29335 |
GX6#,LX60,MX62,RX60,TX62 |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-29275 |
LX60,RX60..EUR W/HEADLAMP CLEANER |
1 | ||
| 53131-29335 |
GX6#,LX60,MX62,RX60,TX62 |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-29315 |
GX6#,LX60,MX62,RX60,TX62 |
1 | ||
| 53132-29255 |
LX60,RX60..EUR W/HEADLAMP CLEANER |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-29315 |
GX6#,LX60,MX62,RX60,TX62 |
1 | ||
| 53132-29255 |
LX60,RX60..EUR W/HEADLAMP CLEANER |
1 | ||
| 53133A - DOOR, HEADLAMP, LOWER RH | ||||
| 53133-29015 |
GX6#,LX60,MX62,RX60,TX62 |
1 | ||
| 53134A - DOOR, HEADLAMP, LOWER LH | ||||
| 53134-29015 |
GX6#,LX60,MX62,RX60,TX62 |
1 | ||
| Common parts | ||||
| 90164-40057 | ||||
| 90167-40021 | ||||
| 90183-04016 | ||||
| 90189-04007 | ||||
| 90467-12008 | ||||
