RX60L-XEMNCC (1982)

Toyota Cressida

Production Aug 1982 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )RX60..EUR

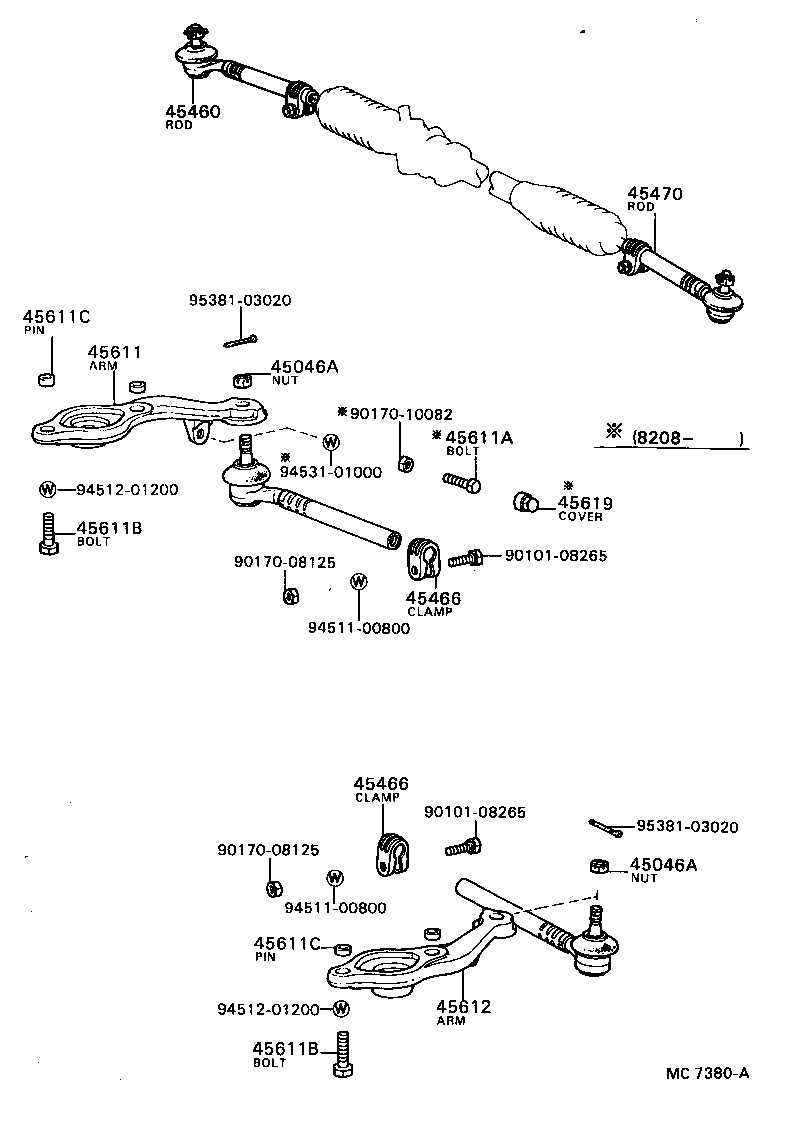

Click highlighted areas on diagram

diagram 45046A 45046A 45460 45466 45466 45470 45611 45611A 45611B 45611B 45611C 45611C 45612 45619 9010108265 9010108265 9017008125 9017008125 9017010082 9451100800 9451100800 9451201200 9451201200 9453101000 9538103020 9538103020
Part # Description Qty Price
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

GX6#,LX60,MX6#,RX6#,TX62

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

GX6#,LX60,MX6#,RX6#,TX62

 2
45460 - ROD ASSY, TIE, RH
45460-29205

RX60..EUR

 1
45466 - CLAMP, TIE ROD END
45466-22010

GX6#,LX60,MX6#,RX6#,TX62

 4
45466 - CLAMP, TIE ROD END
45466-22010

GX6#,LX60,MX6#,RX6#,TX62

 4
45470 - ROD ASSY, TIE, LH
45460-29205

RX60..EUR

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-22070

RX60..EUR

 1
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12379

GX6#,LX60,MX6#,RX6#,TX62

 4
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12379

GX6#,LX60,MX6#,RX6#,TX62

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016

GX6#,LX60,MX6#,RX6#,TX62

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016

GX6#,LX60,MX6#,RX6#,TX62

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-22070

RX60..EUR

 1
Common parts
90101-08265
90170-08125
90170-10082
94511-00800
94512-01200
94531-01000
95381-03020
