RX60L-XEMNCC (1982)

Toyota Cressida

Production Aug 1982 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8301)RX60..GL ; (8009- )RX60..LHD..GEN; (8301- )RX60..ME

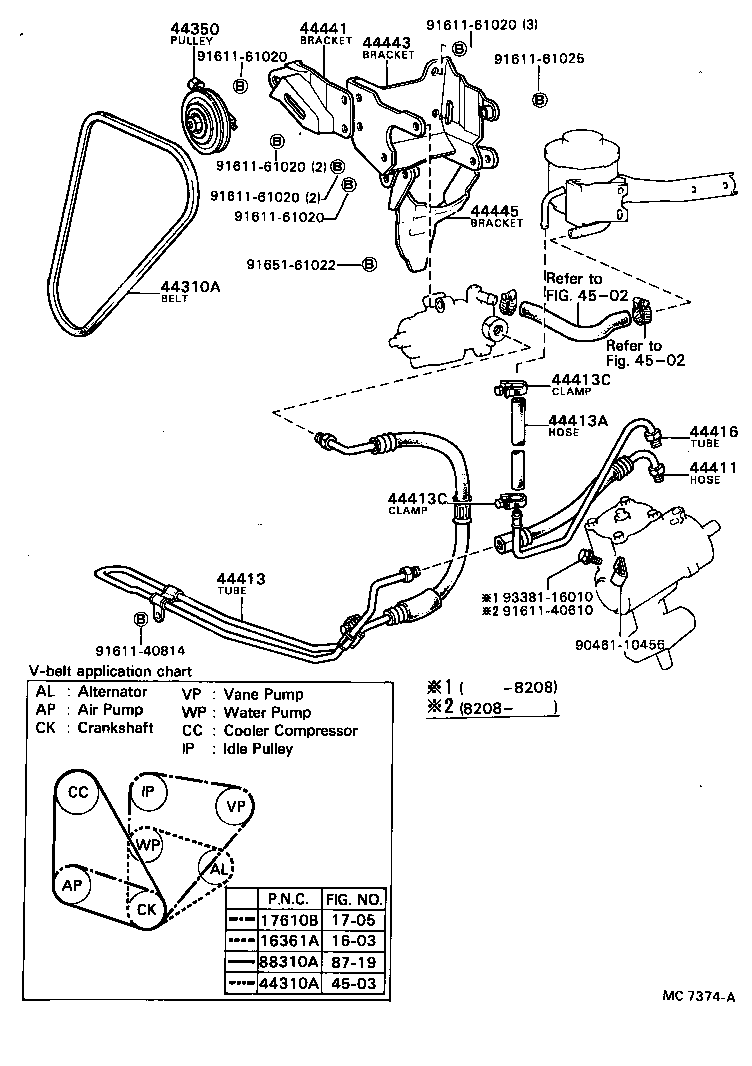

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 44310A 44310A 44350 44411 44413 44413A 44413C 44413C 44416 44441 44443 44445 4502 4502 4503 8719 88310A 9046110456 9161140610 9161140814 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9165161022 9338116010
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

21R#..RX60

L=880

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

21RC..RX60

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00890

RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)

 1
Common parts
90461-10456
91611-40610
91611-40814
91611-61020
91611-61025
91651-61022
93381-16010
Linked diagrams
1603
1705
4502
4503
8719
