RX60L-XEMNCC (1982)

Toyota Cressida

Production Aug 1982 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )21R#

Click highlighted areas on diagram

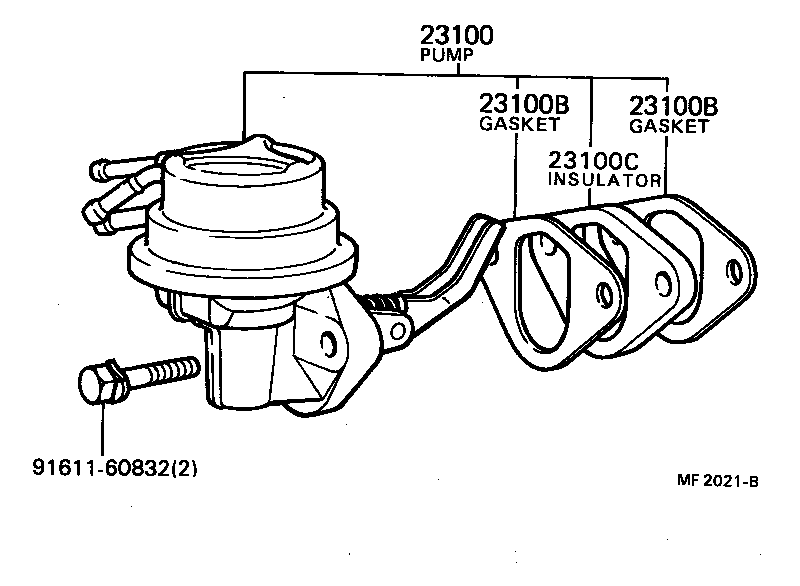

diagram 23100 23100B 23100B 23100C 9161160832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39345

21R#..RX60

 1
23100B - GASKET, FUEL PUMP
90923-05005

21R#,18R..RX6#

 2
23100B - GASKET, FUEL PUMP
90923-05005

21R#,18R..RX6#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

21R#,18R..RX6#

 1
Common parts
91611-60832
