RX60L-XEMNCC (1982)

Toyota Cressida

Production Aug 1982 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )L

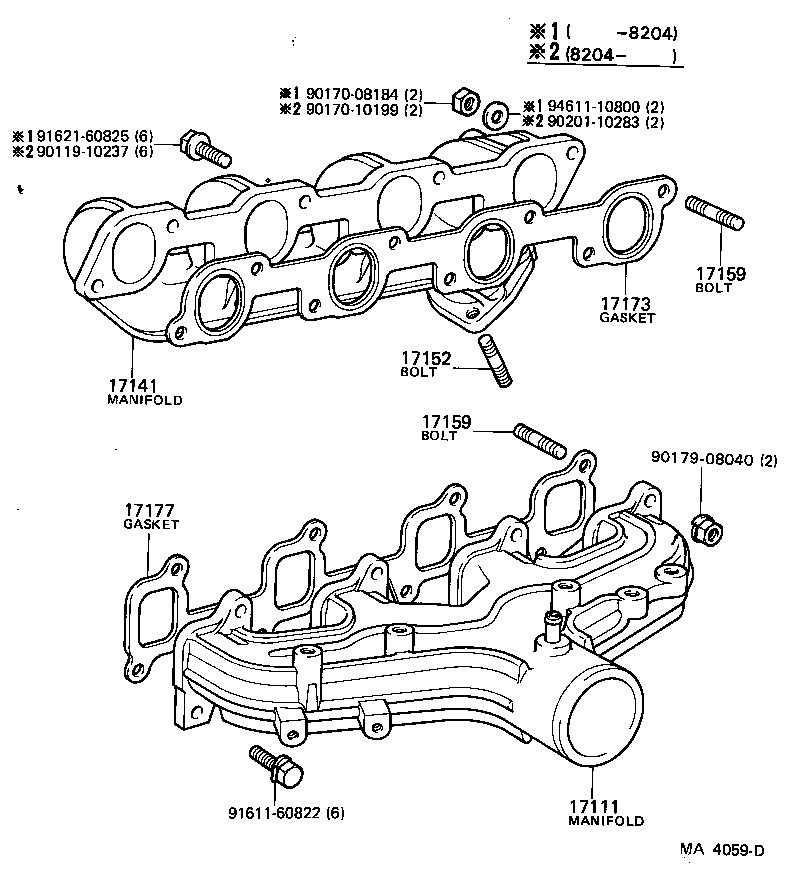

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17173 17177 9011910237 9017008184 9017010199 9017908040 9020110283 9161160822 9162160825 9461110800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-37010

21R#..RX60

 1
17141 - MANIFOLD, EXHAUST
17141-38021

21RC..RX60

 1
17141-37030

21R..RX60

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

21R#..RX60

L=39,S=15&15

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RX60

L=42,S=12&25

 4
90116-10317

21R#..RX60

L=36,S=13&13

 3
90116-08013

21R#..RX60

L=34.5,S=9&16

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RX60

L=42,S=12&25

 4
90116-10317

21R#..RX60

L=36,S=13&13

 3
90116-08013

21R#..RX60

L=34.5,S=9&16

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-38011

21R..RX60

 1
17177-38021

21RC..RX60

 1
Common parts
90119-10237
90170-08184
90170-10199
90179-08040
90201-10283
91611-60822
91621-60825
94611-10800

(8208- )21RC

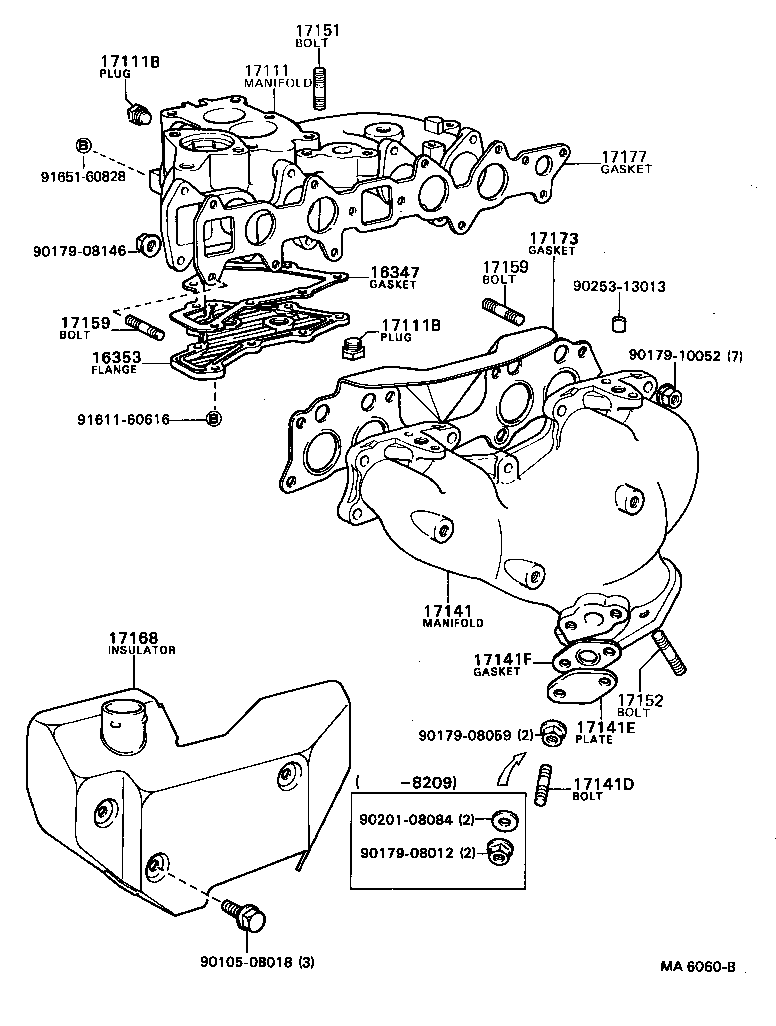

Click highlighted areas on diagram

diagram 16347 16353 17111 17111B 17111B 17141 17141D 17141E 17141F 17151 17152 17159 17159 17168 17173 17177 9010508018 9017908012 9017908059 9017908146 9017910052 9020108084 9025313013 9161160616 9165160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-37010

21R#..RX60

 1
16353 - FLANGE, WATER BY-PASS
16353-37010

21R#..RX60

 1
17111 - MANIFOLD, INTAKE
17111-37010

21R#..RX60

 1
17111B - PLUG, NO.2
90345-53007

21R#..RX60

 3
17111B - PLUG, NO.2
90345-53007

21R#..RX60

 3
17141 - MANIFOLD, EXHAUST
17141-38021

21RC..RX60

 1
17141-37030

21R..RX60

 1
17141E - PLATE, EXHAUST MANIFOLD
17148-41010

21RC..RX60

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-30010

21RC..RX60

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

21R#..RX60

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

21R#..RX60

L=39,S=15&15

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RX60

L=42,S=12&25

 4
90116-10317

21R#..RX60

L=36,S=13&13

 3
90116-08013

21R#..RX60

L=34.5,S=9&16

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RX60

L=42,S=12&25

 4
90116-10317

21R#..RX60

L=36,S=13&13

 3
90116-08013

21R#..RX60

L=34.5,S=9&16

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37020

21R#..RX60

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-38011

21R..RX60

 1
17177-38021

21RC..RX60

 1
Common parts
90105-08018
90179-08012
90179-08059
90179-08146
90179-10052
90201-08084
90253-13013
91611-60616
91651-60828
