RX60L-XEMDCC (1980)
Toyota Cressida

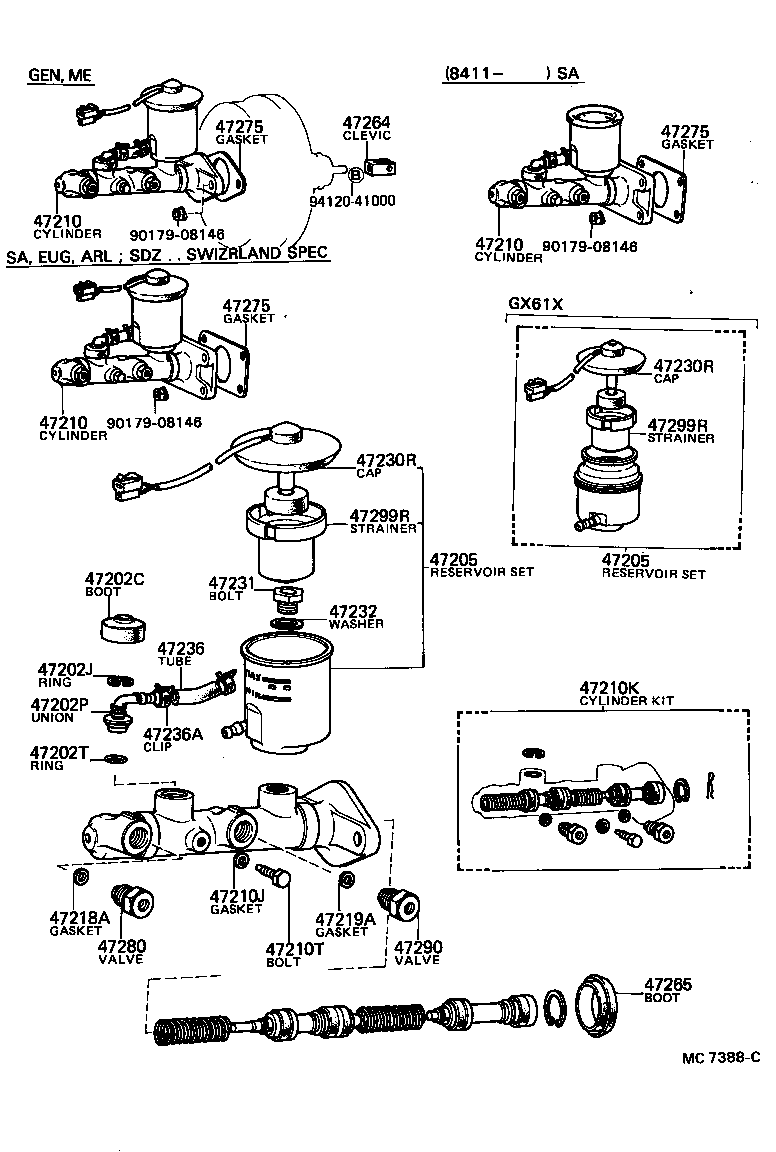

(8009- )GX6#,LX60,MX6#,RX62,TX62 ; (8009-)RX60..LHD..3H,4F,4FC,4H,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 90405-10125 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 90430-06104 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-20110 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 04493-20110 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 90109-06008 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-20010 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47231-20010 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47234-14010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 90467-16001 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47264-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47265-20050 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
(8009- )RX60..RHD ; (8009- )LHD..3FC..GL ;(8009- )LHD..3FC..DLX..EUG ; (8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 90405-10125 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 90430-06104 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-20110 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 04493-20110 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 90109-06008 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-20010 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47231-20010 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47234-14010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 90467-16001 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47264-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47265-20050 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||

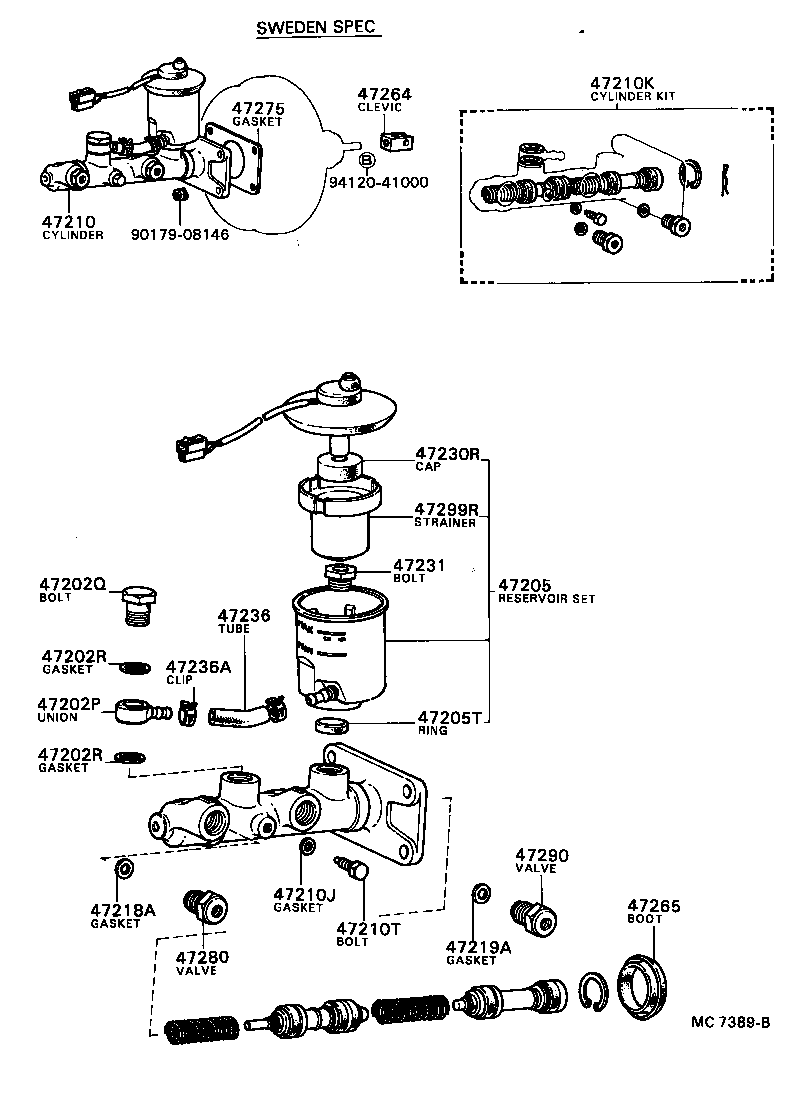

(8009-8208)SDN ; (8208- )SDZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
2 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-12260 |
RX60..SDN,SDZ |
1 | ||
| 47205T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2) | ||||
| 90562-18151 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-22390 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-20110 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 84460-12030 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-20010 |
RX60..DLX..(SDN,SDZ) SWEDEN SPEC |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
GX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20010 |
LX60,MX62,RX60 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
