RX60L-XEJDSV (1981)

Toyota Cressida

Production Aug 1981 - Jul 1984
Engine 21R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)SED ; (8209- )TX62

Click highlighted areas on diagram

diagram 52055 52107 52107 52108 52108 52151 52151 52151C 52151C 52152B 52152B 52153B 52153B 9017906007 9017906007 9017906007 9017906007 9017906007 9017908123 9017908123 9017908123 9017908123 9017908123 9165561230 9165561230 9165561230 9165561230 9166540616 9166540616 9166540616 9166540616
Part # Description Qty Price
Common parts
90179-06007
90179-08123
91655-61230
91665-40616

(8009-8208)SED

Click highlighted areas on diagram

diagram 5102 52023 52155A 52156A 52159 52561 52565A 52615 52705 52705B 52723 52724 9011914002 9017906007 9017906007 9018303001 9046804011 9046804011 9161561225 9165540618 9166540616
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-22090

GX60,RX60..SED..ME

 1
52023-22051

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-22080

GX60,RX60..SED..ME

 1
52155-22050

LX60,MX62,RX60..DLX,GL

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-22070

LX60,MX62,RX60..DLX,GL

 1
52156-22100

GX60,RX60..SED..ME

 1
52159 - COVER, REAR BUMPER
52159-22021

LX60,MX62,RX60..DLX,GL

 1
52159-22080

GX60,RX60..SED..ME

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52521-22040

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52521-22060

GX60,RX60..SED..ME

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-22050

GX60,RX60..SED..ME

 1
52615-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52705 - MOULDING SUB-ASSY, REAR BUMPER
52705-22010

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52751-22050

GX60,RX60..SED..ME

 1
52723 - MOULDING, REAR BUMPER EXTENSION, RH
52723-22011

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52724 - MOULDING, REAR BUMPER EXTENSION, LH
52724-22010

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
Common parts
90119-14002
90179-06007
90183-03001
90468-04011
91615-61225
91655-40618
91665-40616
Linked diagrams
5102

(8208- )SED..ME

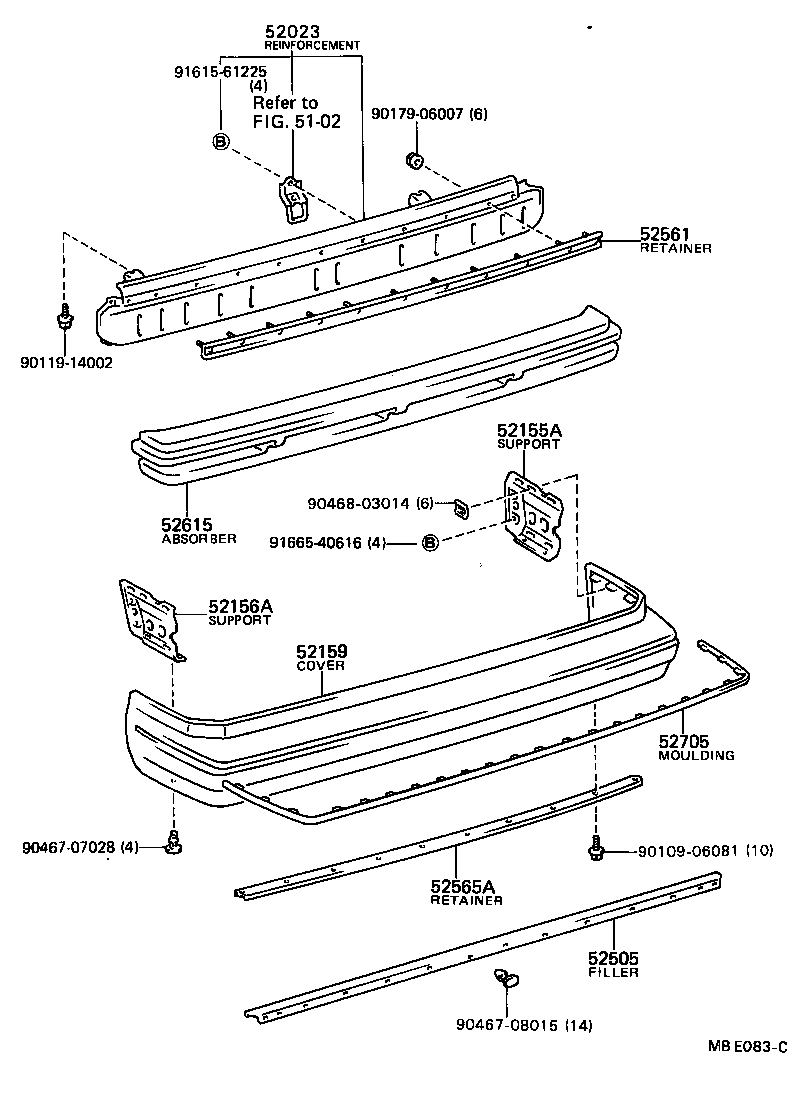

Click highlighted areas on diagram

diagram 5102 52023 52155A 52156A 52159 52505 52561 52565A 52615 52705 9010906081 9011914002 9017906007 9046707028 9046708015 9046803014 9161561225 9166540616
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-22090

GX60,RX60..SED..ME

 1
52023-22051

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-22080

GX60,RX60..SED..ME

 1
52155-22050

LX60,MX62,RX60..DLX,GL

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-22070

LX60,MX62,RX60..DLX,GL

 1
52156-22100

GX60,RX60..SED..ME

 1
52159 - COVER, REAR BUMPER
52159-22021

LX60,MX62,RX60..DLX,GL

 1
52159-22080

GX60,RX60..SED..ME

 1
52505 - FILLER SUB-ASSY, REAR BUMPER
52551-22050

GX60,RX60..SED..ME

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52521-22040

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52521-22060

GX60,RX60..SED..ME

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-22050

GX60,RX60..SED..ME

 1
52615-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52705 - MOULDING SUB-ASSY, REAR BUMPER
52705-22010

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52751-22050

GX60,RX60..SED..ME

 1
Common parts
90109-06081
90119-14002
90179-06007
90467-07028
90467-08015
90468-03014
91615-61225
91665-40616
Linked diagrams
5102
