RX35L-WKDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)

Click highlighted areas on diagram

diagram 5501 86022 86022 86202B 86260 86265 86265 86266 86266 86267 86267 86268 9011906113 9331915008 9331915008 9331915008 9331915008 9331915008 9354015010 9354055012 9356654516 9356654516
Part # Description Qty Price
86022 - PARTS SET, TAPE PLAYER SETTING
86022-22020

MX3#,RX3#..3FC,4F,5F

 1
86022 - PARTS SET, TAPE PLAYER SETTING
86022-22020

MX3#,RX3#..3FC,4F,5F

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-22060

MX3#,RX3#..3FC,4F,5F

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-22060

MX3#,RX3#..3FC,4F,5F

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86266-22040

MX3#,RX3#..3FC,4F,5F

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86266-22040

MX3#,RX3#..3FC,4F,5F

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86265-22050

MX3#,RX3#..3FC,4F,5F

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86265-22050

MX3#,RX3#..3FC,4F,5F

 1
Common parts
90119-06113
93319-15008
93540-15010
93540-55012
93566-54516
Linked diagrams
5501

(7612-8008)MX36,RX35

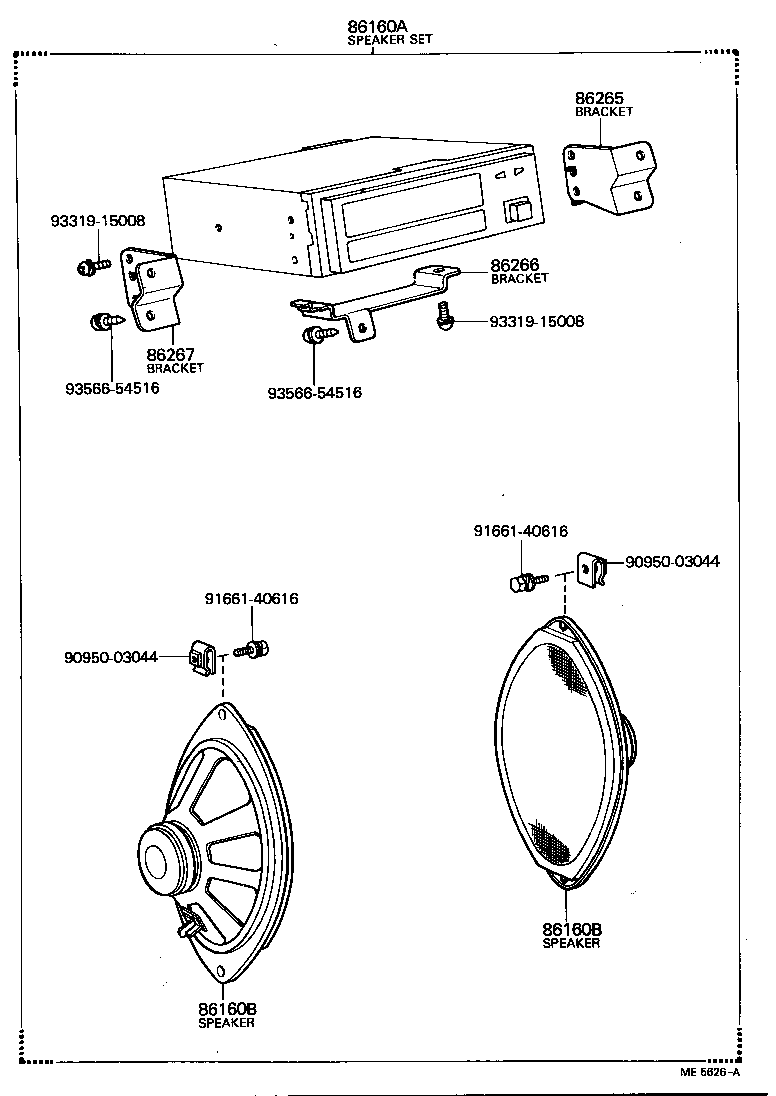

Click highlighted areas on diagram

diagram 86160A 86160B 86160B 86265 86266 86267 9095003044 9095003044 9166140616 9166140616 9331915008 9331915008 9356654516 9356654516
Part # Description Qty Price
86160A - SPEAKER SET, FRONT
86160-29065

MX36,RX35

 1
86160B - SPEAKER ASSY, REAR
86160-23010

MX36,RX35

 2
86160B - SPEAKER ASSY, REAR
86160-23010

MX36,RX35

 2
86265 - BRACKET, TAPE PLAYER, NO.1
86265-22060

MX3#,RX3#..3FC,4F,5F

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86266-22040

MX3#,RX3#..3FC,4F,5F

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86265-22050

MX3#,RX3#..3FC,4F,5F

 1
Common parts
90950-03044
91661-40616
93319-15008
93566-54516
