RX30R-EMDN (1978)
Toyota Cressida
Production
Aug 1978
-
Aug 1980
Engine
18R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)RHD

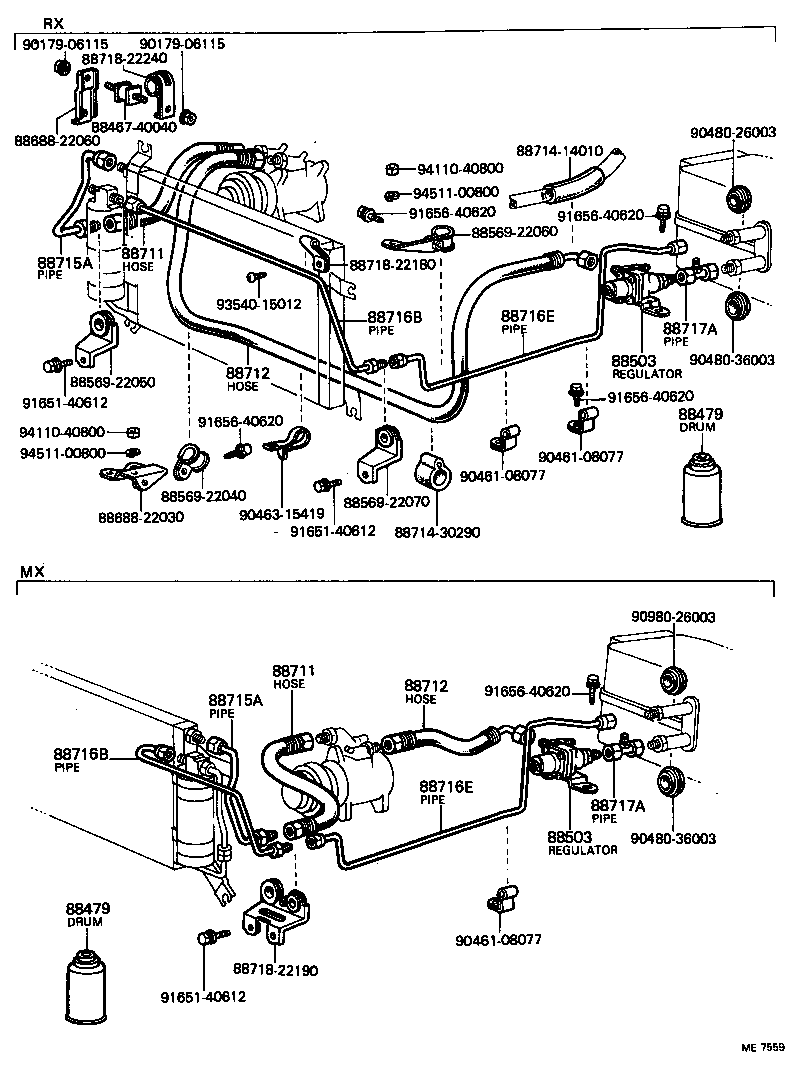

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX3#,RX3# 400G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX3#,RX3# 400G |
2 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22030 |
MX3#,RX3#..RHD |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22030 |
MX3#,RX3#..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22120 |
RX3#..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22120 |
RX3#..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22130 |
RX3#..RHD |
1 | ||
| 88712-22160 |
RX3#..RHD W/BOOST VENTILATOR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22130 |
RX3#..RHD |
1 | ||
| 88712-22160 |
RX3#..RHD W/BOOST VENTILATOR |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-22050 |
RX3# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-22050 |
RX3# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22250 |
RX3#..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22250 |
RX3#..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22200 |
MX3#,RX3#..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22200 |
MX3#,RX3#..RHD |
1 | ||
| Common parts | ||||
| 88467-40040 | ||||
| 88569-22040 | ||||
| 88569-22050 | ||||
| 88569-22060 | ||||
| 88569-22070 | ||||
| 88688-22030 | ||||
| 88688-22060 | ||||
| 88714-14010 | ||||
| 88714-30290 | ||||
| 88718-22180 | ||||
| 88718-22190 | ||||
| 88718-22240 | ||||
| 90179-06115 | ||||
| 90461-08077 | ||||
| 90463-15419 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 90980-26003 | ||||
| 91651-40612 | ||||
| 91656-40620 | ||||
| 93540-15012 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(7612-8008)

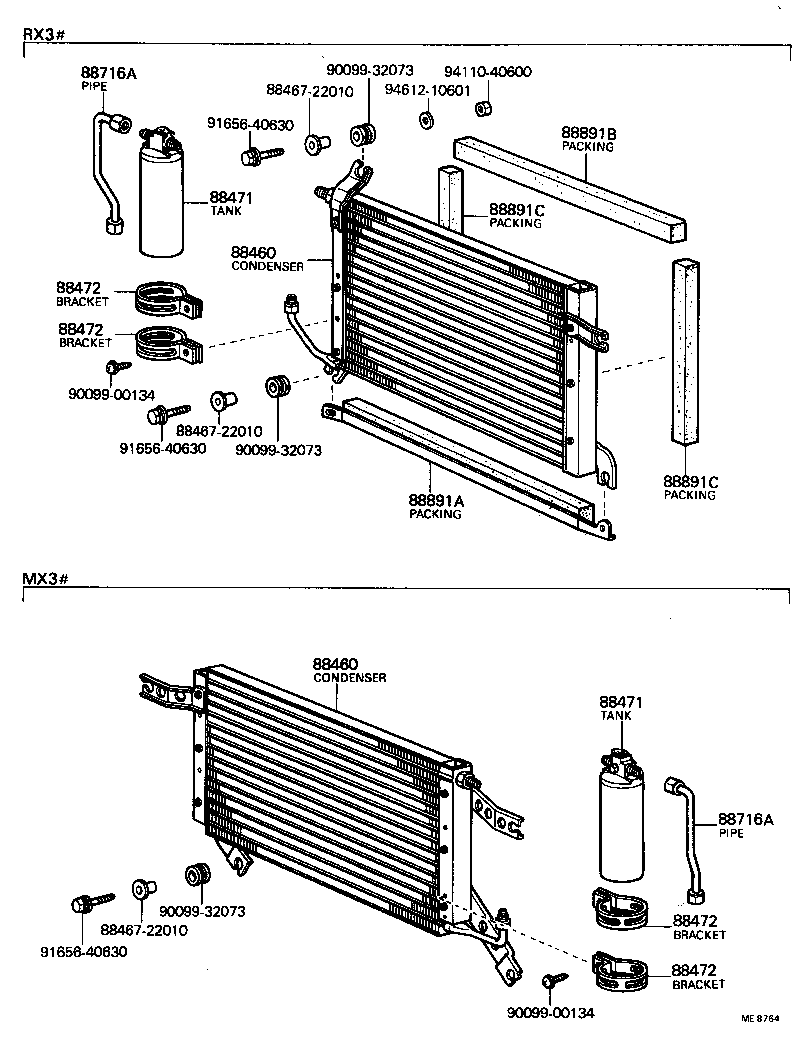

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22100 |
RX3# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22100 |
RX3# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-22010 |
RX3# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-22010 |
RX3# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-22010 |
MX3#,RX3# |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-22010 |
MX3#,RX3# |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-22010 |
MX3#,RX3# |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-22010 |
MX3#,RX3# |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22260 |
RX3# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22260 |
RX3# |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88688-22050 |
RX3# |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-22060 |
RX3# |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-22070 |
RX3# |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-22070 |
RX3# |
2 | ||
| Common parts | ||||
| 88467-22010 | ||||
| 90099-00134 | ||||
| 90099-32073 | ||||
| 91656-40630 | ||||
| 94110-40600 | ||||
| 94612-10601 | ||||
