RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)

Click highlighted areas on diagram

diagram 5502 5502 87174 87201 87211 87212 87213 87214 87215 87281 87282 9015950190 9018305094 9354015016 9354015016 9356614514 9356614514 9356614514 9359056014 9359056014
Part # Description Qty Price

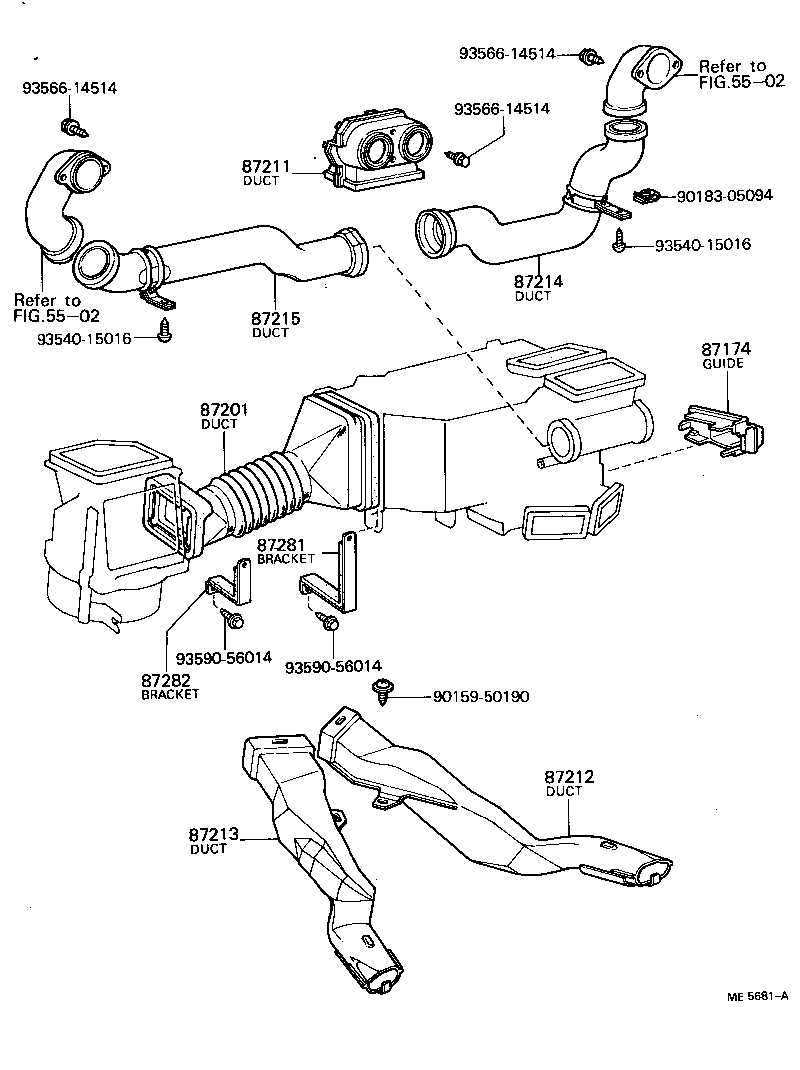

87174 - GUIDE, AIR DUCT
87174-22010

MX3#,RX3#,TX30..RHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-22040

MX3#,RX3#,TX30..RHD

 1
87211 - DUCT, AIR, NO.1
55088-22010

MX3#,RX3#,TX30..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87202-22010

MX3#,RX3#..DLX,GL,SDX

 1
87202-22011

MX3#,RX3#..DLX,GL,SDX

 1
87213 - DUCT, AIR, REAR NO.2
87203-22020

MX3#,RX3#..DLX,GL,SDX

 1
87203-22021

MX3#,RX3#..DLX,GL,SDX

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-22010

MX3#,RX3#,TX30..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-22020

MX3#,RX3#,TX30..RHD

 1
87281 - BRACKET, AIR DUCT
87214-22020

MX3#,RX3#,TX30

 1
87282 - BRACKET, AIR DUCT
87214-22010

MX3#,RX3#,TX30

 1
Common parts
90159-50190
90183-05094
93540-15016
93566-14514
93590-56014
Linked diagrams
5502

(7612-8008)

Click highlighted areas on diagram

diagram 55903 55905 55905 55906 55907 55910 5592220030 5592220030 5592220030 5593122020 5593314010 5593314010 5593314010 5593322020 55937 55937 55937 55937 5594122010 8302 8401 8714 87284 9016040008 9016040008 9018304072 9020207104 9020207104 9020207104 9020207104 9048013006 9331514008 9356654514 9616000500 9616000500 9616000500
Part # Description Qty Price

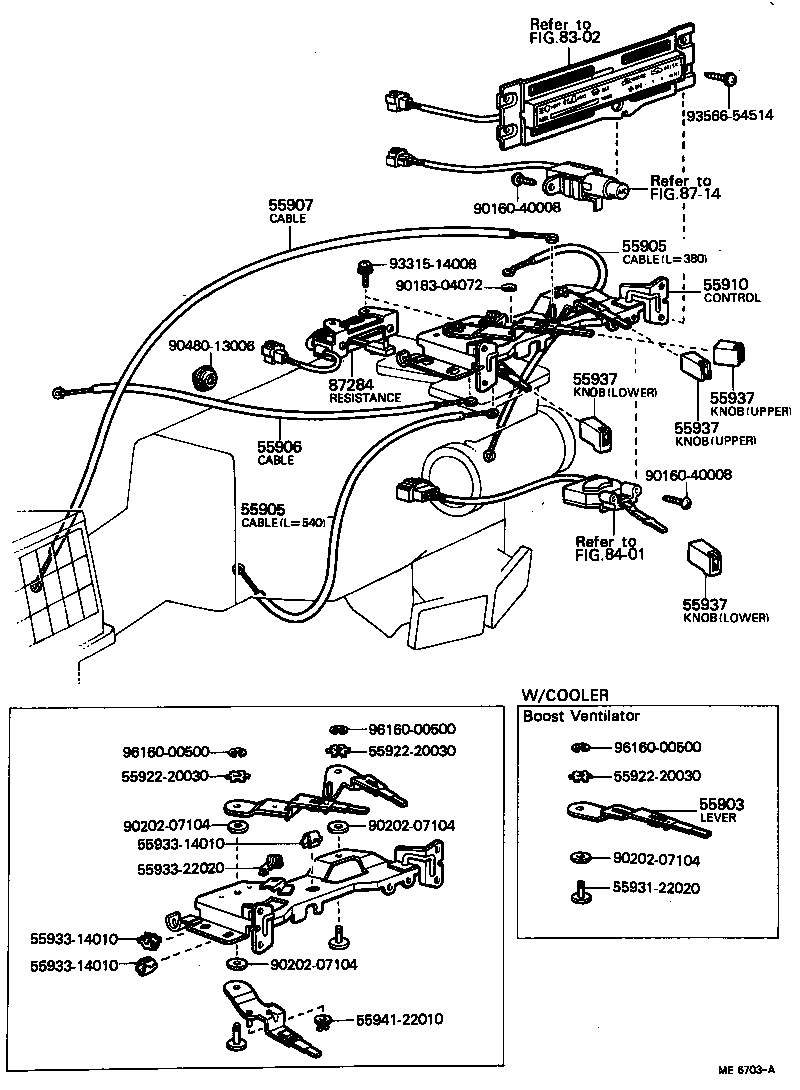

55905 - CABLE SUB-ASSY, DEFROST CONTROL
55907-22040

MX3#,RX3#,TX30

L=540

 1
55906-22040

MX3#,RX3#,TX30

L=380

 1
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55907-22040

MX3#,RX3#,TX30

L=540

 1
55906-22040

MX3#,RX3#,TX30

L=380

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55907-22050

MX3#,RX3#..RHD

L=490

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55908-22020

MX3#,RX3#,TX30

L=820

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-22917

MX3#,RX3#,TX30..RHD

W/HEATER

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-22060

MX3#,RX3#,TX30

FOR UPPER

 2
55905-22050

MX3#,RX3#,TX30

FOR LOWER

 2
55937 - KNOB, HEATER CONTROL LEVER
55905-22060

MX3#,RX3#,TX30

FOR UPPER

 2
55905-22050

MX3#,RX3#,TX30

FOR LOWER

 2
55937 - KNOB, HEATER CONTROL LEVER
55905-22060

MX3#,RX3#,TX30

FOR UPPER

 2
55905-22050

MX3#,RX3#,TX30

FOR LOWER

 2
55937 - KNOB, HEATER CONTROL LEVER
55905-22060

MX3#,RX3#,TX30

FOR UPPER

 2
55905-22050

MX3#,RX3#,TX30

FOR LOWER

 2
87284 - RESISTOR SUB-ASSY, VARIABLE
88622-22050

RX3#..RHD

W/BOOST VENTILATOR

 1
Common parts
55922-20030
55931-22020
55933-14010
55933-22020
55941-22010
90160-40008
90183-04072
90202-07104
90480-13006
93315-14008
93566-54514
96160-00500
