RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)

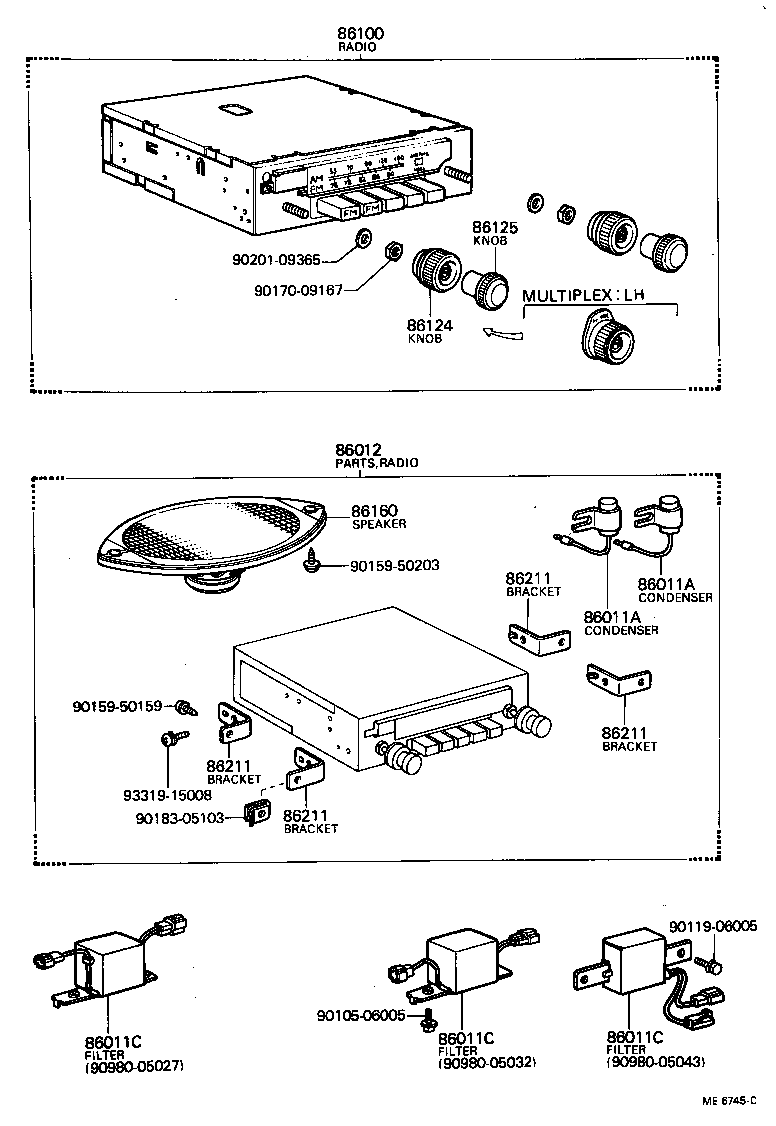

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86011C 86011C 86012 86100 86124 86125 86160 86211 86211 86211 86211 9010506005 9011906005 9015950159 9015950203 9017009167 9018305103 9020109365 9098005027 9098005032 9098005043 9331915008
Part # Description Qty Price
86100 - RADIO ASSY
86100-22141

RX3#..DLX,STD

AM 5-BUTTON

 1
86100-22142

MX3#,RX3#..DLX,SDX,STD

AM 5-BUTTON

 1
Common parts
90105-06005
90119-06005
90159-50159
90159-50203
90170-09167
90183-05103
90201-09365
90980-05027
90980-05032
90980-05043
93319-15008
