RX30R-EMDN (1978)
Toyota Cressida
Production
Aug 1978
-
Aug 1980
Engine
18R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)MX3#,RX3#..RHD

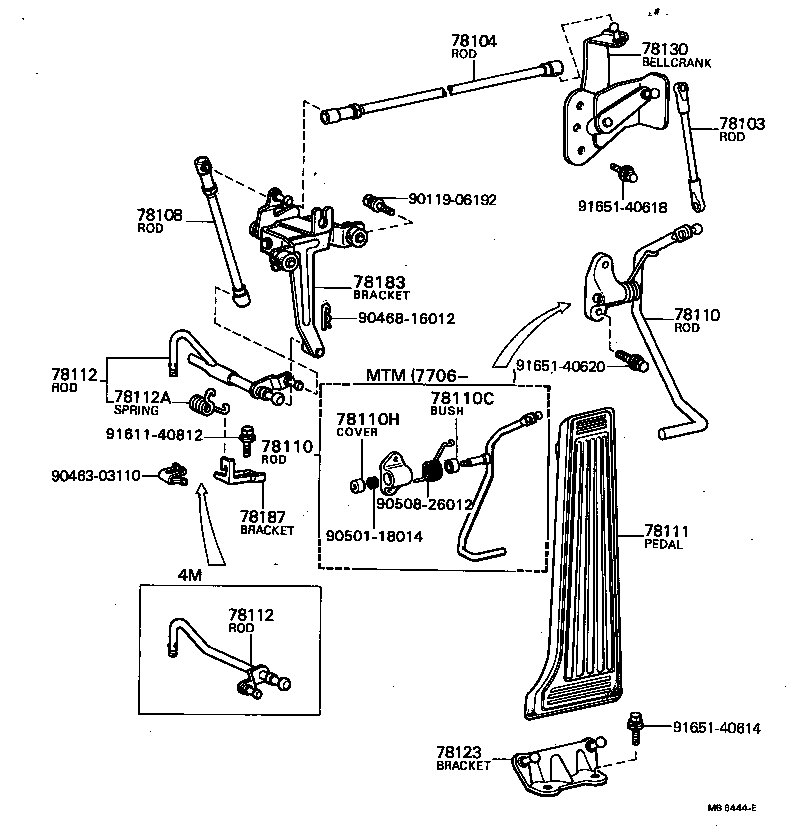

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-22060 |
MX3#,RX3#..RHD |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22120 |
MX3#,RX3#..RHD |
1 | ||
| 78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 | ||||
| 78105-22230 |
RX3#..RHD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22040 |
MX3#,RX3#..RHD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22040 |
MX3#,RX3#..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30060 |
MX3#,RX3#,TX30..RHD |
1 | ||
| 78112 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 | ||||
| 78106-22080 |
RX3#..SA |
1 | ||
| 78106-22081 |
RX3#..RHD |
1 | ||
| 78106-22080 |
RX3#..RHD |
1 | ||
| 78112 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 | ||||
| 78106-22080 |
RX3#..SA |
1 | ||
| 78106-22081 |
RX3#..RHD |
1 | ||
| 78106-22080 |
RX3#..RHD |
1 | ||
| 78112A - SPRING (FOR ACCELRATOR CONNECTING ROD) | ||||
| 90508-14341 |
RX3# |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-22020 |
MX3#,RX3#,TX30..RHD |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-22070 |
MX3#,RX3#..RHD |
1 | ||
| 78183 - BRACKET, ACCELERATOR LINK ROD | ||||
| 78170-22030 |
RX3#..RHD |
1 | ||
| 78187 - BRACKET, ACCELERATOR PULL BACK SPRING | ||||
| 78187-20040 |
RX3# |
1 | ||
| Common parts | ||||
| 90119-06192 | ||||
| 90463-03110 | ||||
| 90468-16012 | ||||
| 90501-18014 | ||||
| 90508-26012 | ||||
| 91611-40812 | ||||
| 91651-40614 | ||||
| 91651-40618 | ||||
| 91651-40620 | ||||
