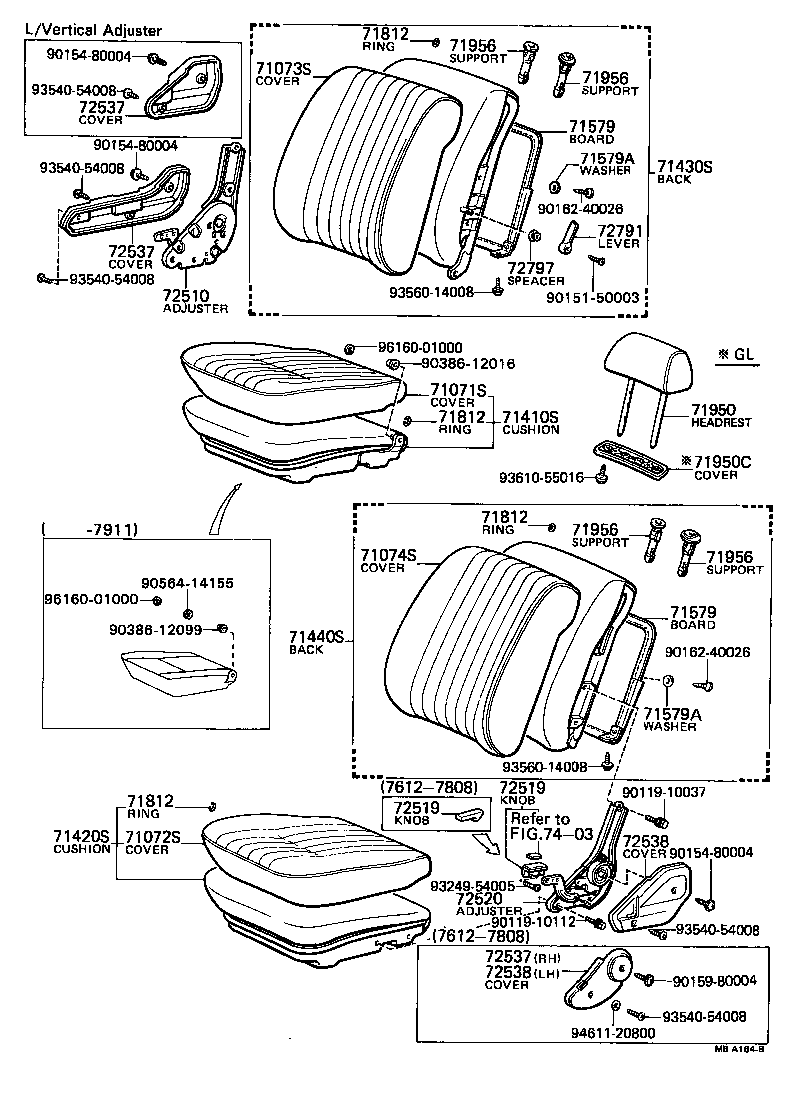

RX30R-EMDN (1978)
Toyota Cressida
(7612-8008)SED,WG..RHD..3FC,4F,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2233001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2233005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2233003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2237102 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2237105 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2237101 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2213003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2213001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-2213005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2216105 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2216101 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-2216102 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2245003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2245001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2245005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2248102 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2248105 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2248101 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2249003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2249001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2245105 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2249005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2245102 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2245101 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2241001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2241003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2241005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2241101 |
RX30..5F..GL..SA;MX32,RX3#..RHD..(3FC,4F,5F)..(DLX,SDX)..(GEN,SA) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2241102 |
RX30..5F..GL..SA;MX32,RX3#..RHD..(3FC,4F,5F)..(DLX,SDX)..(GEN,SA) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2241105 |
RX30..5F..GL..SA;MX32,RX3#..RHD..(3FC,4F,5F)..(DLX,SDX)..(GEN,SA) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2241202 |
RX30..5F..GL..SA;RX3#..RHD..(3FC,4F,5F)..DLX..(GEN,SA) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2241201 |
RX30..5F..GL..SA;RX3#..RHD..(3FC,4F,5F)..DLX..(GEN,SA) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2241205 |
RX30..5F..GL..SA;RX3#..RHD..(3FC,4F,5F)..DLX..(GEN,SA) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2218003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2218005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2218101 |
RX30..5F..GL..SA;MX3#,RX3#..RHD..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-2218102 |
RX30..5F..GL..SA;MX3#,RX3#..RHD..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2218105 |
RX30..5F..GL..SA;MX3#,RX3#..RHD..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2218001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-2218202 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..DLX FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2218205 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..DLX FB.BEIGE,BEIGE,TRIM3# |
1 | ||
| 71420-2218201 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2255105 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..(DLX,SDX) FB.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2255101 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..(DLX,SDX) FB.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2255102 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..(DLX,SDX) FB.W/HEADREST,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2245101 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..(DLX,SDX) FB.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2245105 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..(DLX,SDX) FB.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2245102 |
RX30..5F..GL..SA;MX3#,RX3#..(SED,WG)..RHD..(3FC,4F,5F)..(DLX,SDX) FB.W/HEADREST,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2224003 |
MX32,RX3#..(DLX,SDX)..SA GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2224001 |
MX32,RX3#..(DLX,GL,SDX)..SA BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2224005 |
MX32,RX3#..(DLX,GL,SDX)..SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-2224002 |
MX32,RX3#..(DLX,GL,SDX)..SA DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
MX3#,RX3# L/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002002 |
MX3#,RX3# W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
MX3#,RX3# L/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002002 |
MX3#,RX3# W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
MX3#,RX3# L/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002002 |
MX3#,RX3# W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
MX3#,RX3# L/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002002 |
MX3#,RX3# W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-22050 |
MX3#,RX3#..(SED,WG)..(3FC,4F,5F) |
1 | ||
| 72510-20100 |
MX3#,RX3#,TX30..(SED,WG)..(3FC,4F,5F) |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005001 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72526-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72525-2005005 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004002 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004001 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005002 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004005 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. BEIGE,BEIGE,TRIM4# |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005001 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72526-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72525-2005005 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004002 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004001 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005002 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004005 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. BEIGE,BEIGE,TRIM4# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-22050 |
MX3#,RX3#..(SED,WG)..(3FC,4F,5F) |
1 | ||
| 72520-20110 |
MX3#,RX3#,TX30..(SED,WG)..(3FC,4F,5F) |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71821-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71821-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71821-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-2006002 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-2006001 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2006005 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71821-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71821-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71821-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-2006002 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-2006001 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2006005 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71821-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71821-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71821-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-2006002 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-2006001 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2006005 |
RX30..5F..GL..SA;MX32,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD)..(GEN,SA) L/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71822-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71812-2002001 |
MX3#,RX3#,TX30..(SED,WG)..RHD..(3FC,4F,5F) BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002005 |
MX3#,RX3#,TX30..(SED,WG)..RHD..(3FC,4F,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002002 |
MX3#,RX3#,TX30..(SED,WG)..RHD..(3FC,4F,5F) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71822-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71812-2002001 |
MX3#,RX3#,TX30..(SED,WG)..RHD..(3FC,4F,5F) BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002005 |
MX3#,RX3#,TX30..(SED,WG)..RHD..(3FC,4F,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002002 |
MX3#,RX3#,TX30..(SED,WG)..RHD..(3FC,4F,5F) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2201005 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-2201001 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72791-2201002 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-2201001 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72797-2201005 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72797-2201002 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90119-10037 | ||||
| 90119-10112 | ||||
| 90151-50003 | ||||
| 90154-80004 | ||||
| 90159-80004 | ||||
| 90162-40026 | ||||
| 90386-12016 | ||||
| 90386-12099 | ||||
| 90564-14155 | ||||
| 93249-54005 | ||||
| 93540-54008 | ||||
| 93560-14008 | ||||
| 93610-55016 | ||||
| 94611-20800 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
