RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)SED,WG

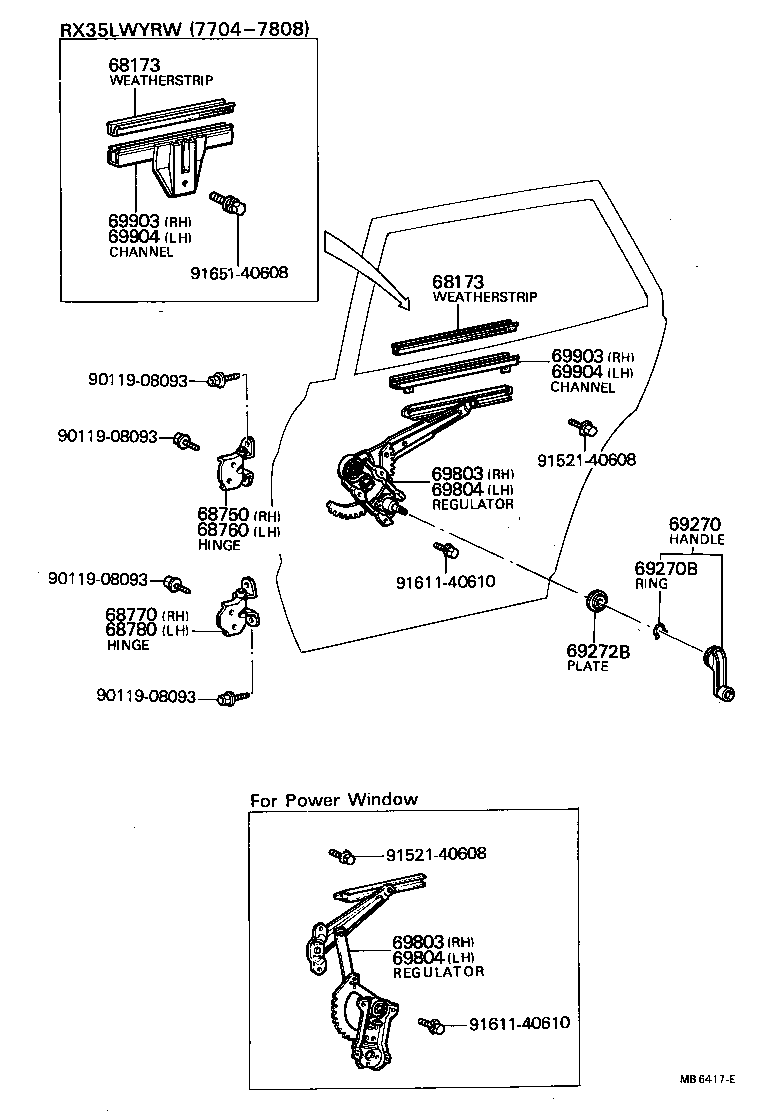

Click highlighted areas on diagram

diagram 68173 68173 68750 68760 68770 68780 69270 69270B 69272B 69803 69803 69804 69804 69903 69903 69904 69904 9011908093 9011908093 9011908093 9011908093 9152140608 9152140608 9161140610 9161140610 9165140608
Part # Description Qty Price
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
69975-22020

MX3#,RX3#,TX30..SED,WG

 2
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
69975-22020

MX3#,RX3#,TX30..SED,WG

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68710-22030

MX3#,RX3#,TX30..SED,WG

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68720-22020

MX3#,RX3#,TX30..SED,WG

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68730-22030

MX3#,RX3#,TX30..SED,WG

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68740-22030

MX3#,RX3#,TX30..SED,WG

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-2202005

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

BEIGE,BEIGE,TRIM4#

 2
69260-2202002

MX3#,RX3#,TX30..SED,WG

DARK WINE,RED/MAROON,TRIM3#

 2
69260-2202001

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

BLACK,BLACK,TRIM1#,2#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69272-30010

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-22030

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-22030

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-22030

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-22030

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-22020

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-22020

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-22020

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-22020

RX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG

 1
Common parts
90119-08093
91521-40608
91611-40610
91651-40608
