RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX32,RX30,TX30

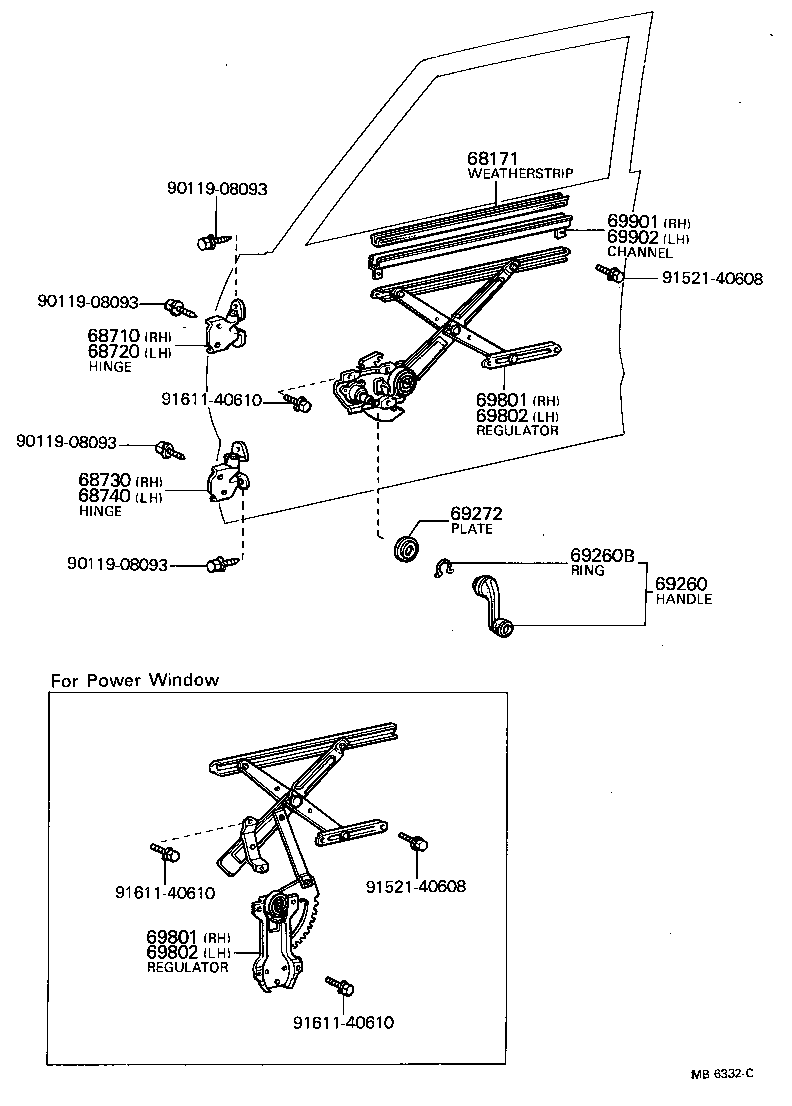

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 9011908093 9011908093 9011908093 9011908093 9152140608 9152140608 9161140610 9161140610 9161140610
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
69971-22010

MX3#,RX3#,TX30..SED,WG

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-22030

MX3#,RX3#,TX30

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-22020

MX3#,RX3#,TX30

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-22030

MX3#,RX3#,TX30

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-22030

MX3#,RX3#,TX30

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2202005

MX3#,RX3#,TX30

BEIGE,BEIGE,TRIM4#

 2
69260-2202002

MX3#,RX3#,TX30

DARK WINE,RED/MAROON,TRIM3#

 2
69260-2202001

MX3#,RX3#,TX30

BLACK,BLACK,TRIM1#,2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

MX3#,RX3#,TX30

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69272-30010

MX3#,RX3#,TX30

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-22030

MX3#,RX3#,TX30..SED,WG

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-22030

MX3#,RX3#,TX30..SED,WG

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-22030

MX3#,RX3#,TX30..SED,WG

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-22030

MX3#,RX3#,TX30..SED,WG

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-22040

MX3#,RX3#,TX30..SED,WG

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-22040

MX3#,RX3#,TX30..SED,WG

 1
Common parts
90119-08093
91521-40608
91611-40610
