RX30R-EMDN (1978)
Toyota Cressida
Production
Aug 1978
-
Aug 1980
Engine
18R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)

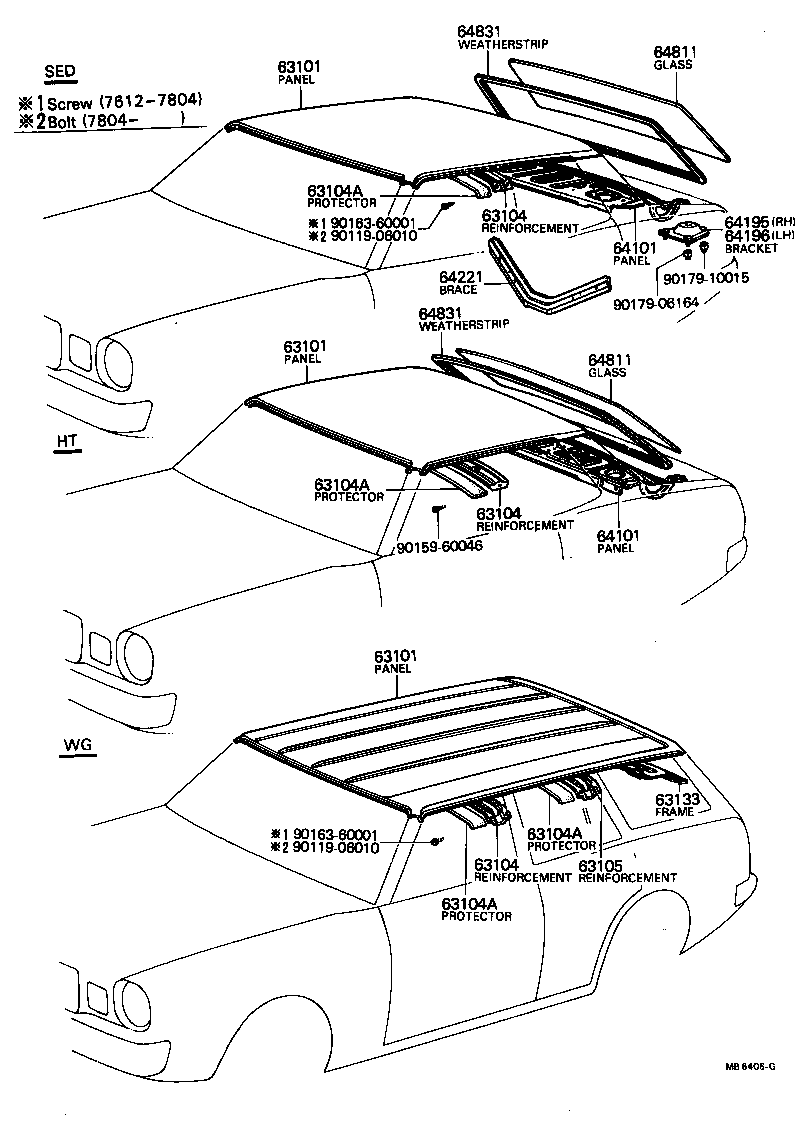

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-22060 |
MX32,RX30,TX30..SED |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-22060 |
MX32,RX30,TX30..SED |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-22060 |
MX32,RX30,TX30..SED |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-22010 |
MX32,RX30,TX30..SED |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-22010 |
MX32,RX30,TX30..SED |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-22010 |
MX32,RX30,TX30..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22070 |
MX32,RX30,TX30..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22070 |
MX32,RX30,TX30..SED |
1 | ||
| 64221 - BRACE, REAR SEAT CUSHION SUPPORT | ||||
| 64221-22020 |
MX32,RX30,TX30..SED |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-22030 |
MX32,RX30..SED..(DLX,GL,SDX) |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-22030 |
MX32,RX30..SED..(DLX,GL,SDX) |
1 | ||
| Common parts | ||||
| 90119-06010 | ||||
| 90159-60046 | ||||
| 90163-60001 | ||||
| 90179-06164 | ||||
| 90179-10015 | ||||
