RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)

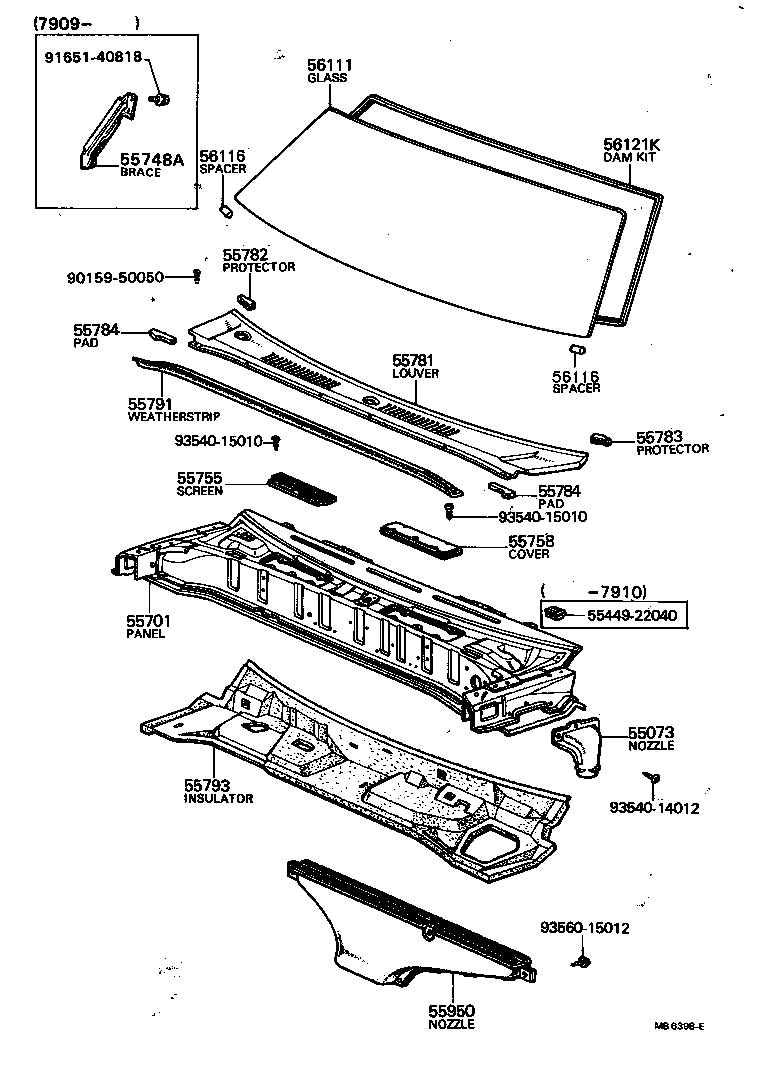

Click highlighted areas on diagram

diagram 55073 5544922040 55701 55748A 55755 55758 55781 55782 55783 55784 55784 55791 55793 55950 56111 56116 56116 56121K 9015950050 9165140818 9354014012 9354015010 9354015010 9356015012
Part # Description Qty Price
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-20010

MX3#,RX3#,TX30

 2
55701 - PANEL SUB-ASSY, COWL
55700-22200

MX3#,RX3#..RHD

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-22020

MX3#,RX3#,TX30..RHD

 1
55758 - COVER, HEATER AIR DUCT
55077-22020

MX3#,RX3#,TX30..RHD

 1
55781 - LOUVER, COWL VENTILATOR
55781-22080

MX3#,RX3#,TX30..RHD

 1
55782 - PROTECTOR, COWL TOP VENTILATOR LOUVER, RH
55788-22040

MX3#,RX3#,TX30

 1
55783 - PROTECTOR, COWL TOP VENTILATOR LOUVER, LH
55789-22030

MX3#,RX3#,TX30

 1
55784 - PAD, COWL OUTER PANEL, NO.1
55783-22020

MX3#,RX3#,TX30

FOR RH.

 1
55784-22020

MX3#,RX3#,TX30

FOR LH.

 1
55784 - PAD, COWL OUTER PANEL, NO.1
55783-22020

MX3#,RX3#,TX30

FOR RH.

 1
55784-22020

MX3#,RX3#,TX30

FOR LH.

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-22010

MX3#,RX3#,TX30

 1
55793 - INSULATOR, COWL TOP PANEL, NO.1
55787-22040

MX3#,RX3#..RHD..MTM

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-22020

MX3#,RX3#,TX30..RHD

 1
56111 - GLASS, WINDSHIELD
56111-22130

MX3#,RX30..ARL,SA

LM.T=4.9

 1
56111-22130

MX32,RX30,TX30..SA

LM.T=4.9

 1
56116 - SPACER, WINDSHIELD GLASS
56116-30020

MX3#,RX3#,TX30..SED,WG

 4
56116 - SPACER, WINDSHIELD GLASS
56116-30020

MX3#,RX3#,TX30..SED,WG

 4
56121K - DAM KIT, WINDSHIELD GLASS
04562-30020

MX3#,RX3#,TX30..SED,WG

 1
Common parts
55449-22040
90159-50050
91651-40818
93540-14012
93540-15010
93560-15012
