RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8008)

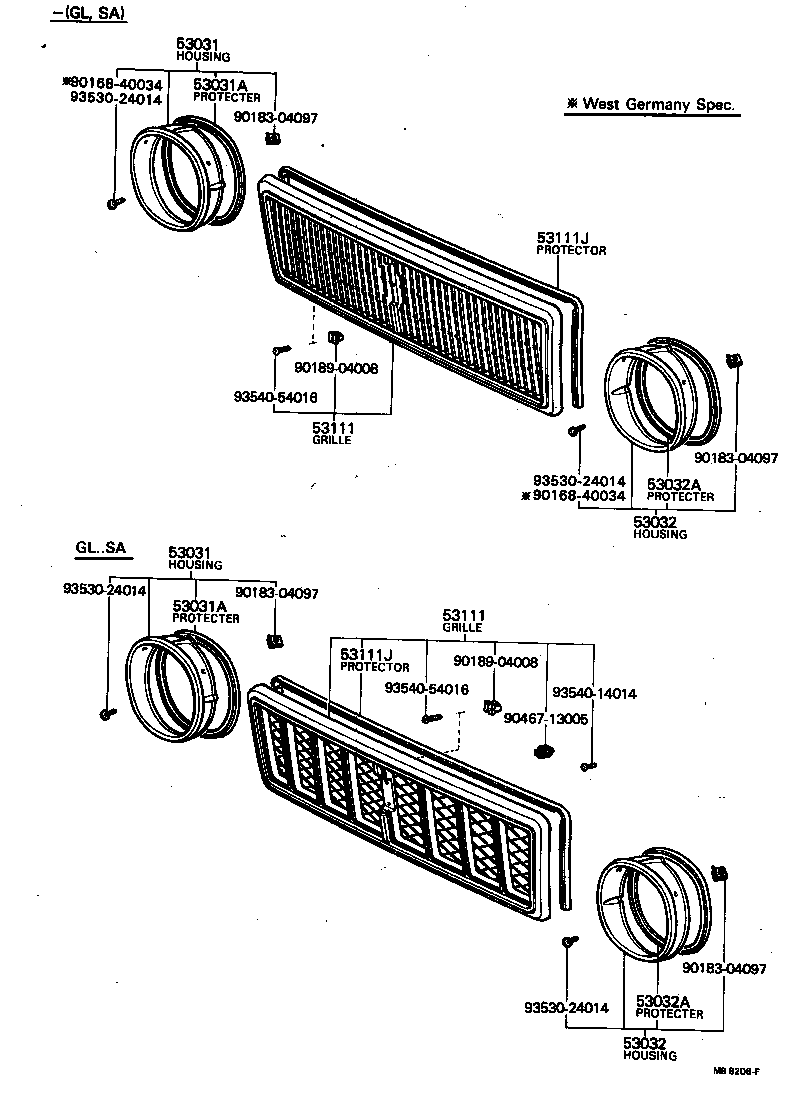

Click highlighted areas on diagram

diagram 53031 53031 53031A 53031A 53032 53032 53032A 53032A 53111 53111 53111J 53111J 9016840034 9016840034 9018304097 9018304097 9018304097 9018304097 9018904008 9018904008 9046713005 9353024014 9353024014 9353024014 9353024014 9354014014 9354054016 9354054016
Part # Description Qty Price
53031 - HOUSING, HEADLAMP, RH
53031-29035

MX3#,RX3#,TX30

 1
53031-29025

MX3#,RX3#

 1
53031 - HOUSING, HEADLAMP, RH
53031-29035

MX3#,RX3#,TX30

 1
53031-29025

MX3#,RX3#

 1
53031A - PROTECTOR, HEADLAMP DOOR, RH
53139-22030

MX3#,RX3#,TX30

L=710

 1
53119-22010

MX3#,RX3#

H,L=700

 1
53031A - PROTECTOR, HEADLAMP DOOR, RH
53139-22030

MX3#,RX3#,TX30

L=710

 1
53119-22010

MX3#,RX3#

H,L=700

 1
53032 - HOUSING, HEADLAMP, LH
53032-29025

MX3#,RX3#

 1
53032-29035

MX3#,RX3#,TX30

 1
53032 - HOUSING, HEADLAMP, LH
53032-29025

MX3#,RX3#

 1
53032-29035

MX3#,RX3#,TX30

 1
53032A - PROTECTOR, HEADLAMP DOOR, LH
53139-22030

MX3#,RX3#,TX30

L=710

 1
53119-22010

MX3#,RX3#

H,L=700

 1
53032A - PROTECTOR, HEADLAMP DOOR, LH
53139-22030

MX3#,RX3#,TX30

L=710

 1
53119-22010

MX3#,RX3#

H,L=700

 1
53111 - GRILLE, RADIATOR
53100-29065

MX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)

 1
53111 - GRILLE, RADIATOR
53100-29065

MX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)

 1
53111J - PROTECTOR, RADIATOR GRILLE
53119-22010

MX3#,RX3#

 1
53119-22030

MX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)

 1
53111J - PROTECTOR, RADIATOR GRILLE
53119-22010

MX3#,RX3#

 1
53119-22030

MX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)

 1
Common parts
90168-40034
90183-04097
90189-04008
90467-13005
93530-24014
93540-14014
93540-54016
