RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)

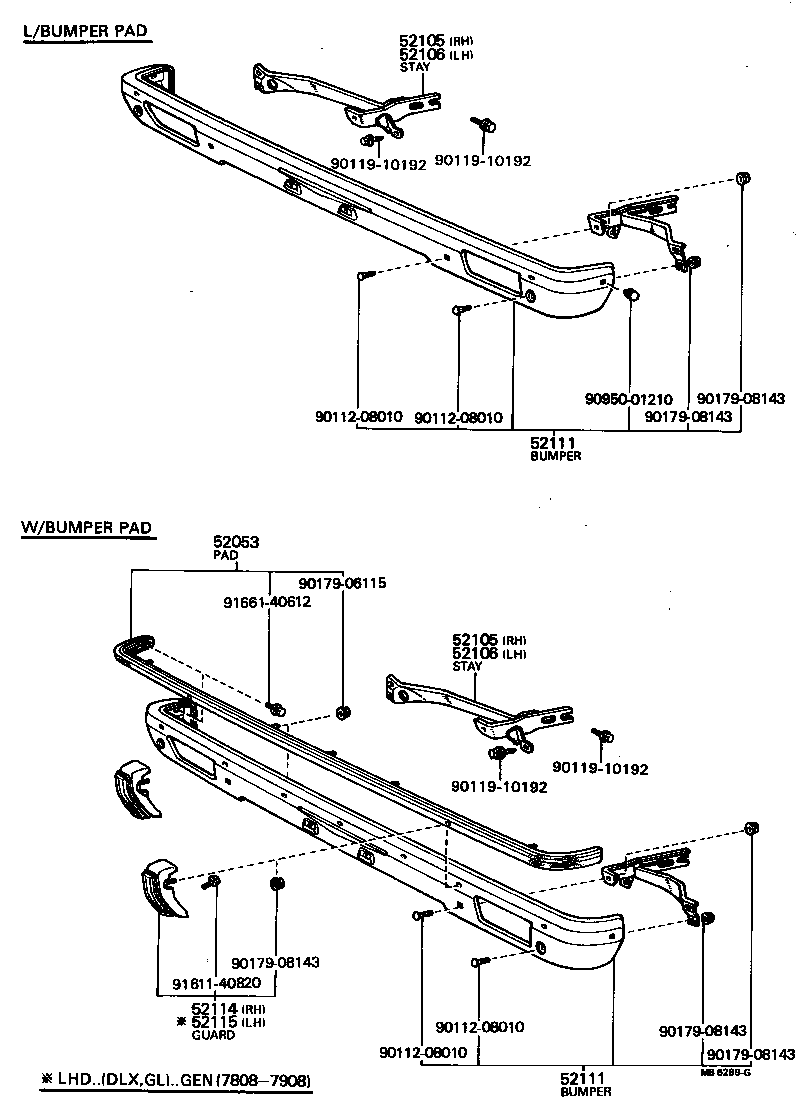

Click highlighted areas on diagram

diagram 52053 52105 52105 52106 52106 52111 52111 52114 52115 9011208010 9011208010 9011208010 9011208010 9011910192 9011910192 9011910192 9011910192 9017900143 9017906115 9017908143 9017908143 9017908143 9017908143 9095001210 9161140820 9166140612
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-29025

RX30..5F..DLX..SA;MX3#,RX35..DLX,SDX;RX30..5F..(EUR,GEN);RX30..(3FC,3H,4F)..(DLX,GL)

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-22020

MX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-22020

MX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-22020

MX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-22020

MX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)

 1
52111 - BUMPER ASSY, FRONT
52111-29305

RX35..DLX;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN);RX30..(3FC,3H,4F)..(DLX,GL)

W/BUMPER PAD

 1
52111 - BUMPER ASSY, FRONT
52111-29305

RX35..DLX;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN);RX30..(3FC,3H,4F)..(DLX,GL)

W/BUMPER PAD

 1
Common parts
90112-08010
90119-10192
90179-00143
90179-06115
90179-08143
90950-01210
91611-40820
91661-40612
