RX30R-EMDN (1978)
Toyota Cressida
(7612-8008)DLX,SDX,STD

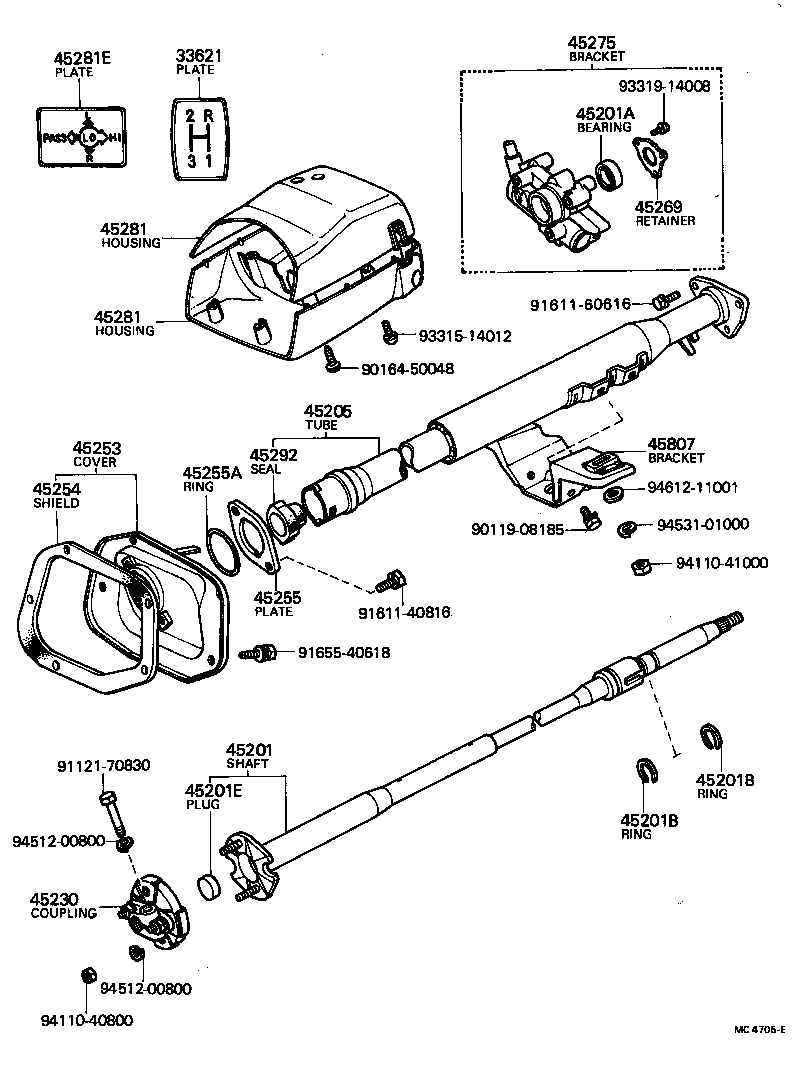

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22030 |
MX3#,RX3# |
1 | ||
| 45210-22030 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
MX3#,RX3# |
1 | ||
| 90363-18038 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
MX3#,RX3#,TX30 T=1.20,FOR STEERING WHEEL SIDE |
1 | ||
| 90520-17042 |
MX3#,RX3#,TX30 T=1.20,T=1.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
MX3#,RX3#,TX30 T=1.20,FOR STEERING WHEEL SIDE |
1 | ||
| 90520-17042 |
MX3#,RX3#,TX30 T=1.20,T=1.2 |
1 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
MX3#,RX3# |
1 | ||
| 90333-21008 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22080 |
MX3#,RX3# |
1 | ||
| 45870-22080 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
MX3#,RX3#,TX30 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-22913 |
MX3#,RX3#..RHD..(3FC,4F,5F) |
1 | ||
| 45025-22010 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F) |
1 | ||
| 45253-22919 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22030 |
MX3#,RX3# |
1 | ||
| 45254-22031 |
MX3#,RX3#,TX30 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
MX3#,RX3#,TX30 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
MX3#,RX3#,TX30 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45269-20010 |
MX3#,RX3# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30161 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2221102 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) DARK WINE,UPPER,RED/MAROON,TRIM3# |
1 | ||
| 45286-2221101 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2221105 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2216105 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2216102 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) DARK WINE,LOWER,RED/MAROON,TRIM3# |
1 | ||
| 45287-2216101 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2221102 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) DARK WINE,UPPER,RED/MAROON,TRIM3# |
1 | ||
| 45286-2221101 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2221105 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2216105 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2216102 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) DARK WINE,LOWER,RED/MAROON,TRIM3# |
1 | ||
| 45287-2216101 |
MX3#,RX3#,TX30..RHD..(3FC,4F,5F)..(DLX,SDX,STD) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
MX3#,RX3#,TX30..RHD |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
MX3#,RX3#,TX30 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-22100 |
MX3#,RX3#..RHD |
1 | ||
| 45807-22100 |
MX3#,RX3#,TX30..RHD..(DLX,SDX,STD) |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91611-60616 | ||||
| 91655-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94531-01000 | ||||
| 94612-11001 | ||||
