RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)RX3#..MTM

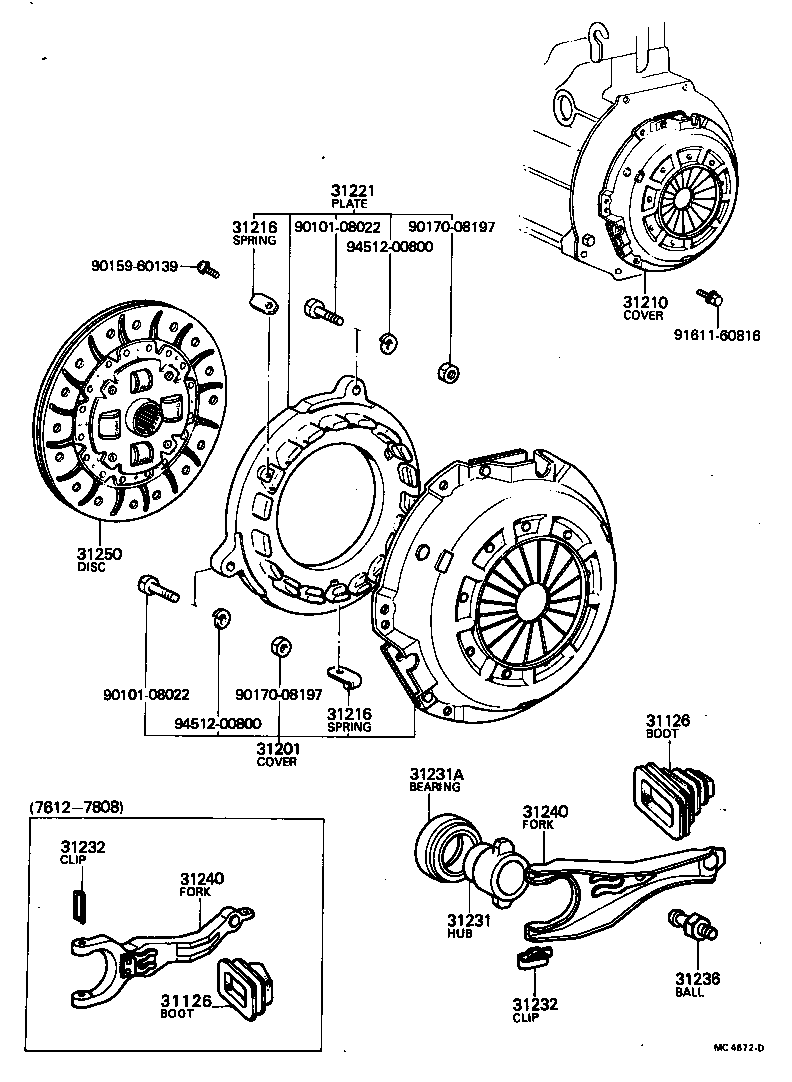

Click highlighted areas on diagram

diagram 31126 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31232 31236 31240 31240 31250 9010108022 9010108022 9015960139 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20050

RX3#..MTM

 1
31126-20060

RX3#..MTM

 1
31126 - BOOT, CLUTCH RELEASE FORK
31126-20050

RX3#..MTM

 1
31126-20060

RX3#..MTM

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-39047

MX3#,RX3#..MTM

 1
31201-39045

MX3#,RX3#..MTM

 1
31201-39046

MX3#,RX3#..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-30141

MX3#,RX3#..MTM

 1
31210-30142

MX3#,RX3#..MTM

 1
31210-30140

MX3#,RX3#..MTM

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

MX3#,RX3#..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

MX3#,RX3#..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39025

MX3#,RX3#..MTM

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20070

RX3#..MTM

 1
31231-22030

RX3#..MTM

 1
31231-20071

RX3#..MTM

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40001

MX3#,RX3#,TX30..MTM

 1
90363-40008

MX3#,RX3#,TX30..MTM

 1
90363-40015

MX3#,RX3#,TX30..4F,5F

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

MX3#,RX3#..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

MX3#,RX3#..MTM

 2
31236 - BALL, RELEASE FORK
31236-20020

MX3#,RX3#,TX30..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20050

RX3#..MTM

 1
31204-20020

RX3#..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20050

RX3#..MTM

 1
31204-20020

RX3#..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-22070

RX3#..MTM

 1
31250-22072

RX3#..MTM

 1
Common parts
90101-08022
90159-60139
90170-08197
91611-60816
94512-00800
