RX30R-EMDN (1978)
Toyota Cressida
Production
Aug 1978
-
Aug 1980
Engine
18R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-7907)18R# ; (7907-7908)18R#..EUR,GEN

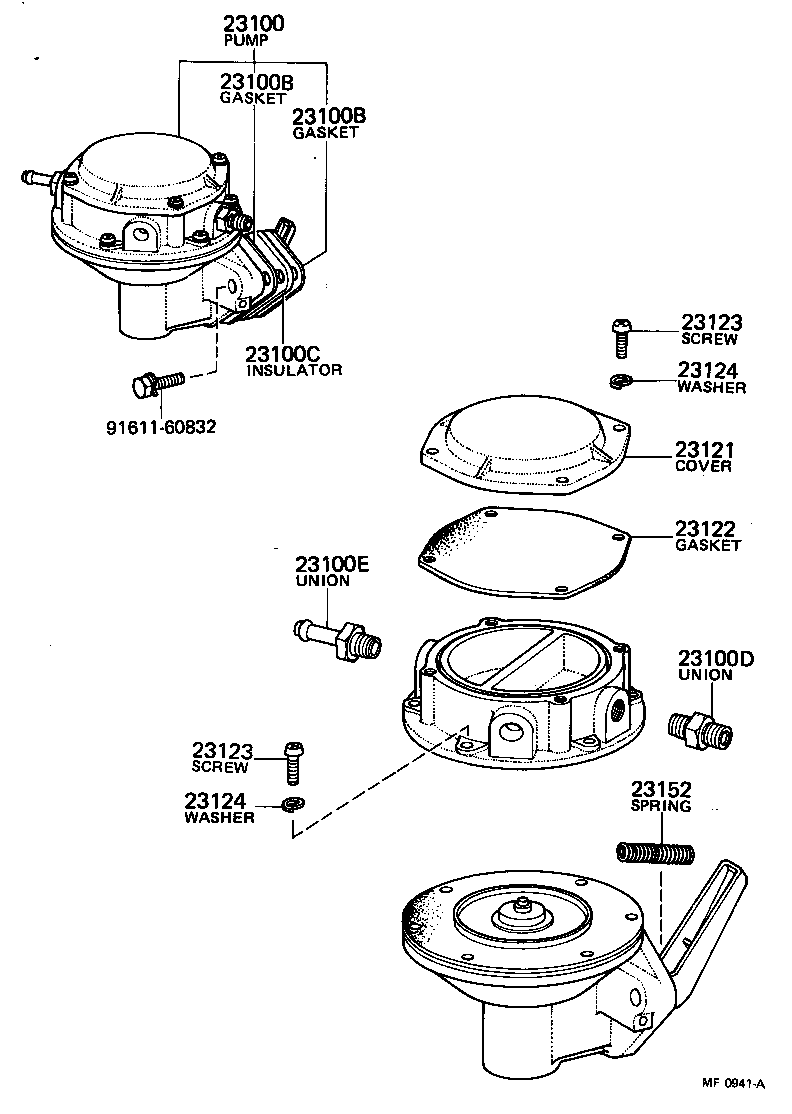

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-39295 |
18R..RX3#..SA |
1 | ||
| 23100-39117 |
18R#..RX3# |
1 | ||
| 23100-39295 |
18R#..RX3# |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
18R#..RX3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
18R#..RX3# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
18R#..RX3# |
1 | ||
| 23100D - UNION, NIPPLE(FOR FUEL OUTLET) | ||||
| 23119-36020 |
18R#..RX3# |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 23119-45020 |
18R#..RX3# |
1 | ||
| 23121 - COVER, FUEL PUMP | ||||
| 23121-34050 |
18R#..RX3# |
1 | ||
| 23122 - GASKET, FUEL PUMP COVER | ||||
| 23122-34050 |
18R#..RX3# |
1 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 93219-15014 |
18R#..RX3# |
10 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 93219-15014 |
18R#..RX3# |
10 | ||
| 23124 - WASHER, COVER SET, NO.2 | ||||
| 94511-00500 |
18R#..RX3# |
10 | ||
| 23124 - WASHER, COVER SET, NO.2 | ||||
| 94511-00500 |
18R#..RX3# |
10 | ||
| 23152 - SPRING, ROCKER ARM | ||||
| 23152-42012 |
18R#..RX3# |
1 | ||
| Common parts | ||||
| 91611-60832 | ||||
(7907-7908)18R..SA ; (7908-8008)18R#

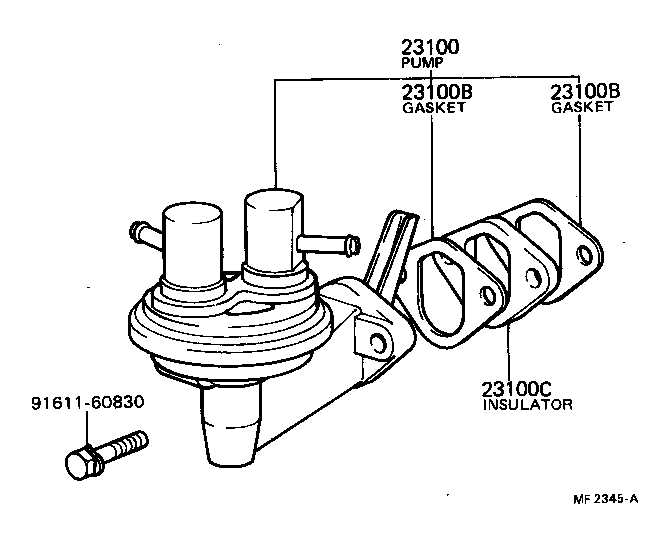

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-39295 |
18R..RX3#..SA |
1 | ||
| 23100-39117 |
18R#..RX3# |
1 | ||
| 23100-39295 |
18R#..RX3# |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
18R#..RX3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
18R#..RX3# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
18R#..RX3# |
1 | ||
| Common parts | ||||
| 91611-60830 | ||||
