RX30R-EMDN (1978)
Toyota Cressida
Production
Aug 1978
-
Aug 1980
Engine
18R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7907-8008)18R..SA

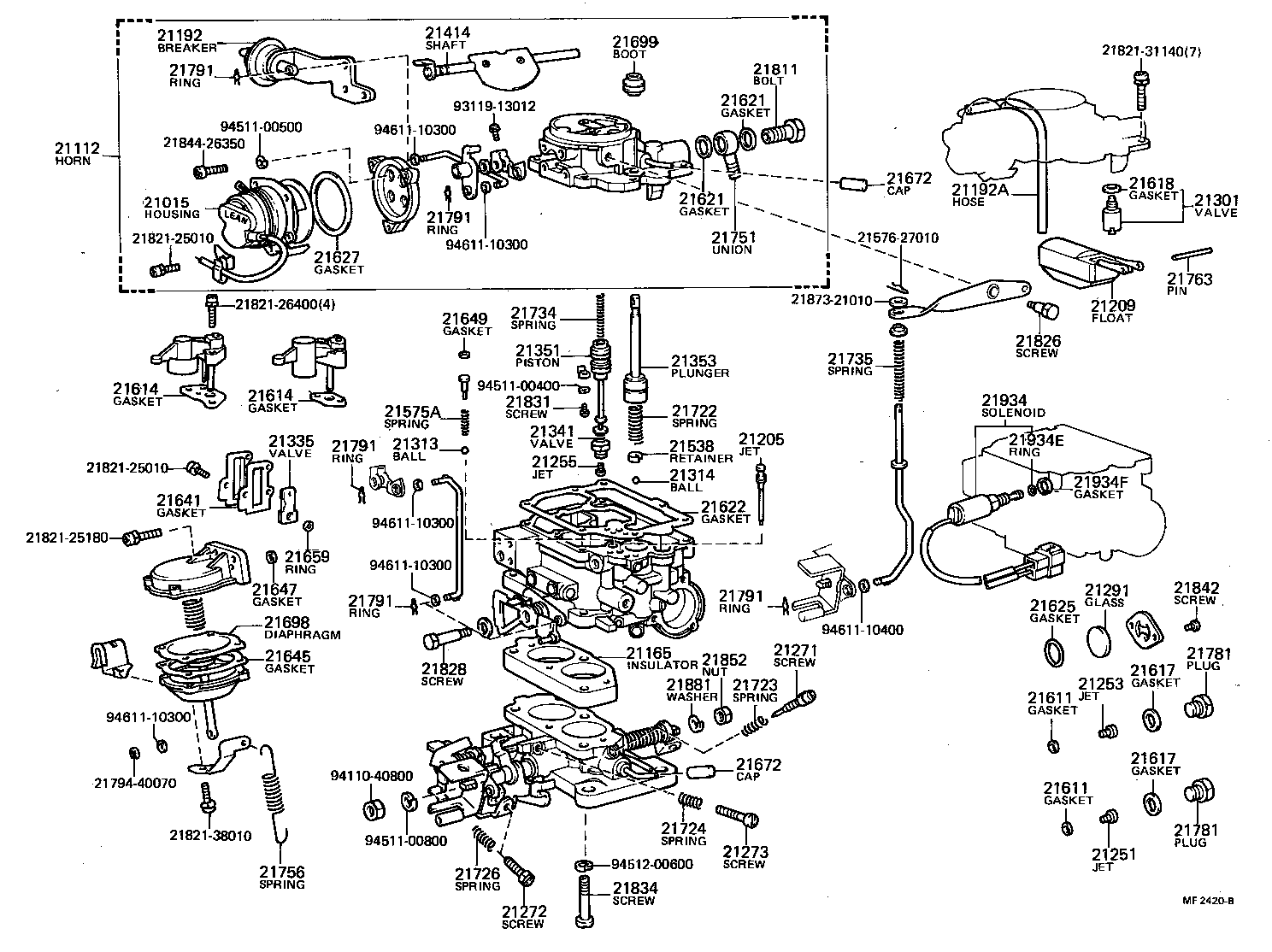

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21122-34240 |
18R..RX3#..SA |
1 | ||
| 21015-34620 |
18R..RX3#..SA |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-34620 |
18R..RX3#..SA |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-38012 |
18R..RX3#..SA |
1 | ||
| 21192 - BREAKER | ||||
| 21192-34620 |
18R..RX3#..SA |
1 | ||
| 21192A - HOSE, NO.1(FOR BREAKER) | ||||
| 95411-19930 |
18R..RX3#..SA H,L=140 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-34620 |
18R..RX3#..SA ID=0.60 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41113 |
18R..RX3#..SA ID=1.13 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43050 |
18R..RX3#..SA ID=0.50 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-38011 |
18R..RX3#..SA |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-38010 |
18R..RX3#..SA |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
18R..RX3#..SA |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-38010 |
18R..RX3#..SA |
1 | ||
| 21301-34620 |
18R..RX3#..SA |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-34620 |
18R..RX3#..SA |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-44101 |
18R#..RX3# |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-34370 |
18R..RX3#..SA |
1 | ||
| 21575A - SPRING(FOR STOPPER, B) | ||||
| 21864-38010 |
18R..RX3#..SA |
1 | ||
| 21864-26020 |
18R..RX3#..SA |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
18R..RX3#..SA |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-38110 |
18R..RX3#..SA |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23012 |
18R..RX3#..SA |
1 | ||
| 21672 - CAP | ||||
| 90339-03005 |
18R..RX3#..SA |
2 | ||
| 21672 - CAP | ||||
| 90339-03005 |
18R..RX3#..SA |
2 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-34370 |
18R..RX3#..SA |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38010 |
18R..RX3#..SA |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
18R..RX3#..SA |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33081 |
18R..RX3#..SA |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-34620 |
18R..RX3#..SA |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-34080 |
18R..RX3#..SA WD=0.9,CW=14.25 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
18R..RX3#..SA |
1 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21828-38360 |
18R..RX3#..SA |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21824-38010 |
18R..RX3#..SA |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-34370 |
18R..RX3#..SA |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21794-40070 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-31140 | ||||
| 21821-38010 | ||||
| 21844-26350 | ||||
| 21873-21010 | ||||
| 93119-13012 | ||||
| 94110-40800 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
