RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)18R#

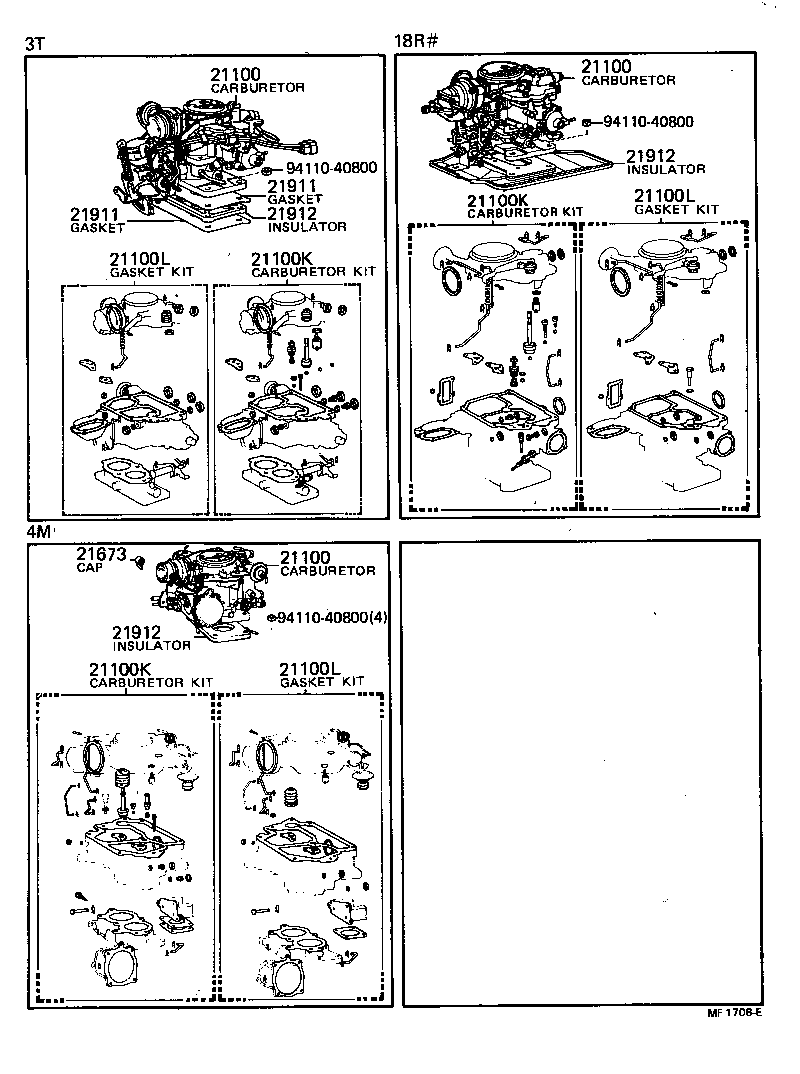

Click highlighted areas on diagram

diagram 21100 21100 21100 21100K 21100K 21100K 21100L 21100L 21100L 21673 21911 21911 21912 21912 21912 9411040800 9411040800 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-34620

18R..RX3#..MTM..SA

 1
21100-34620

18R..RX3#..MTM..SA

 1
21100-34620

18R..RX3#..MTM..SA

 1
21100 - CARBURETOR ASSY
21100-34620

18R..RX3#..MTM..SA

 1
21100-34620

18R..RX3#..MTM..SA

 1
21100-34620

18R..RX3#..MTM..SA

 1
21100 - CARBURETOR ASSY
21100-34620

18R..RX3#..MTM..SA

 1
21100-34620

18R..RX3#..MTM..SA

 1
21100-34620

18R..RX3#..MTM..SA

 1
21100K - CARBURETOR KIT
04211-34260

18R..RX3#..SA

 1
04211-34260

18R..RX3#..SA

 1
04211-34260

18R..RX3#..SA

 1
21100K - CARBURETOR KIT
04211-34260

18R..RX3#..SA

 1
04211-34260

18R..RX3#..SA

 1
04211-34260

18R..RX3#..SA

 1
21100K - CARBURETOR KIT
04211-34260

18R..RX3#..SA

 1
04211-34260

18R..RX3#..SA

 1
04211-34260

18R..RX3#..SA

 1
21100L - GASKET KIT, CARBURETOR
04212-34070

18R..RX3#..SA

 1
04212-34070

18R..RX3#..SA

 1
04212-34070

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
21100L - GASKET KIT, CARBURETOR
04212-34070

18R..RX3#..SA

 1
04212-34070

18R..RX3#..SA

 1
04212-34070

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
21100L - GASKET KIT, CARBURETOR
04212-34070

18R..RX3#..SA

 1
04212-34070

18R..RX3#..SA

 1
04212-34070

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
04212-34071

18R..RX3#..SA

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-34062

18R..RX3#..SA

 1
21912-34062

18R..RX3#..SA

 1
21912-34062

18R..RX3#..SA

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-34062

18R..RX3#..SA

 1
21912-34062

18R..RX3#..SA

 1
21912-34062

18R..RX3#..SA

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-34062

18R..RX3#..SA

 1
21912-34062

18R..RX3#..SA

 1
21912-34062

18R..RX3#..SA

 1
Common parts
94110-40800
