RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7909)18R ; (8001-8008)3T

Click highlighted areas on diagram

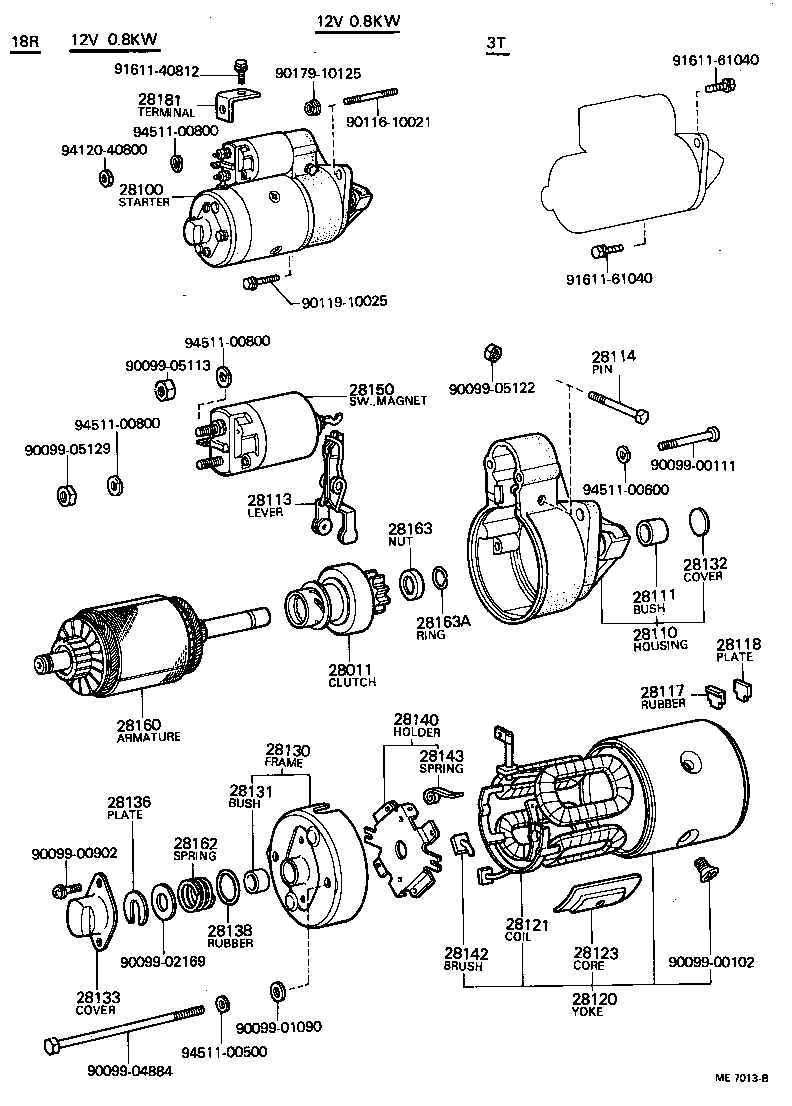

diagram 28011 28100 28110 28111 28113 28114 28117 28118 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28143 28150 28160 28162 28163 28163A 28181 9009900102 9009900111 9009900902 9009901090 9009902169 9009904884 9009905113 9009905122 9009905129 9011610021 9011910025 9017910125 9161140812 9161161040 9161161040 9412040800 9451100500 9451100600 9451100800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41011

18R..RX3#

12V 0.8KW

 1
28011-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28011-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28100 - STARTER ASSY
28100-36070

18R..RX3#

12V 0.8KW

 1
28100-36070

18R..RX3#..GEN,SA

12V 0.8KW

 1
28100-37010

18R..RX3#..GEN,SA

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-40045

18R..RX3#

12V 0.8KW

 1
28110-40045

18R..RX3#..GEN,SA

12V 0.8KW

 1
28110-37010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

18R#,4M..MX3#,RX3#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

18R#,4M..MX3#,RX3#

 1
28113-15011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011

18R#,4M..MX3#,RX3#

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41013

18R..RX3#..GEN,SA

12V 0.8KW

 1
28117-41013

18R..RX3#

12V 0.8KW

 1
28118 - PLATE(FOR STARTER YOKE)
28118-41013

18R..RX3#

12V 0.8KW

 1
28118-41013

18R..RX3#..GEN,SA

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28120-36040

18R..RX3#

12V 0.8KW

 1
28120-36040

18R..RX3#..GEN,SA

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-36040

18R..RX3#

12V 0.8KW

 1
28121-36040

18R..RX3#..GEN,SA

12V 0.8KW

 1
28123 - CORE, STARTER POLE
28123-40012

18R..RX3#

12V 0.8KW

 4
28123-40012

18R..RX3#..GEN,SA

12V 0.8KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

18R..RX3#

12V 0.8KW

 1
28130-37010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28130-21011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

18R#,4M..MX3#,RX3#

STD

 1
90099-10040

18R#,4M..MX3#,RX3#

U/S 0.5

 1
90099-10039

18R#,4M..MX3#,RX3#

U/S 0.3

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

18R#,4M..MX3#,RX3#

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28132-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28132-41011

18R..RX3#

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28136-41011

18R..RX3#

12V 0.8KW

 1
28136-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

18R..RX3#

12V 0.8KW

 1
28138-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28138-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-41012

18R..RX3#..GEN,SA

12V 0.8KW

 1
28140-41012

18R..RX3#

12V 0.8KW

 1
28140-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28142 - BRUSH, STARTER
28142-21010

18R..RX3#

12V 0.8KW

 4
28142-21010

18R..RX3#..GEN,SA

12V 0.8KW

 4
28143 - SPRING, STARTER BRUSH
28143-40040

18R#,4M..MX3#,RX3#

 4
28143-40010

18R#,4M..MX3#,RX3#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-22011

18R#..RX3#

 1
28150-15011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28150-22011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-40014

18R..RX3#..GEN,SA

12V 0.8KW

 1
28160-40014

18R..RX3#

12V 0.8KW

 1
28160-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28162-41011

18R..RX3#

12V 0.8KW

 1
28162-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

18R#,4M,3T..MX3#,RX3#,TX30

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

18R#,4M,3T..MX3#,RX3#,TX30

 1
28181 - TERMINAL, STARTER
28181-20010

18R#,4M..MX3#,RX3#

 1
28181-20010

18R#..RX3#

 1
Common parts
90099-00102
90099-00111
90099-00902
90099-01090
90099-02169
90099-04884
90099-05113
90099-05122
90099-05129
90116-10021
90119-10025
90179-10125
91611-40812
91611-61040
94120-40800
94511-00500
94511-00600
94511-00800

(7612-8008)18R#,4M

Click highlighted areas on diagram

diagram 28011 28012 28100 28110 28111 28113 28114 28117 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28163 28163A 28172 28181 28181 9009331202 9009900102 9009900111 9009900902 9009901098 9009904134 9009904891 9009905113 9009905122 9009905129 9011610021 9017910125 9017910125 9161140812 9161140812 9161141055 9161161030 9412040800 9412040800 9451100600 9451100600 9451100800 9451100800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41011

18R..RX3#

12V 0.8KW

 1
28011-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28011-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28100 - STARTER ASSY
28100-36070

18R..RX3#

12V 0.8KW

 1
28100-36070

18R..RX3#..GEN,SA

12V 0.8KW

 1
28100-37010

18R..RX3#..GEN,SA

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-40045

18R..RX3#

12V 0.8KW

 1
28110-40045

18R..RX3#..GEN,SA

12V 0.8KW

 1
28110-37010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

18R#,4M..MX3#,RX3#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

18R#,4M..MX3#,RX3#

 1
28113-15011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011

18R#,4M..MX3#,RX3#

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41013

18R..RX3#..GEN,SA

12V 0.8KW

 1
28117-41013

18R..RX3#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28120-36040

18R..RX3#

12V 0.8KW

 1
28120-36040

18R..RX3#..GEN,SA

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-36040

18R..RX3#

12V 0.8KW

 1
28121-36040

18R..RX3#..GEN,SA

12V 0.8KW

 1
28123 - CORE, STARTER POLE
28123-40012

18R..RX3#

12V 0.8KW

 4
28123-40012

18R..RX3#..GEN,SA

12V 0.8KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

18R..RX3#

12V 0.8KW

 1
28130-37010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28130-21011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

18R#,4M..MX3#,RX3#

STD

 1
90099-10040

18R#,4M..MX3#,RX3#

U/S 0.5

 1
90099-10039

18R#,4M..MX3#,RX3#

U/S 0.3

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

18R#,4M..MX3#,RX3#

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28132-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28132-41011

18R..RX3#

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28136-41011

18R..RX3#

12V 0.8KW

 1
28136-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

18R..RX3#

12V 0.8KW

 1
28138-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28138-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-41012

18R..RX3#..GEN,SA

12V 0.8KW

 1
28140-41012

18R..RX3#

12V 0.8KW

 1
28140-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28142 - BRUSH, STARTER
28142-21010

18R..RX3#

12V 0.8KW

 4
28142-21010

18R..RX3#..GEN,SA

12V 0.8KW

 4
28142 - BRUSH, STARTER
28142-21010

18R..RX3#

12V 0.8KW

 4
28142-21010

18R..RX3#..GEN,SA

12V 0.8KW

 4
28143 - SPRING, STARTER BRUSH
28143-40040

18R#,4M..MX3#,RX3#

 4
28143-40010

18R#,4M..MX3#,RX3#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-22011

18R#..RX3#

 1
28150-15011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28150-22011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-40014

18R..RX3#..GEN,SA

12V 0.8KW

 1
28160-40014

18R..RX3#

12V 0.8KW

 1
28160-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28162-41011

18R..RX3#

12V 0.8KW

 1
28162-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

18R#,4M,3T..MX3#,RX3#,TX30

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

18R#,4M,3T..MX3#,RX3#,TX30

 1
28181 - TERMINAL, STARTER
28181-20010

18R#,4M..MX3#,RX3#

 1
28181-20010

18R#..RX3#

 1
28181 - TERMINAL, STARTER
28181-20010

18R#,4M..MX3#,RX3#

 1
28181-20010

18R#..RX3#

 1
Common parts
90093-31202
90099-00102
90099-00111
90099-00902
90099-01098
90099-04134
90099-04891
90099-05113
90099-05122
90099-05129
90116-10021
90179-10125
91611-40812
91611-41055
91611-61030
94120-40800
94511-00600
94511-00800

(7612-8008)18R

Click highlighted areas on diagram

diagram 28011 28100 28110 28113 28119 28120 28130 28133 28136 28138 28140 28150 28153 28160 28162 28163 28163A 28181 9009900926 9009901467 9009904921 9009905148 9009912405 9011610021 9011910025 9017910125 9161140812 9411040800 9412040800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41011

18R..RX3#

12V 0.8KW

 1
28011-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28011-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28100 - STARTER ASSY
28100-36070

18R..RX3#

12V 0.8KW

 1
28100-36070

18R..RX3#..GEN,SA

12V 0.8KW

 1
28100-37010

18R..RX3#..GEN,SA

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-40045

18R..RX3#

12V 0.8KW

 1
28110-40045

18R..RX3#..GEN,SA

12V 0.8KW

 1
28110-37010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

18R#,4M..MX3#,RX3#

 1
28113-15011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

18R..RX3#..GEN,SA

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28120-36040

18R..RX3#

12V 0.8KW

 1
28120-36040

18R..RX3#..GEN,SA

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

18R..RX3#

12V 0.8KW

 1
28130-37010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28130-21011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28132-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28132-41011

18R..RX3#

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28136-41011

18R..RX3#

12V 0.8KW

 1
28136-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

18R..RX3#

12V 0.8KW

 1
28138-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28138-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-41012

18R..RX3#..GEN,SA

12V 0.8KW

 1
28140-41012

18R..RX3#

12V 0.8KW

 1
28140-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-22011

18R#..RX3#

 1
28150-15011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28150-22011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28153 - COVER, MAGNET SWITCH
28159-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-40014

18R..RX3#..GEN,SA

12V 0.8KW

 1
28160-40014

18R..RX3#

12V 0.8KW

 1
28160-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

18R..RX3#..GEN,SA

12V 0.8KW

 1
28162-41011

18R..RX3#

12V 0.8KW

 1
28162-15010

18R..RX3#..GEN,SA

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

18R#,4M,3T..MX3#,RX3#,TX30

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

18R#,4M,3T..MX3#,RX3#,TX30

 1
28181 - TERMINAL, STARTER
28181-20010

18R#,4M..MX3#,RX3#

 1
28181-20010

18R#..RX3#

 1
Common parts
90099-00926
90099-01467
90099-04921
90099-05148
90099-12405
90116-10021
90119-10025
90179-10125
91611-40812
94110-40800
94120-40800
94511-00800
