RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)18R

Click highlighted areas on diagram

diagram 1709 1709 17700 17700A 17700A 17700B 17700F 17705 17784 17801 17841 17841 17845 17848 17848 17882 17882A 17882A 9165640616 9166140820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-36190

18R..RX3#..GEN,SA

L/HOT AIR INTAKE

 1
17700-36190

18R..RX30;18R..RX35..3H..GEN;18R..RX35..3FC,4F,5F

L/HOT AIR INTAKE

 1
17700-34550

18R..RX3#..GEN,SA

L/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

18R..RX3#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

18R..RX3#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-09026

18R..RX3#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06143

18R#..RX3#

L=62,S=12&25

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-34190

18R#..RX3#

 1
17784 - SCREEN, AIR CLEANER
17784-31010

18R#..RX3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-33030

18R#..RX3#

 1
17841 - GASKET, FILTER ELEMENT
17841-33011

18R#..RX3#

 2
17841 - GASKET, FILTER ELEMENT
17841-33011

18R#..RX3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-33011

18R#..RX3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72114

18R#..RX3#

 1
90430-72003

18R#..RX3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72114

18R#..RX3#

 1
90430-72003

18R#..RX3#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-34040

18R#..RX3#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90461-12069

18R#..RX3#

FOR BODY SET

 1
90460-01004

18R#..RX3#

FOR AIR CLEANER SET

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90461-12069

18R#..RX3#

FOR BODY SET

 1
90460-01004

18R#..RX3#

FOR AIR CLEANER SET

 1
Common parts
91656-40616
91661-40820
Linked diagrams
1709

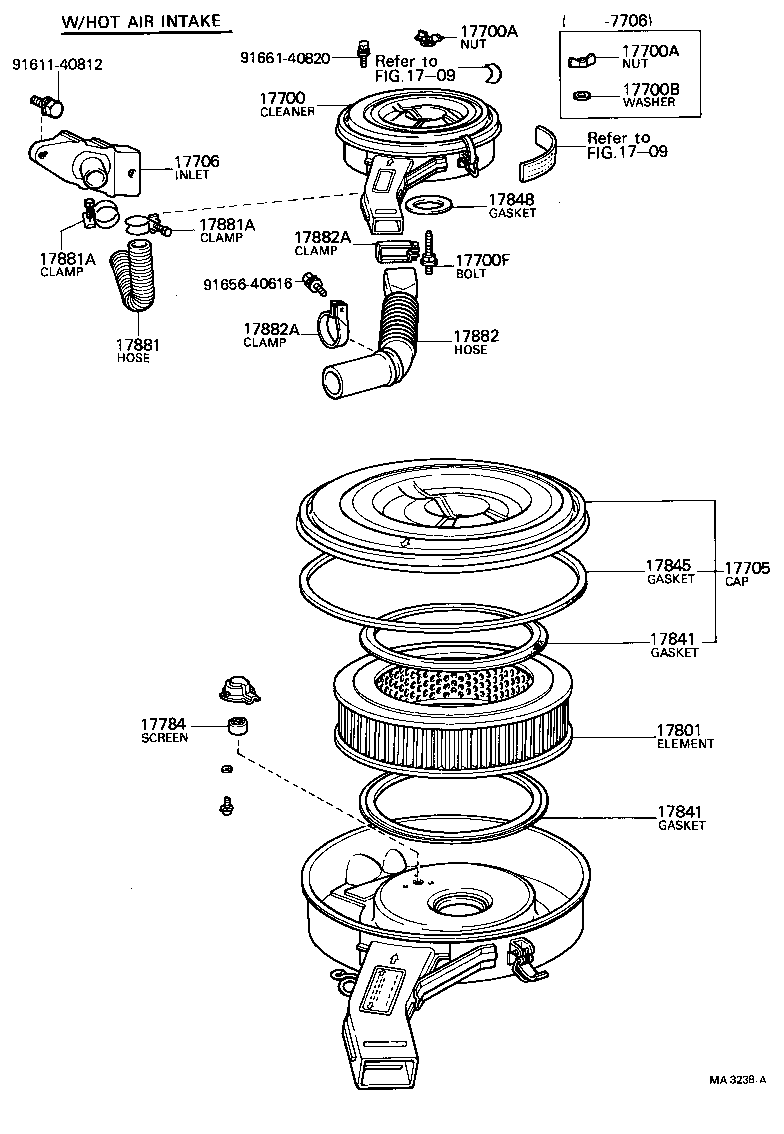

(7612-7908)18R

Click highlighted areas on diagram

diagram 1709 1709 17700 17700A 17700A 17700B 17700F 17705 17706 17784 17801 17841 17841 17845 17848 17881 17881A 17881A 17882 17882A 17882A 9161140812 9165640616 9166140820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-36190

18R..RX3#..GEN,SA

L/HOT AIR INTAKE

 1
17700-36190

18R..RX30;18R..RX35..3H..GEN;18R..RX35..3FC,4F,5F

L/HOT AIR INTAKE

 1
17700-34550

18R..RX3#..GEN,SA

L/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

18R..RX3#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

18R..RX3#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-09026

18R..RX3#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06143

18R#..RX3#

L=62,S=12&25

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-34190

18R#..RX3#

 1
17784 - SCREEN, AIR CLEANER
17784-31010

18R#..RX3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-33030

18R#..RX3#

 1
17841 - GASKET, FILTER ELEMENT
17841-33011

18R#..RX3#

 2
17841 - GASKET, FILTER ELEMENT
17841-33011

18R#..RX3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-33011

18R#..RX3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72114

18R#..RX3#

 1
90430-72003

18R#..RX3#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-34040

18R#..RX3#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90461-12069

18R#..RX3#

FOR BODY SET

 1
90460-01004

18R#..RX3#

FOR AIR CLEANER SET

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90461-12069

18R#..RX3#

FOR BODY SET

 1
90460-01004

18R#..RX3#

FOR AIR CLEANER SET

 1
Common parts
91611-40812
91656-40616
91661-40820
Linked diagrams
1709

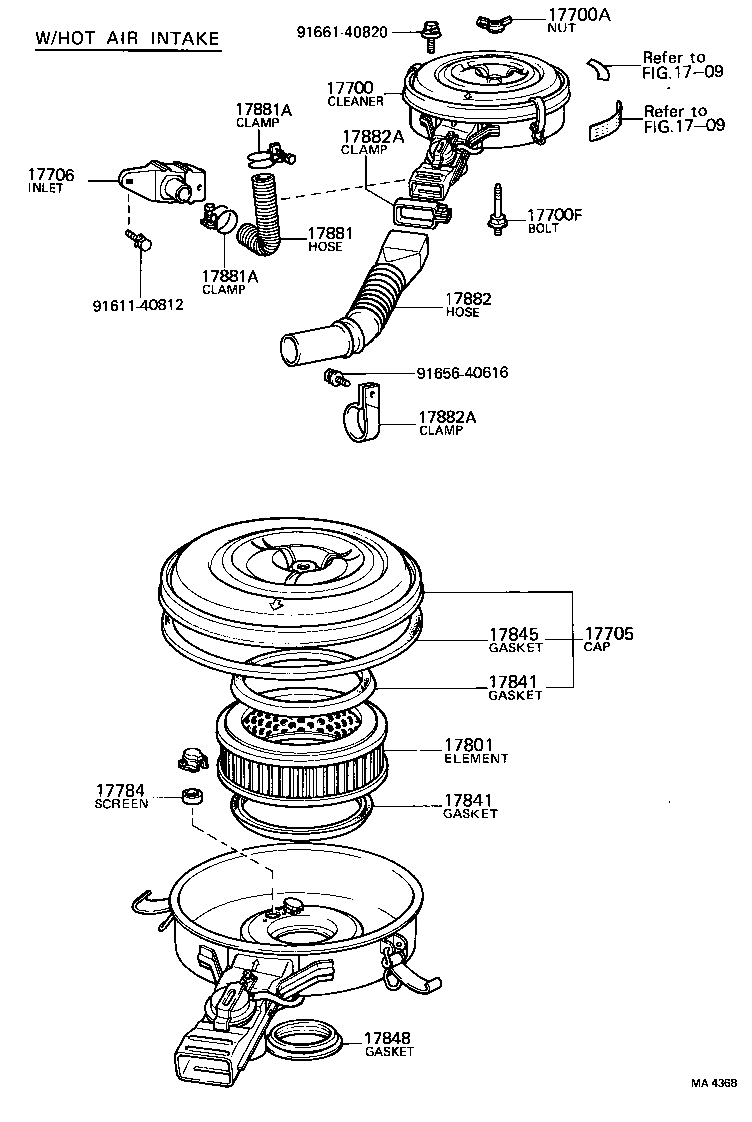

(7908-8008)18R

Click highlighted areas on diagram

diagram 1709 1709 17700 17700A 17700F 17705 17706 17784 17801 17841 17841 17845 17848 17881 17881A 17881A 17882 17882A 17882A 9161140812 9165640616 9166140820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-36190

18R..RX3#..GEN,SA

L/HOT AIR INTAKE

 1
17700-36190

18R..RX30;18R..RX35..3H..GEN;18R..RX35..3FC,4F,5F

L/HOT AIR INTAKE

 1
17700-34550

18R..RX3#..GEN,SA

L/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

18R..RX3#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06143

18R#..RX3#

L=62,S=12&25

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-34190

18R#..RX3#

 1
17784 - SCREEN, AIR CLEANER
17784-31010

18R#..RX3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-33030

18R#..RX3#

 1
17841 - GASKET, FILTER ELEMENT
17841-33011

18R#..RX3#

 2
17841 - GASKET, FILTER ELEMENT
17841-33011

18R#..RX3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-33011

18R#..RX3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72114

18R#..RX3#

 1
90430-72003

18R#..RX3#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-34040

18R#..RX3#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90461-12069

18R#..RX3#

FOR BODY SET

 1
90460-01004

18R#..RX3#

FOR AIR CLEANER SET

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90461-12069

18R#..RX3#

FOR BODY SET

 1
90460-01004

18R#..RX3#

FOR AIR CLEANER SET

 1
Common parts
91611-40812
91656-40616
91661-40820
Linked diagrams
1709
