RX30R-EMDN (1978)

Toyota Cressida

Production Aug 1978 - Aug 1980
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7907-8008)18R..SA

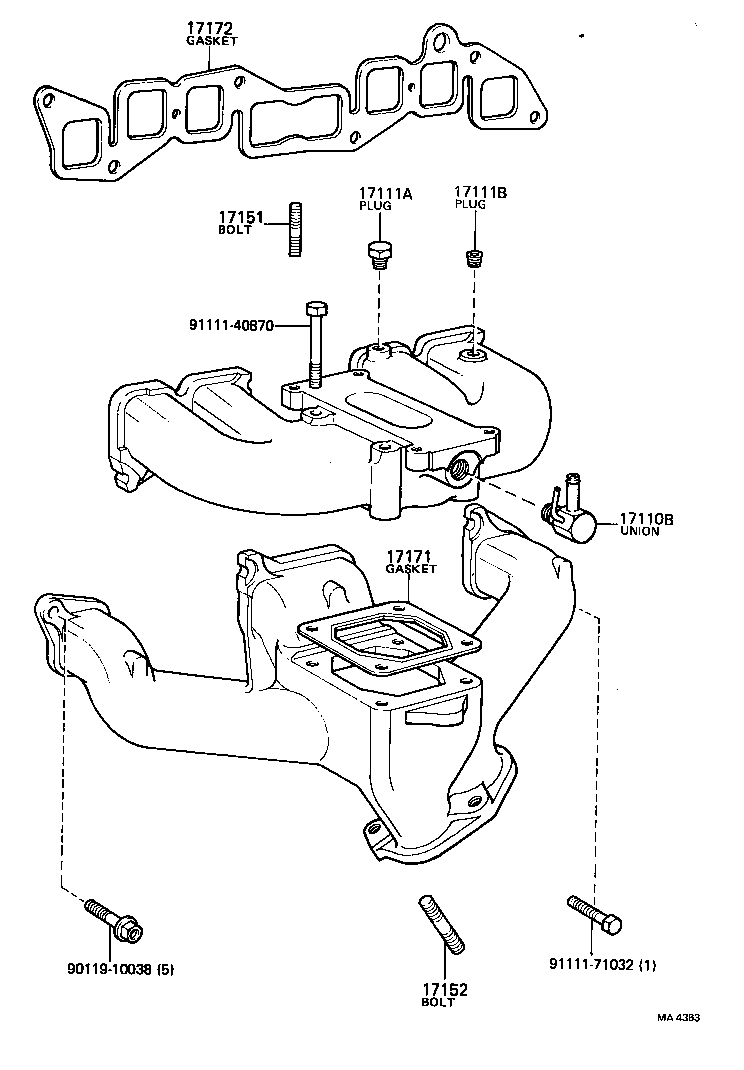

Click highlighted areas on diagram

diagram 17110B 17111A 17111B 17151 17152 17171 17172 9011910038 9111140870 9111171032
Part # Description Qty Price
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-10040

18R#..RX3#

 1
90404-10206

18R..RX3#..SA

 1
17111A - PLUG, NO.1
90072-34107

18R#..RX3#

 3
90072-34107

18R..RX3#..SA

 3
90072-34107

18R..RX3#..SA

 1
17111B - PLUG, NO.2
90344-51010

18R..RX3#..SA

 1
90344-51001

18R..RX3#..SA

 1
90344-51014

18R..RX3#..SA

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92132-40835

18R..RX3#

 4
90116-08052

18R#..RX3#

L=53,S=16&16

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10007

18R..RX3#

L=39,S=14&19

 3
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-33010

18R..RX3#

 1
Common parts
90119-10038
91111-40870
91111-71032
