RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7808) ; (7808-8008)MX36,RX35

Click highlighted areas on diagram

diagram 86300 86309 86391 9015940198 9016040002 9351014016
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-22100

RX3#..LHD..EUR

 1
86300-22100

RX3#..LHD

 1
86300-22090

RX3#..LHD

 1
86300-95801

RX30..HT

MOTOR TYPE

 1
86300-95800

RX30..HT

MANUAL TYPE

 1
86309 - POLE SUB-ASSY, PILLAR ANTENNA
86309-22030

RX3#..LHD..EUR

 1
86309-22031

RX3#..LHD..EUR

 1
86309-22031

RX3#..LHD

 1
86309-22020

RX3#..LHD

 1
86309-22021

RX3#..LHD

 1
86391 - HOLDER, ANTENNA
86391-22060

RX3#..LHD

 1
86391-22060

RX3#..LHD

 1
86391-22061

RX3#..LHD

 1
86391-22041

RX3#..LHD

 1
Common parts
90159-40198
90160-40002
93510-14016

(7708-8008)MX32,RX30,TX30

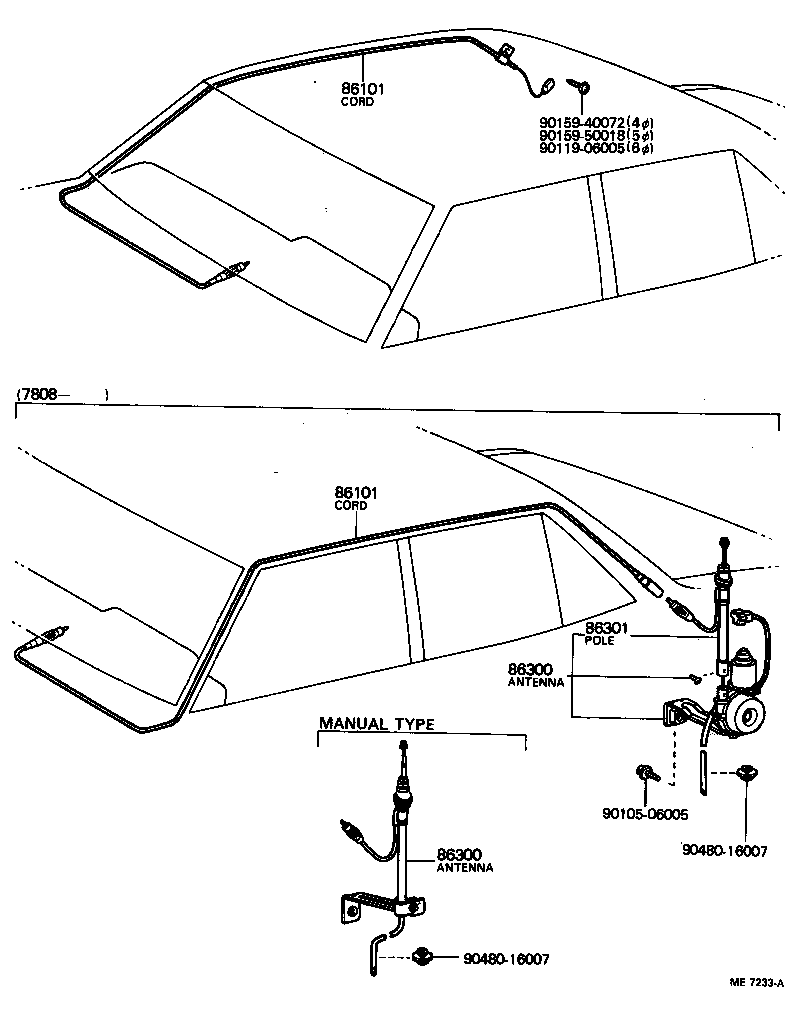

Click highlighted areas on diagram

diagram 86101 86101 86300 86300 86301 9010506005 9011906005 9015940072 9015950018 9048016007 9048016007
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-95800

RX30..HT

 1
86101-22021

RX30..LHD..STD..EUG;MX32,RX30..DLX..(ARL,EUR)

 1
86101-22021

RX30..DLX..EUR;RX30..LHD..STD..EUG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-95800

RX30..HT

 1
86101-22021

RX30..LHD..STD..EUG;MX32,RX30..DLX..(ARL,EUR)

 1
86101-22021

RX30..DLX..EUR;RX30..LHD..STD..EUG

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22100

RX3#..LHD..EUR

 1
86300-22100

RX3#..LHD

 1
86300-22090

RX3#..LHD

 1
86300-95801

RX30..HT

MOTOR TYPE

 1
86300-95800

RX30..HT

MANUAL TYPE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22100

RX3#..LHD..EUR

 1
86300-22100

RX3#..LHD

 1
86300-22090

RX3#..LHD

 1
86300-95801

RX30..HT

MOTOR TYPE

 1
86300-95800

RX30..HT

MANUAL TYPE

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-95801

RX30..HT

MOTOR TYPE

 1
Common parts
90105-06005
90119-06005
90159-40072
90159-50018
90480-16007
