RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)HT

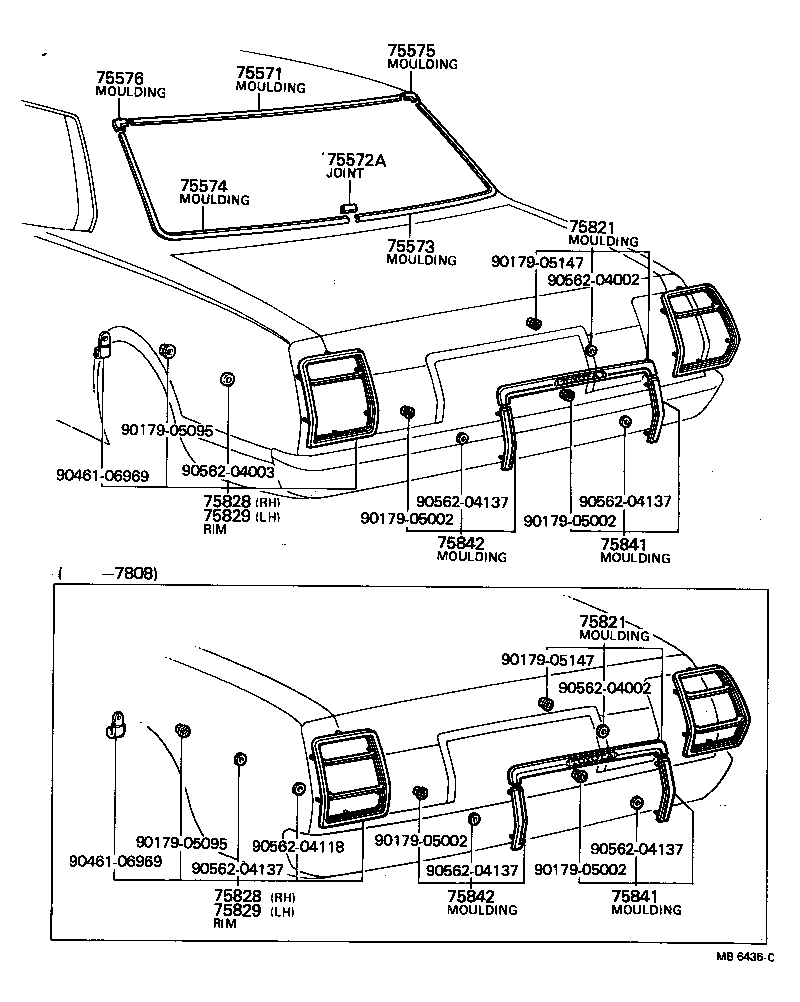

Click highlighted areas on diagram

diagram 75571 75572A 75573 75574 75575 75576 75821 75821 75828 75828 75829 75829 75841 75841 75842 75842 9017905002 9017905002 9017905002 9017905002 9017905095 9017905095 9017905147 9017905147 9046106969 9046106969 9056204002 9056204002 9056204003 9056204118 9056204137 9056204137 9056204137 9056204137 9056204137
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-95801

RX30..HT

 1
75572A - JOINT, BACK WINDOW MOULDING, LOWER
75583-95801

RX30..HT

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-95801

RX30..HT

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-95801

RX30..HT

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-95801

RX30..HT

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-95801

RX30..HT

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-29035

MX32,RX30,TX30

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-29035

MX32,RX30,TX30

 1
75828 - RIM, REAR COMBINATION LAMP OUTER, RH
75901-95890

RX30..HT

 1
75901-29045

RX30..HT

 1
75828 - RIM, REAR COMBINATION LAMP OUTER, RH
75901-95890

RX30..HT

 1
75901-29045

RX30..HT

 1
75829 - RIM, REAR COMBINATION LAMP OUTER, LH
75902-95890

RX30..HT

 1
75902-29045

RX30..HT

 1
75829 - RIM, REAR COMBINATION LAMP OUTER, LH
75902-95890

RX30..HT

 1
75902-29045

RX30..HT

 1
75841 - MOULDING, BODY LOWER BACK PANEL, RH
75803-95890

RX30..HT

 1
75841 - MOULDING, BODY LOWER BACK PANEL, RH
75803-95890

RX30..HT

 1
75842 - MOULDING, BODY LOWER BACK PANEL, LH
75804-95890

RX30..HT

 1
75842 - MOULDING, BODY LOWER BACK PANEL, LH
75804-95890

RX30..HT

 1
Common parts
90179-05002
90179-05095
90179-05147
90461-06969
90562-04002
90562-04003
90562-04118
90562-04137
