RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)HT

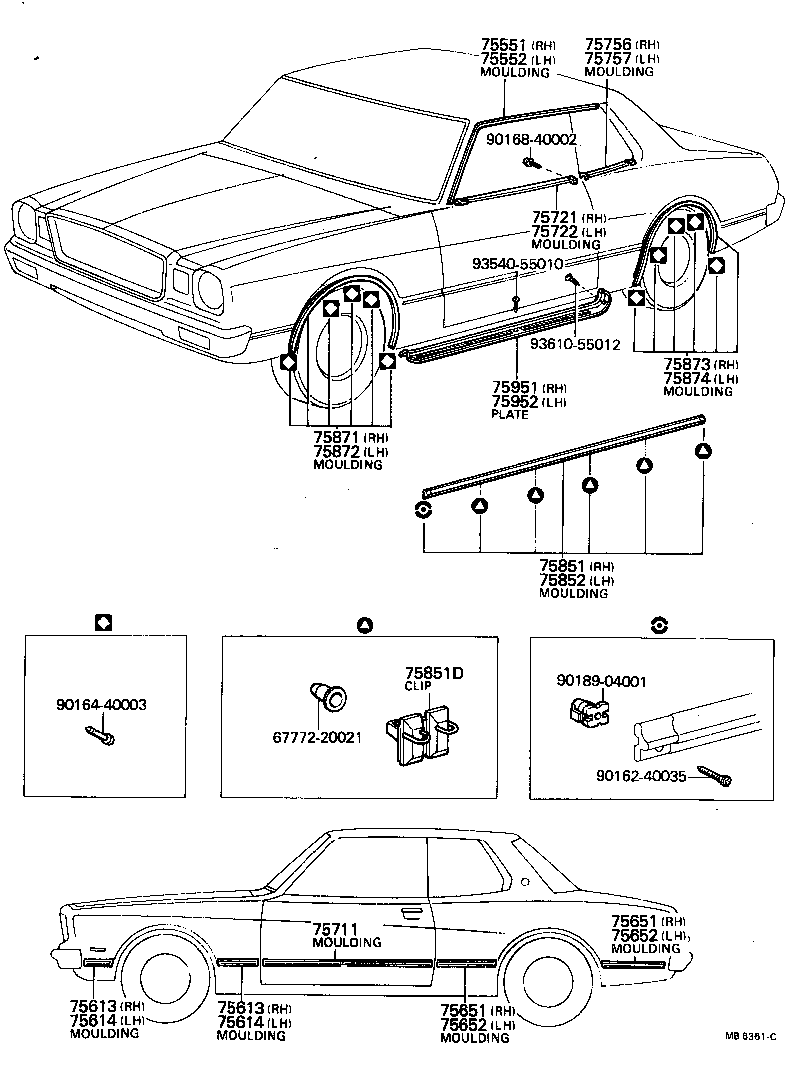

Click highlighted areas on diagram

diagram 6777220021 75551 75552 75613 75613 75614 75614 75651 75651 75652 75652 75711 75721 75722 75756 75757 75851 75851D 75852 75871 75872 75873 75874 75951 75952 9016240035 9016440003 9016840002 9018904001 9354055010 9361055012
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-95800

RX30..HT

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-95800

RX30..HT

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75615-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75615-22021

MX3#,RX3#..DLX,GL,SDX

FOR REAR

 1
75615-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75613-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75613-22021

MX3#,RX3#..DLX,GL,SDX

FOR FRONT

 1
75613-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75615-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75615-22021

MX3#,RX3#..DLX,GL,SDX

FOR REAR

 1
75615-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75613-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75613-22021

MX3#,RX3#..DLX,GL,SDX

FOR FRONT

 1
75613-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75614-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75614-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75616-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75614-22021

MX3#,RX3#..DLX,GL,SDX

FOR FRONT

 1
75616-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75616-22021

MX3#,RX3#..DLX,GL,SDX

FOR REAR

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75614-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75614-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75616-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75614-22021

MX3#,RX3#..DLX,GL,SDX

FOR FRONT

 1
75616-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75616-22021

MX3#,RX3#..DLX,GL,SDX

FOR REAR

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-22021

RX30..HT

FOR REAR

 1
75655-95801

RX30..HT

FOR FRONT

 1
75655-95800

RX30..HT

FOR FRONT

 1
75651-22020

RX30..HT

FOR REAR

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-22021

RX30..HT

FOR REAR

 1
75655-95801

RX30..HT

FOR FRONT

 1
75655-95800

RX30..HT

FOR FRONT

 1
75651-22020

RX30..HT

FOR REAR

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-22021

RX30..HT

FOR REAR

 1
75652-22020

RX30..HT

FOR REAR

 1
75656-95800

RX30..HT

FOR FRONT

 1
75656-95801

RX30..HT

FOR FRONT

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-22021

RX30..HT

FOR REAR

 1
75652-22020

RX30..HT

FOR REAR

 1
75656-95800

RX30..HT

FOR FRONT

 1
75656-95801

RX30..HT

FOR FRONT

 1
75711 - MOULDING, FRONT DOOR OUTSIDE, NO.1
75731-95800

RX30..HT

FOR RH.

 1
75732-95800

RX30..HT

FOR LH.

 1
75731-95801

RX30..HT

FOR RH.

 1
75732-95801

RX30..HT

FOR LH.

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-95800

RX30..HT

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-95800

RX30..HT

 1
75756 - MOULDING, QUARTER BELT, RH
75750-95800

RX30..HT

 1
75757 - MOULDING, QUARTER BELT, LH
75760-95800

RX30..HT

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-29055

MX3#,RX3#..DLX,GL,SDX

 2
75851D - CLIP(FOR ROCKER PANEL MOULDING SET)
75867-22010

MX3#,RX3#..DLX,GL,SDX

 10
75852 - MOULDING, ROCKER PANEL, LH
75860-29055

MX3#,RX3#..DLX,GL,SDX

 2
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75085-29025

MX3#;RX30..5F..GL..SA;RX3#..(DLX,GL)..(EUR,GEN)

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75086-29025

MX3#;RX30..5F..GL..SA;RX3#..(DLX,GL)..(EUR,GEN)

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75087-29025

MX32;RX30..5F..GL..SA;RX30..(DLX,GL)..(EUR,GEN)

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75088-29025

MX32;RX30..5F..GL..SA;RX30..(DLX,GL)..(EUR,GEN)

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-9580003

RX30..HT

GRAY,GRAY,TRIM1#

 1
67913-9580001

RX30..HT

BLACK,BLACK,TRIM2#

 1
67913-9580002

RX30..HT

DARK WINE,RED/MAROON,TRIM3#

 1
67913-9580005

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-9580003

RX30..HT

GRAY,GRAY,TRIM1#

 1
67914-9580001

RX30..HT

BLACK,BLACK,TRIM2#

 1
67914-9580005

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
67914-9580002

RX30..HT

DARK WINE,RED/MAROON,TRIM3#

 1
Common parts
67772-20021
90162-40035
90164-40003
90168-40002
90189-04001
93540-55010
93610-55012
