RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)HT

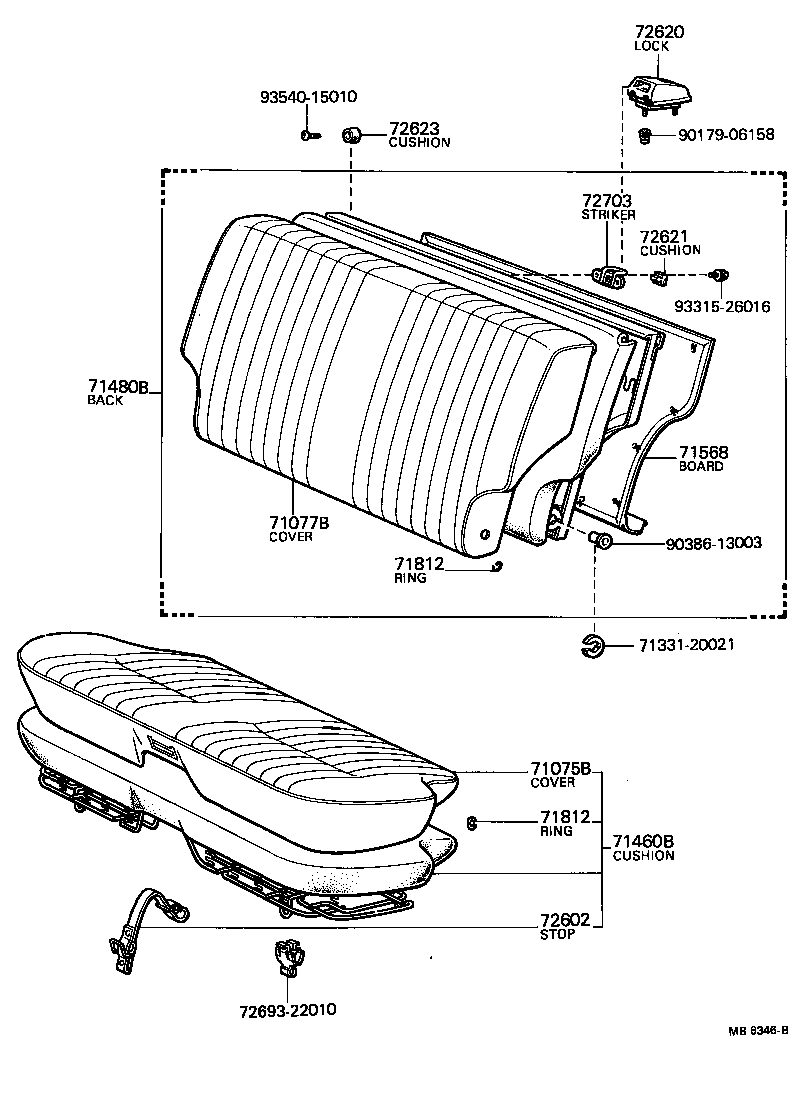

Click highlighted areas on diagram

diagram 71075B 71077B 7133120021 71460B 71480B 71568 71812 71812 72602 72620 72621 72623 7269322010 72703 9017906158 9038613003 9331526016 9354015010
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9580601

RX30..HT

PF.BLACK,BLACK,TRIM2#

 1
71075-9580605

RX30..HT

PF.BEIGE,BEIGE,TRIM4#

 1
71075-9580503

RX30..HT

FB.GRAY,GRAY,TRIM1#

 1
71075-9580202

RX30..HT..DLX

FB.DARK WINE,RED/MAROON,TRIM3#

 1
71075-9580205

RX30..HT..DLX

FB.BEIGE,BEIGE,TRIM4#

 1
71075-9580603

RX30..HT

PF.GRAY,GRAY,TRIM1#

 1
71075-9580501

RX30..HT

FB.BLACK,BLACK,TRIM2#

 1
71075-9580505

RX30..HT

FB.BEIGE,BEIGE,TRIM4#

 1
71075-9580211

RX30..HT..DLX

FB.BLACK,BLACK,TRIM2#

 1
71075-9582002

RX30..HT..DLX

FB.DARK WINE,RED/MAROON,TRIM3#

 1
71075-9582001

RX30..HT..DLX

FB.BLACK,BLACK,TRIM2#

 1
71075-9582005

RX30..HT..DLX

FB.BEIGE,BEIGE,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-9580501

RX30..HT

FB.BLACK,BLACK,TRIM2#

 1
71077-9580505

RX30..HT

FB.BEIGE,BEIGE,TRIM4#

 1
71077-9580605

RX30..HT

PF.BEIGE,BEIGE,TRIM4#

 1
71077-9580503

RX30..HT

FB.GRAY,GRAY,TRIM1#

 1
71077-9580603

RX30..HT

PF.GRAY,GRAY,TRIM1#

 1
71077-9580601

RX30..HT

PF.BLACK,BLACK,TRIM2#

 1
71077-9580202

RX30..HT..DLX

FB.DARK WINE,RED/MAROON,TRIM3#

 1
71077-9580201

RX30..HT..DLX

FB.BLACK,BLACK,TRIM2#

 1
71077-9580205

RX30..HT..DLX

FB.BEIGE,BEIGE,TRIM4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9580503

RX30..HT

FB.GRAY,GRAY,TRIM1#

 1
71460-9580505

RX30..HT

FB.BEIGE,BEIGE,TRIM4#

 1
71460-9580501

RX30..HT

FB.BLACK,BLACK,TRIM2#

 1
71460-9580601

RX30..HT

PF.BLACK,BLACK,TRIM2#

 1
71460-9580603

RX30..HT

PF.GRAY,GRAY,TRIM1#

 1
71460-9580605

RX30..HT

PF.BEIGE,BEIGE,TRIM4#

 1
71460-9580202

RX30..HT..DLX

FB.DARK WINE,RED/MAROON,TRIM3#

 1
71460-9580205

RX30..HT..DLX

FB.BEIGE,BEIGE,TRIM4#

 1
71460-9580201

RX30..HT..DLX

FB.BLACK,BLACK,TRIM2#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-9580505

RX30..HT

FB.BEIGE,BEIGE,TRIM4#

 1
71480-9580601

RX30..HT

PF.BLACK,BLACK,TRIM2#

 1
71480-9580503

RX30..HT

FB.GRAY,GRAY,TRIM1#

 1
71480-9580501

RX30..HT

FB.BLACK,BLACK,TRIM2#

 1
71480-9580603

RX30..HT

PF.GRAY,GRAY,TRIM1#

 1
71480-9580605

RX30..HT

PF.BEIGE,BEIGE,TRIM4#

 1
71480-9580201

RX30..HT..DLX

FB.BLACK,BLACK,TRIM2#

 1
71480-9580205

RX30..HT..DLX

FB.BEIGE,BEIGE,TRIM4#

 1
71480-9580202

RX30..HT..DLX

FB.DARK WINE,RED/MAROON,TRIM3#

 1
71568 - BOARD, REAR SEAT BACK
71708-9580102

RX30..HT

DARK WINE,RED/MAROON,TRIM3#

 1
71708-9580005

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
71708-9580105

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
71708-9580101

RX30..HT

BLACK,BLACK,TRIM2#

 1
71708-9580003

RX30..HT

GRAY,GRAY,TRIM1#,2#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

MX3#,RX3#,TX30

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

MX3#,RX3#,TX30

 1
72602 - STOP SUB-ASSY, REAR SEAT BACK, LOWER
72602-9580001

RX30..HT

BLACK,BLACK,TRIM2#

 1
72602-9580003

RX30..HT

GRAY,GRAY,TRIM1#

 1
72602-9580002

RX30..HT

DARK WINE,RED/MAROON,TRIM3#

 1
72602-9580005

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
72620 - LOCK ASSY, REAR SEAT BACK
72630-9580002

RX30..HT

DARK WINE,RED/MAROON,TRIM3#

 1
72630-9580003

RX30..HT

GRAY,GRAY,TRIM1#

 1
72630-9580005

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
72630-9580001

RX30..HT

BLACK,BLACK,TRIM2#

 1
72621 - CUSHION, REAR SEAT BACK, NO.1
72621-95800

RX30..HT

 1
72623 - CUSHION, REAR SEAT BACK, NO.2
90541-13001

RX30..HT

 2
72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER
72601-95800

RX30..HT

 1
Common parts
71331-20021
72693-22010
90179-06158
90386-13003
93315-26016
93540-15010
