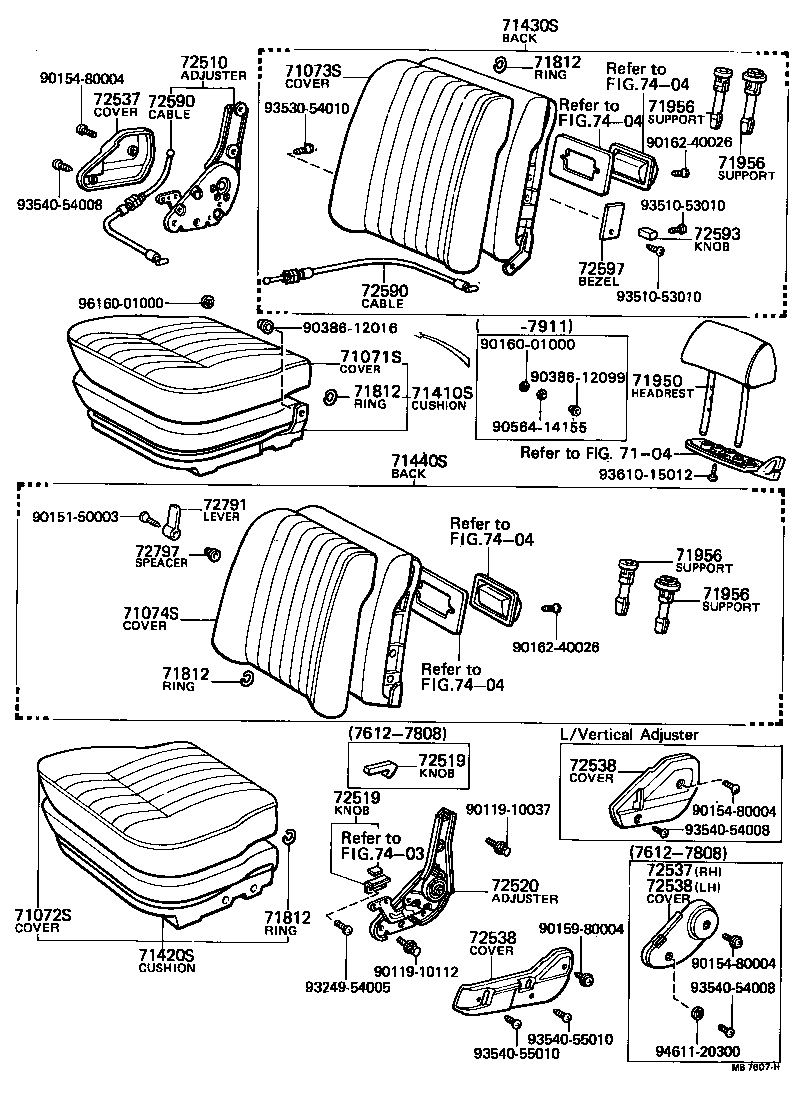

RX30L-SHDW (1976)
Toyota Cressida
(7612-8008)HT..LHD..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2233001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-2233005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2233003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2237102 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2237105 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2237101 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2213003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2213001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-2213005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2216105 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2216101 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-2216102 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2245003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2245001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2245005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2267005 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2248102 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2267003 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2267001 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2248105 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2248101 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2249003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2249001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2245105 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2249005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2257001 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2245102 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2257005 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2245101 |
RX30..5F..GL..SA;MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2257003 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2241001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2241003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2241005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2243003 |
RX3#..(3FC,4F,5F)..EUG PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2241102 |
RX3#..LHD..(3FC,4F,5F)..DLX FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2241101 |
RX3#..LHD..(3FC,4F,5F)..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2241105 |
RX3#..LHD..(3FC,4F,5F)..DLX FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2243005 |
RX3#..(3FC,4F,5F)..EUG PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2243001 |
RX3#..(3FC,4F,5F)..EUG PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-9580505 |
RX30..HT..LHD..DLX FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-9580501 |
RX30..HT..LHD..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-9580502 |
RX30..HT..LHD..DLX FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2218003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2218005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2220003 |
RX3#..(3FC,4F,5F)..EUG PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2220001 |
RX3#..(3FC,4F,5F)..EUG PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-2218001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-2220005 |
RX3#..(3FC,4F,5F)..EUG PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2227001 |
RX3#..LHD..DLX..EUR FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-2227002 |
RX3#..LHD..DLX..EUR FB.DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2227005 |
RX3#..LHD..DLX..EUR FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9580601 |
RX30..HT..LHD FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-9580605 |
RX30..HT..LHD FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-9580805 |
RX30..HT..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-9580803 |
RX30..HT..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71430-9580801 |
RX30..HT..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-9580603 |
RX30..HT..LHD FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71430-9581505 |
RX30..HT..LHD FB.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-9581701 |
RX30..HT..LHD PF.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-9581705 |
RX30..HT..LHD PF.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-9581501 |
RX30..HT..LHD FB.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-9581503 |
RX30..HT..LHD FB.W/HEADREST,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-9581703 |
RX30..HT..LHD PF.W/HEADREST,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-9582705 |
RX30..HT..LHD..DLX FB.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-9582701 |
RX30..HT..LHD..DLX FB.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-9582702 |
RX30..HT..LHD..DLX FB.W/HEADREST,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9580605 |
RX30..HT..LHD FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-9580603 |
RX30..HT..LHD FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71440-9580601 |
RX30..HT..LHD FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-9580805 |
RX30..HT..LHD PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-9581705 |
RX30..HT..LHD PF.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-9581701 |
RX30..HT..LHD PF.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-9581501 |
RX30..HT..LHD FB.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-9581703 |
RX30..HT..LHD PF.W/HEADREST,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-9580803 |
RX30..HT..LHD PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71440-9580801 |
RX30..HT..LHD PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-9581505 |
RX30..HT..LHD FB.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-9581503 |
RX30..HT..LHD FB.W/HEADREST,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-9582705 |
RX30..HT..LHD..DLX FB.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-9582702 |
RX30..HT..LHD..DLX FB.W/HEADREST,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-9582701 |
RX30..HT..LHD..DLX FB.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2224001 |
RX30..HT..DLX..EUG L/BELT HANGER,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2224003 |
RX30..HT L/BELT HANGER,GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2224002 |
RX30..HT..DLX..EUG L/BELT HANGER,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2224005 |
RX30..HT..DLX..EUG L/BELT HANGER,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
MX3#,RX3# L/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002002 |
MX3#,RX3# W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
MX3#,RX3# L/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002002 |
MX3#,RX3# W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
MX3#,RX3# L/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002002 |
MX3#,RX3# W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002002 |
MX3#,RX3# L/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002002 |
MX3#,RX3# W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95800 |
RX30..HT..LHD |
1 | ||
| 72510-95801 |
RX30..HT..LHD |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005001 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72526-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72525-2005005 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004002 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004001 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005002 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004005 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. BEIGE,BEIGE,TRIM4# |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005001 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72526-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72525-2005005 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004002 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004001 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005002 |
MX3#,RX3#,TX30..3FC,4F,5F FOR RH. DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004005 |
MX3#,RX3#,TX30..3FC,4F,5F FOR LH. BEIGE,BEIGE,TRIM4# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-20110 |
RX30..HT..LHD |
1 | ||
| 72520-22050 |
RX30..HT..LHD |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71821-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71821-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71821-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-9580001 |
RX30..HT..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 71811-9580005 |
RX30..HT..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-9580002 |
RX30..HT..LHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71821-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71821-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71821-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-9580001 |
RX30..HT..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 71811-9580005 |
RX30..HT..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-9580002 |
RX30..HT..LHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71822-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71822-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2001002 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2001005 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71822-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002005 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2001001 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2002002 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2002001 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71822-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71822-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2001002 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2001005 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71822-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002005 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2001001 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2002002 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2002001 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71822-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71822-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2001002 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2001005 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71822-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002005 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2001001 |
RX3#..LHD..(3FC,4F,5F)..(DLX,GL) W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2002002 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2002001 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) L/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72210-95500 |
RX30..HT FOR SEAT CUSHION SIDE |
1 | ||
| 72580-95800 |
RX30..HT FOR SEAT CUSHION SIDE |
1 | ||
| 72210-20010 |
RX30..HT FOR SEAT CUSHION SIDE |
1 | ||
| 72590-95800 |
RX30..HT FOR SEAT BACK |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72210-95500 |
RX30..HT FOR SEAT CUSHION SIDE |
1 | ||
| 72580-95800 |
RX30..HT FOR SEAT CUSHION SIDE |
1 | ||
| 72210-20010 |
RX30..HT FOR SEAT CUSHION SIDE |
1 | ||
| 72590-95800 |
RX30..HT FOR SEAT BACK |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-3001005 |
RX30..HT BEIGE,BEIGE,TRIM4# |
1 | ||
| 72593-3001002 |
RX30..HT DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72593-3001001 |
RX30..HT BLACK,BLACK,TRIM2# |
1 | ||
| 72597 - BEZEL, RECLINING REMOTE CONTROL | ||||
| 72597-3001001 |
RX30..HT BLACK,BLACK,TRIM2# |
1 | ||
| 72597-3001002 |
RX30..HT DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72597-3001005 |
RX30..HT BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2201005 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-2201001 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72791-2201002 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-2201001 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72797-2201005 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72797-2201002 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90119-10037 | ||||
| 90119-10112 | ||||
| 90151-50003 | ||||
| 90154-80004 | ||||
| 90159-80004 | ||||
| 90160-01000 | ||||
| 90162-40026 | ||||
| 90386-12016 | ||||
| 90386-12099 | ||||
| 90564-14155 | ||||
| 93249-54005 | ||||
| 93510-53010 | ||||
| 93530-54010 | ||||
| 93540-54008 | ||||
| 93540-55010 | ||||
| 93610-15012 | ||||
| 94611-20300 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
