RX30L-SHDW (1976)
Toyota Cressida
Production
Dec 1976
-
Aug 1980
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)MX32,RX30,TX30

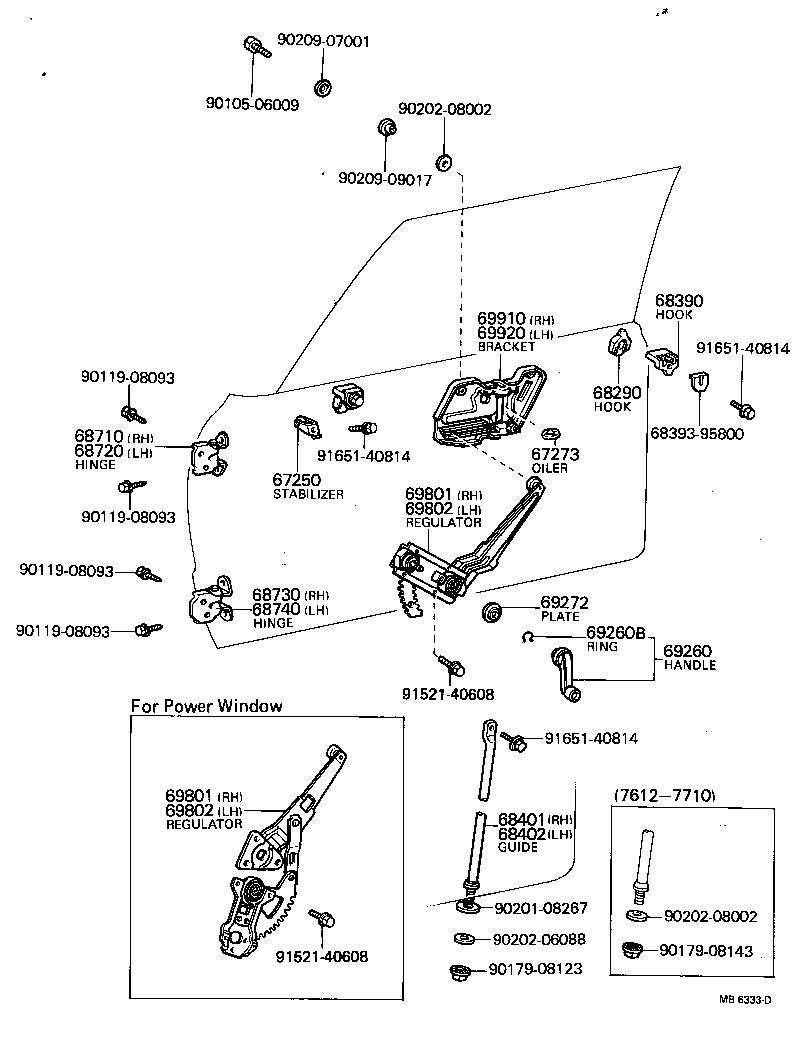

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-22030 |
MX3#,RX3#,TX30 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-22020 |
MX3#,RX3#,TX30 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-22030 |
MX3#,RX3#,TX30 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-22030 |
MX3#,RX3#,TX30 |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-2202005 |
MX3#,RX3#,TX30 BEIGE,BEIGE,TRIM4# |
2 | ||
| 69260-2202002 |
MX3#,RX3#,TX30 DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 69260-2202001 |
MX3#,RX3#,TX30 BLACK,BLACK,TRIM1#,2# |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01002 |
MX3#,RX3#,TX30 |
2 | ||
| 69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE | ||||
| 69272-30010 |
MX3#,RX3#,TX30 |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-95800 |
RX30..HT |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-95800 |
RX30..HT |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-95800 |
RX30..HT |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-95800 |
RX30..HT |
1 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 91521-40608 | ||||
| 91611-40610 | ||||
(7612-8008)HT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67250 - STABILIZER ASSY, FRONT DOOR GLASS | ||||
| 67250-95800 |
RX30..HT |
2 | ||
| 67273 - OILER, FRONT DOOR WINDOW BAR | ||||
| 67271-95800 |
RX30..HT |
2 | ||
| 68290 - HOOK ASSY, DOOR GLASS MALE | ||||
| 68290-95800 |
RX30..HT |
4 | ||
| 68390 - HOOK, DOOR GLASS FEMALE | ||||
| 68390-95800 |
RX30..HT |
4 | ||
| 68401 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 67401-95800 |
RX30..HT |
1 | ||
| 68402 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 67401-95800 |
RX30..HT |
1 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-22030 |
MX3#,RX3#,TX30 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-22020 |
MX3#,RX3#,TX30 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-22030 |
MX3#,RX3#,TX30 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-22030 |
MX3#,RX3#,TX30 |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-2202005 |
MX3#,RX3#,TX30 BEIGE,BEIGE,TRIM4# |
2 | ||
| 69260-2202002 |
MX3#,RX3#,TX30 DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 69260-2202001 |
MX3#,RX3#,TX30 BLACK,BLACK,TRIM1#,2# |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01002 |
MX3#,RX3#,TX30 |
2 | ||
| 69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE | ||||
| 69272-30010 |
MX3#,RX3#,TX30 |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-95800 |
RX30..HT |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-95800 |
RX30..HT |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-95800 |
RX30..HT |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-95800 |
RX30..HT |
1 | ||
| 69910 - BRACKET ASSY, FRONT DOOR GLASS, RH | ||||
| 69910-95800 |
RX30..HT |
1 | ||
| 69920 - BRACKET ASSY, FRONT DOOR GLASS, LH | ||||
| 69920-95800 |
RX30..HT |
1 | ||
| Common parts | ||||
| 68393-95800 | ||||
| 90105-06009 | ||||
| 90119-08093 | ||||
| 90179-08123 | ||||
| 90179-08143 | ||||
| 90201-08267 | ||||
| 90202-06088 | ||||
| 90202-08002 | ||||
| 90209-07001 | ||||
| 90209-09017 | ||||
| 91521-40608 | ||||
| 91651-40814 | ||||
