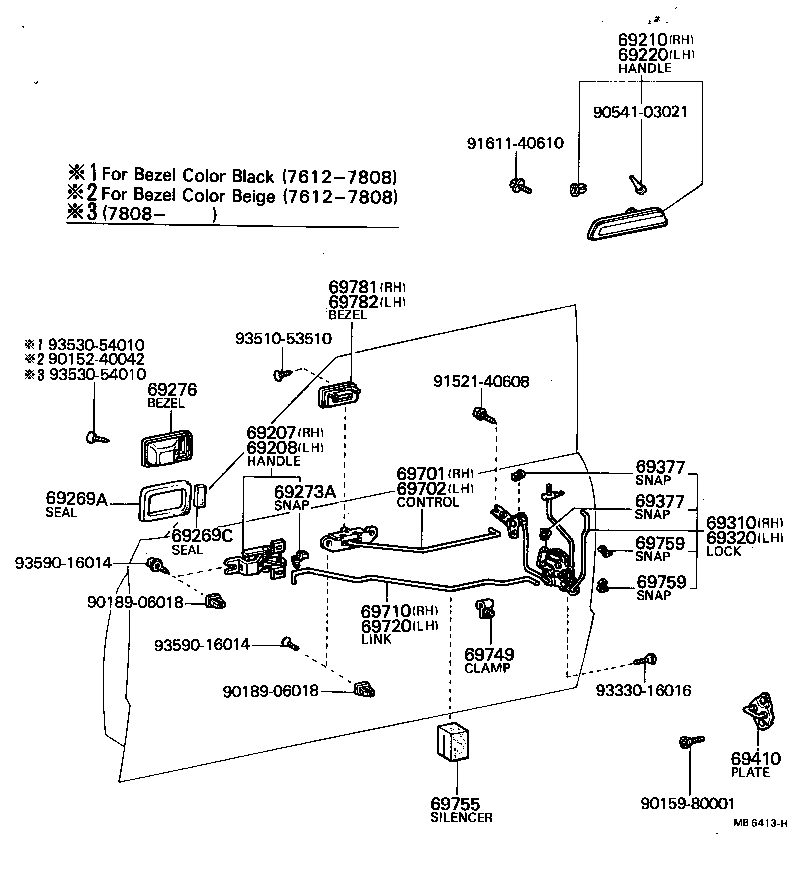

RX30L-SHDW (1976)
Toyota Cressida
(7612-8008)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69207-20030 |
MX3#,RX3#,TX30 |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69208-20020 |
MX3#,RX3#,TX30 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-22030 |
MX3#,RX3#,TX30 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-22030 |
MX3#,RX3#,TX30 |
1 | ||
| 69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR) | ||||
| 69269-12010 |
MX3#,RX3#,TX30 |
2 | ||
| 69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR) | ||||
| 69289-12010 |
MX3#,RX3#,TX30 |
2 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69273-30020 |
MX3#,RX3#,TX30 |
2 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-2203001 |
MX3#,RX3#..DLX,STD BLACK,BLACK,TRIM1#,2# |
2 | ||
| 69277-2203005 |
MX3#,RX3#..DLX,STD BEIGE,BEIGE,TRIM4# |
2 | ||
| 69277-2203005 |
MX3#,RX3#,TX30 BEIGE,BEIGE,TRIM4# |
2 | ||
| 69277-2203002 |
MX3#,RX3#,TX30 DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 69277-2203001 |
MX3#,RX3#,TX30 BLACK,BLACK,TRIM2# |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-95800 |
RX30..HT |
1 | ||
| 69310-95802 |
RX30..HT |
1 | ||
| 69310-95806 |
RX30..HT |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95801 |
RX30..HT |
1 | ||
| 69320-95804 |
RX30..HT..DLX |
1 | ||
| 69320-95809 |
RX30..HT..DLX |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69377-30020 |
RX30..HT |
4 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69377-30020 |
RX30..HT |
4 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-22020 |
MX3#,RX3#,TX30 |
2 | ||
| 69701 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, RH | ||||
| 69710-9580005 |
RX30..HT BEIGE,BEIGE,TRIM4# |
1 | ||
| 69710-9580001 |
RX30..HT BLACK,BLACK,TRIM1#,2# |
1 | ||
| 69710-9580002 |
RX30..HT DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 69702 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, LH | ||||
| 69720-9580002 |
RX30..HT DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 69720-9580005 |
RX30..HT BEIGE,BEIGE,TRIM4# |
1 | ||
| 69720-9580001 |
RX30..HT BLACK,BLACK,TRIM1#,2# |
1 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-95800 |
RX30..HT |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-95801 |
RX30..HT |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12030 |
RX30..HT |
2 | ||
| 69749-12010 |
RX30..HT |
4 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-95500 |
RX30..HT |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-12030 |
MX3#,RX3#,TX30 |
4 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-12030 |
MX3#,RX3#,TX30 |
4 | ||
| 69781 - BEZEL, DOOR LOCKING, RH | ||||
| 69781-3002105 |
RX30..HT BEIGE,BEIGE,TRIM4# |
1 | ||
| 69781-3002101 |
RX30..HT BLACK,BLACK,TRIM1#,2# |
1 | ||
| 69781-3002102 |
RX30..HT DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 69782 - BEZEL, DOOR LOCKING, LH | ||||
| 69782-3002101 |
RX30..HT BLACK,BLACK,TRIM1#,2# |
1 | ||
| 69782-3002105 |
RX30..HT BEIGE,BEIGE,TRIM4# |
1 | ||
| 69782-3002102 |
RX30..HT DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90152-40042 | ||||
| 90159-80001 | ||||
| 90189-06018 | ||||
| 90541-03021 | ||||
| 91521-40608 | ||||
| 91611-40610 | ||||
| 93330-16016 | ||||
| 93510-53510 | ||||
| 93530-54010 | ||||
| 93590-16014 | ||||
