RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)HT

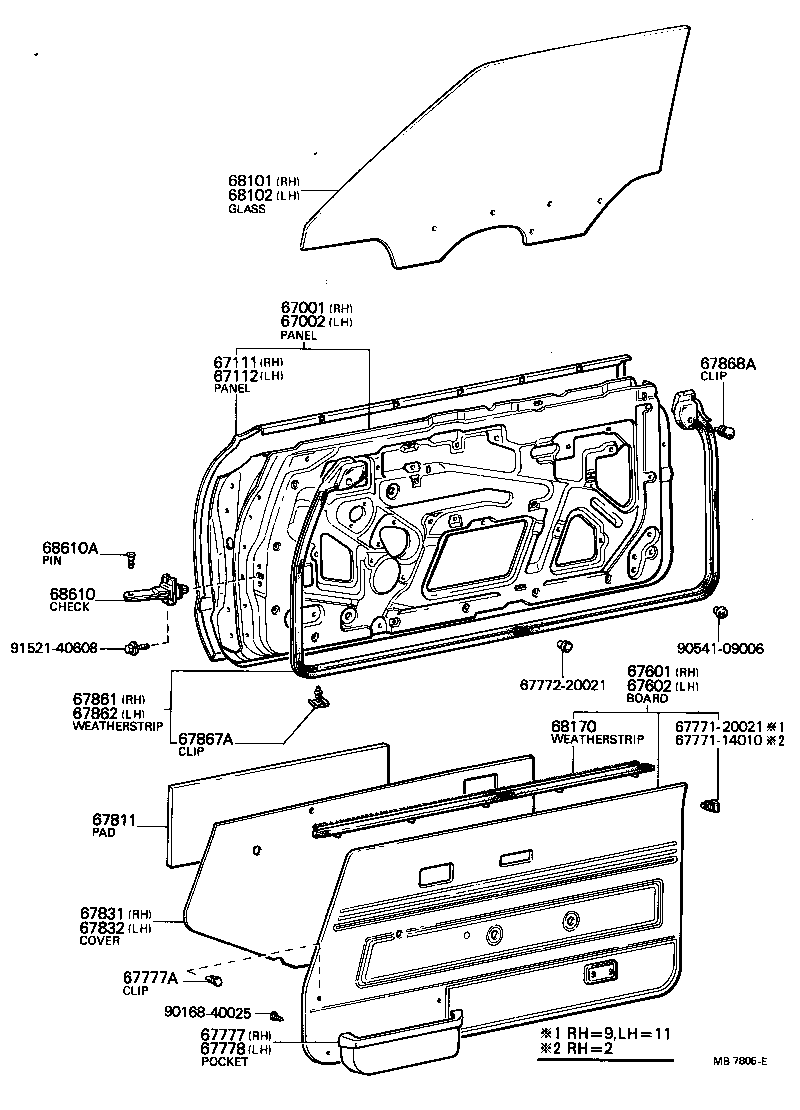

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67601 67602 6777114010 6777120021 6777220021 67777 67777A 67778 67811 67831 67832 67861 67862 67867A 67868A 68101 68102 68170 68610 68610A 9016840025 9054109006 9152140608
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-95802

RX30..HT

W/MIRROR

 1
67001-95800

RX30..HT

 1
67001-95804

RX30..HT..EUG

W/MIRROR

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-95800

RX30..HT

 1
67002-95802

RX30..HT

W/MIRROR

 1
67002-95804

RX30..HT..LHD

W/MIRROR

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-95800

RX30..HT

 1
67111-95801

RX30..HT

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-95800

RX30..HT

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9580401

RX30..HT

BLACK,BLACK,TRIM2#

 1
67610-9580403

RX30..HT

GRAY,GRAY,TRIM1#

 1
67610-9580405

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
67610-9582105

RX30..HT..DLX

BEIGE,BEIGE,TRIM4#

 1
67610-9582101

RX30..HT..DLX

BLACK,BLACK,TRIM2#

 1
67610-9582102

RX30..HT..DLX

DARK WINE,RED/MAROON,TRIM3#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9580005

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
67620-9580003

RX30..HT

GRAY,GRAY,TRIM1#

 1
67620-9580001

RX30..HT

BLACK,BLACK,TRIM2#

 1
67620-9582401

RX30..HT..DLX

BLACK,BLACK,TRIM2#

 1
67620-9582402

RX30..HT..DLX

DARK WINE,RED/MAROON,TRIM3#

 1
67620-9582405

RX30..HT..DLX

BEIGE,BEIGE,TRIM4#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-2204005

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

BEIGE,BEIGE,TRIM4#

 1
67777-2204002

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

DARK WINE,RED/MAROON,TRIM3#

 1
67777-2204001

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67777A - CLIP, FRONT DOOR POCKET
90467-0901001

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

BLACK,BLACK,TRIM2#

 2
90467-0901005

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

BEIGE,BEIGE,TRIM4#

 2
90467-0901002

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

DARK WINE,RED/MAROON,TRIM3#

 2
67778 - POCKET, FRONT DOOR TRIM, LH
67778-2203005

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

BEIGE,BEIGE,TRIM4#

 1
67778-2203001

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67778-2203002

MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)

DARK WINE,RED/MAROON,TRIM3#

 1
67811 - PAD, FRONT DOOR SILENCER
67811-20060

RX30..HT

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-95800

RX30..HT

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-95800

RX30..HT

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-95800

RX30..HT

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-95800

RX30..HT

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67868-30040

MX3#,RX3#,TX30

 1
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67868-30030

RX30..HT

 10
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-95800

RX30..HT

TN.TP.T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-95800

RX30..HT

TN.TP.T=4.0

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-95800

RX30..HT

 2
68610 - CHECK ASSY, FRONT DOOR
68610-22010

MX3#,RX3#,TX30

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22010

MX3#,RX3#,TX30

 2
Common parts
67771-14010
67771-20021
67772-20021
90168-40025
90541-09006
91521-40608
