RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)HT..DLX

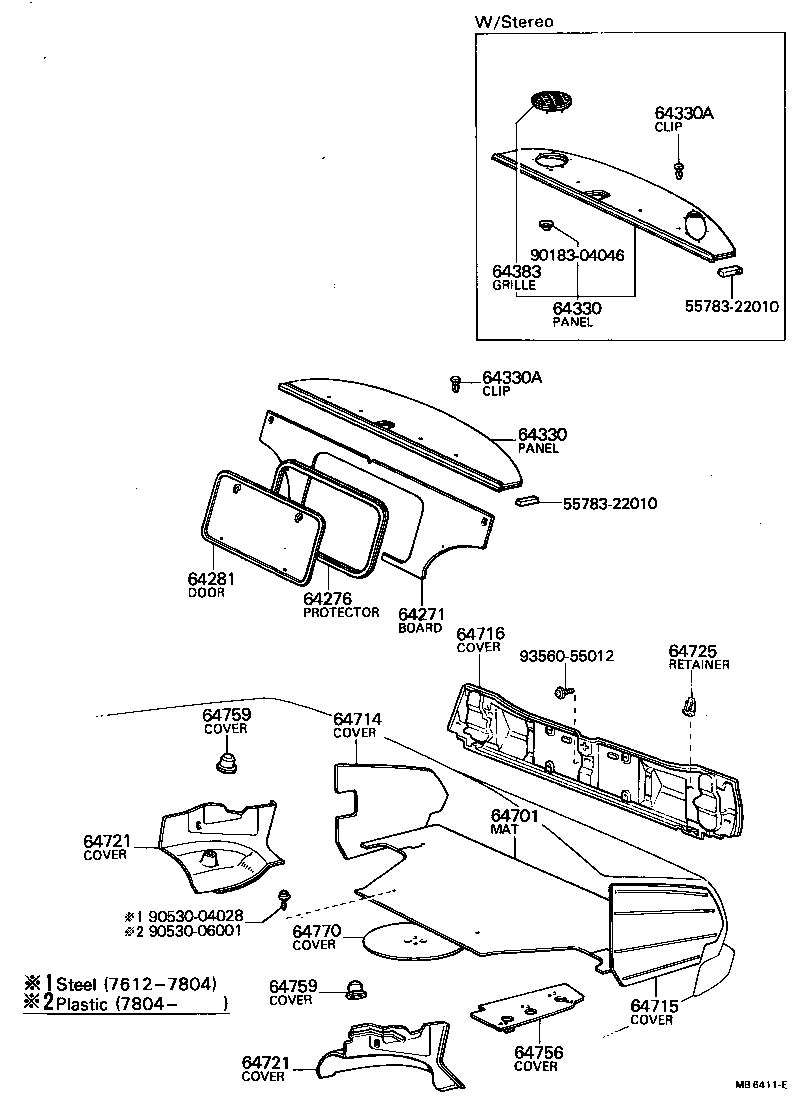

Click highlighted areas on diagram

diagram 5578322010 5578322010 64271 64276 64281 64330 64330 64330A 64330A 64383 64701 64714 64715 64716 64721 64721 64725 64756 64759 64759 64770 9018304046 9053004028 9053006001 9356055012
Part # Description Qty Price
64271 - BOARD, ROOM PARTITION, NO.1
64271-9580105

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
64271-9580103

RX30..HT

GRAY,GRAY,TRIM1#,2#

 1
64271-9580101

RX30..HT..DLX

BLACK,BLACK,TRIM2#

 1
64271-9580115

RX30..HT..DLX

BEIGE,BEIGE,TRIM4#

 1
64271-9580102

RX30..HT..DLX

DARK WINE,RED/MAROON,TRIM3#

 1
64276 - PROTECTOR, ROOM PARTITION DOOR OPENING
64275-95800

RX30..HT

 1
64281 - DOOR, ROOM PARTITION
64280-9580002

RX30..HT..DLX

DARK WINE,RED/MAROON,TRIM3#

 1
64280-9580003

RX30..HT

GRAY,GRAY,TRIM1#,2#

 1
64280-9580015

RX30..HT..DLX

BEIGE,BEIGE,TRIM4#

 1
64280-9580005

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
64280-9580001

RX30..HT..DLX

BLACK,BLACK,TRIM2#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-9580401

RX30..HT

W/STEREO,BLACK,BLACK,TRIM2#

 1
64330-9580603

RX30..HT..EUG

W/SEAT BELT & STEREO,GRAY,TRIM1#

 1
64330-9580405

RX30..HT

W/STEREO,BEIGE,BEIGE,TRIM4#

 1
64330-9580403

RX30..HT

W/STEREO,GRAY,GRAY,TRIM1#

 1
64330-9580605

RX30..HT..EUG

W/SEAT BELT & STEREO,BEIGE,TRIM4#

 1
64330-9580103

RX30..HT

GRAY,GRAY,TRIM1#

 1
64330-9580601

RX30..HT..EUG

W/SEAT BELT & STEREO,BLACK,TRIM2#

 1
64330-9580503

RX30..HT..EUG

W/SEAT BELT,GRAY,GRAY,TRIM1#

 1
64330-9580101

RX30..HT..DLX

BLACK,BLACK,TRIM2#

 1
64330-9580105

RX30..HT..DLX

BEIGE,BEIGE,TRIM4#

 1
64330-9580505

RX30..HT..DLX..EUG

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
64330-9580501

RX30..HT..DLX..EUG

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
64330-9580502

RX30..HT..DLX..EUG

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

 1
64330-9580102

RX30..HT..DLX

DARK WINE,RED/MAROON,TRIM3#

 1
64330-9580401

RX30..HT..DLX

W/STEREO,BLACK,BLACK,TRIM2#

 1
64330-9580402

RX30..HT..DLX

W/STEREO,DARK WINE,RED/MAROON,TRIM3#

 1
64330-9581001

RX30..HT..DLX..EUG

FOR FRENCH SPEC.,BLACK,BLACK,TRIM2#

 1
64330-9580405

RX30..HT..DLX

W/STEREO,BEIGE,BEIGE,TRIM4#

 1
64330-9581005

RX30..HT..DLX..EUG

FOR FRENCH SPEC.,BEIGE,BEIGE,TRIM4#

 1
64330-9581002

RX30..HT..DLX..EUG

FOR FRENCH SPEC.,DARK WINE,RED/MAROON,TRIM3#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-9580401

RX30..HT

W/STEREO,BLACK,BLACK,TRIM2#

 1
64330-9580603

RX30..HT..EUG

W/SEAT BELT & STEREO,GRAY,TRIM1#

 1
64330-9580405

RX30..HT

W/STEREO,BEIGE,BEIGE,TRIM4#

 1
64330-9580403

RX30..HT

W/STEREO,GRAY,GRAY,TRIM1#

 1
64330-9580605

RX30..HT..EUG

W/SEAT BELT & STEREO,BEIGE,TRIM4#

 1
64330-9580103

RX30..HT

GRAY,GRAY,TRIM1#

 1
64330-9580601

RX30..HT..EUG

W/SEAT BELT & STEREO,BLACK,TRIM2#

 1
64330-9580503

RX30..HT..EUG

W/SEAT BELT,GRAY,GRAY,TRIM1#

 1
64330-9580101

RX30..HT..DLX

BLACK,BLACK,TRIM2#

 1
64330-9580105

RX30..HT..DLX

BEIGE,BEIGE,TRIM4#

 1
64330-9580505

RX30..HT..DLX..EUG

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
64330-9580501

RX30..HT..DLX..EUG

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
64330-9580502

RX30..HT..DLX..EUG

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

 1
64330-9580102

RX30..HT..DLX

DARK WINE,RED/MAROON,TRIM3#

 1
64330-9580401

RX30..HT..DLX

W/STEREO,BLACK,BLACK,TRIM2#

 1
64330-9580402

RX30..HT..DLX

W/STEREO,DARK WINE,RED/MAROON,TRIM3#

 1
64330-9581001

RX30..HT..DLX..EUG

FOR FRENCH SPEC.,BLACK,BLACK,TRIM2#

 1
64330-9580405

RX30..HT..DLX

W/STEREO,BEIGE,BEIGE,TRIM4#

 1
64330-9581005

RX30..HT..DLX..EUG

FOR FRENCH SPEC.,BEIGE,BEIGE,TRIM4#

 1
64330-9581002

RX30..HT..DLX..EUG

FOR FRENCH SPEC.,DARK WINE,RED/MAROON,TRIM3#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0914401

RX30..HT

BLACK,BLACK,TRIM2#

 4
90467-0914405

RX30..HT

BEIGE,BEIGE,TRIM4#

 4
90467-0914403

RX30..HT

GRAY,GRAY,TRIM1#

 4
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0914401

RX30..HT

BLACK,BLACK,TRIM2#

 4
90467-0914405

RX30..HT

BEIGE,BEIGE,TRIM4#

 4
90467-0914403

RX30..HT

GRAY,GRAY,TRIM1#

 4
64383 - GRILLE, SPEAKER, REAR
64383-2201102

MX32,RX30..RHD;RX30..LHD..EUG;RX30..LHD..GEN

DARK WINE,RED/MAROON,TRIM3#

 2
64383-2201101

MX32,RX30..RHD;RX30..LHD..EUG;RX30..LHD..GEN

BLACK,BLACK,TRIM2#

 2
64383-2201105

MX32,RX30..RHD;RX30..LHD..EUG;RX30..LHD..GEN

BEIGE,BEIGE,TRIM4#

 2
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64701-22070

MX32,RX30..DLX

 1
64701-22070

MX32,RX30..(DLX,STD)..(ARL,EUR,GEN)

 1
64701-22070

MX32,RX30..DLX,STD

 1
64714 - COVER, LUGGAGE COMPARTMENT, RH
64714-95800

RX30..HT

 1
64715 - COVER, LUGGAGE COMPARTMENT, LH
64715-95800

RX30..HT

 1
64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER
64716-95802

RX30..HT..DLX..EUG

 1
64716-95804

RX30..HT..EUG

FOR WEST GERMANY SPEC.

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64072-95800

RX30..HT..DLX

FOR LH.

 1
64721-95800

RX30..HT..DLX

FOR RH.

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64072-95800

RX30..HT..DLX

FOR LH.

 1
64721-95800

RX30..HT..DLX

FOR RH.

 1
64725 - RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
64725-22010

RX30..DLX..EUR

 8
64756 - COVER, LUGGAGE COMPARTMENT SIDE
58704-22010

MX32,RX30,TX30

FOR LH.

 1
58703-22020

MX32,RX30,TX30

FOR RH.

 1
64759 - COVER, SHOCK ABSORBER HEAD
58731-22020

MX32,RX30,TX30

 2
64759 - COVER, SHOCK ABSORBER HEAD
58731-22020

MX32,RX30,TX30

 2
64770 - COVER ASSY, SPARE WHEEL
64770-20030

MX32,RX30

 1
64770-30050

MX32,RX30

 1
64770-14010

MX32,RX30,TX30

 1
Common parts
55783-22010
90183-04046
90530-04028
90530-06001
93560-55012
