RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)HT

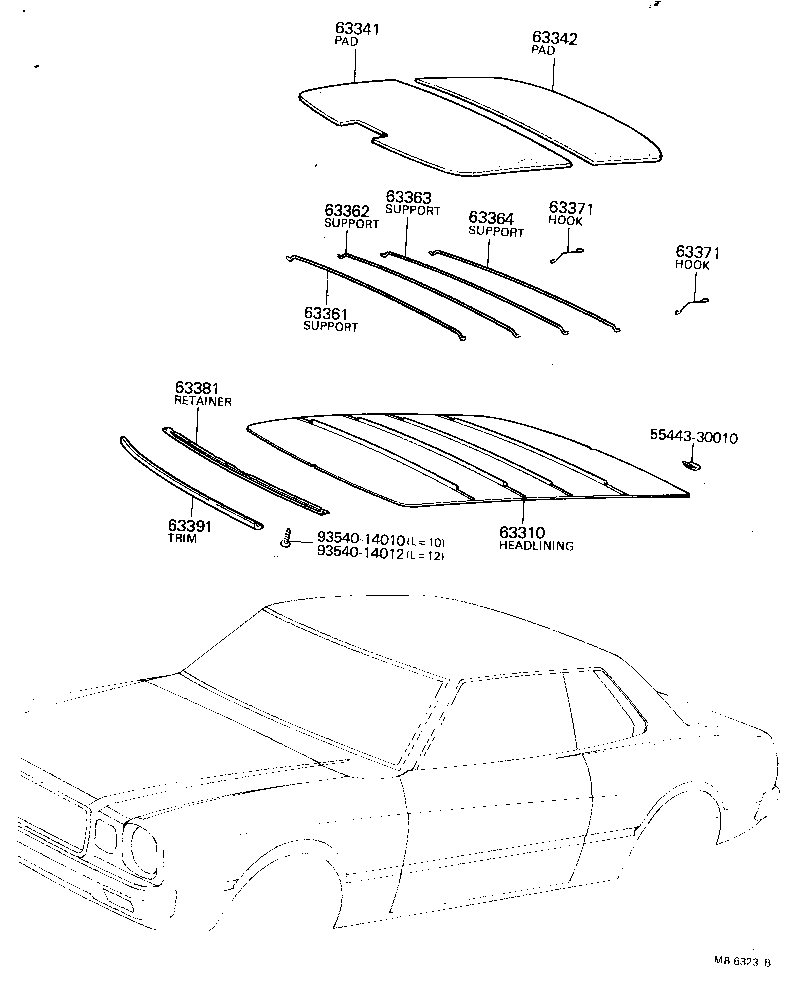

Click highlighted areas on diagram

diagram 5544330010 63310 63341 63342 63361 63362 63363 63364 63371 63371 63381 63391 9354014010 9354014012
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-9580005

RX30..HT..DLX

BEIGE,BEIGE,TRIM4#

 1
63310-9580008

RX30..HT..DLX

IVORY,IVORY,TRIM2#,3#

 1
63310-9580003

RX30..HT

GRAY,GRAY,TRIM1#,2#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-95801

RX30..HT

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-95800

RX30..HT

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-95800

RX30..HT

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-95800

RX30..HT

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-95800

RX30..HT

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63361-95800

RX30..HT

 1
63371 - HOOK, ROOF HEADLINING SUPPORT
63372-12010

RX30..HT

 2
63371 - HOOK, ROOF HEADLINING SUPPORT
63372-12010

RX30..HT

 2
63381 - RETAINER, HEADLINING, FRONT
63382-95800

RX30..HT

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-2201005

MX3#,RX3#,TX30

BEIGE,BEIGE,TRIM4#

 1
63391-2201008

MX3#,RX3#,TX30

IVORY,IVORY,TRIM2#,3#

 1
63391-2201003

MX3#,RX3#

GRAY,GRAY,TRIM1#,2#

 1
Common parts
55443-30010
93540-14010
93540-14012
