RX30L-SHDW (1976)
Toyota Cressida
Production
Dec 1976
-
Aug 1980
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)HT

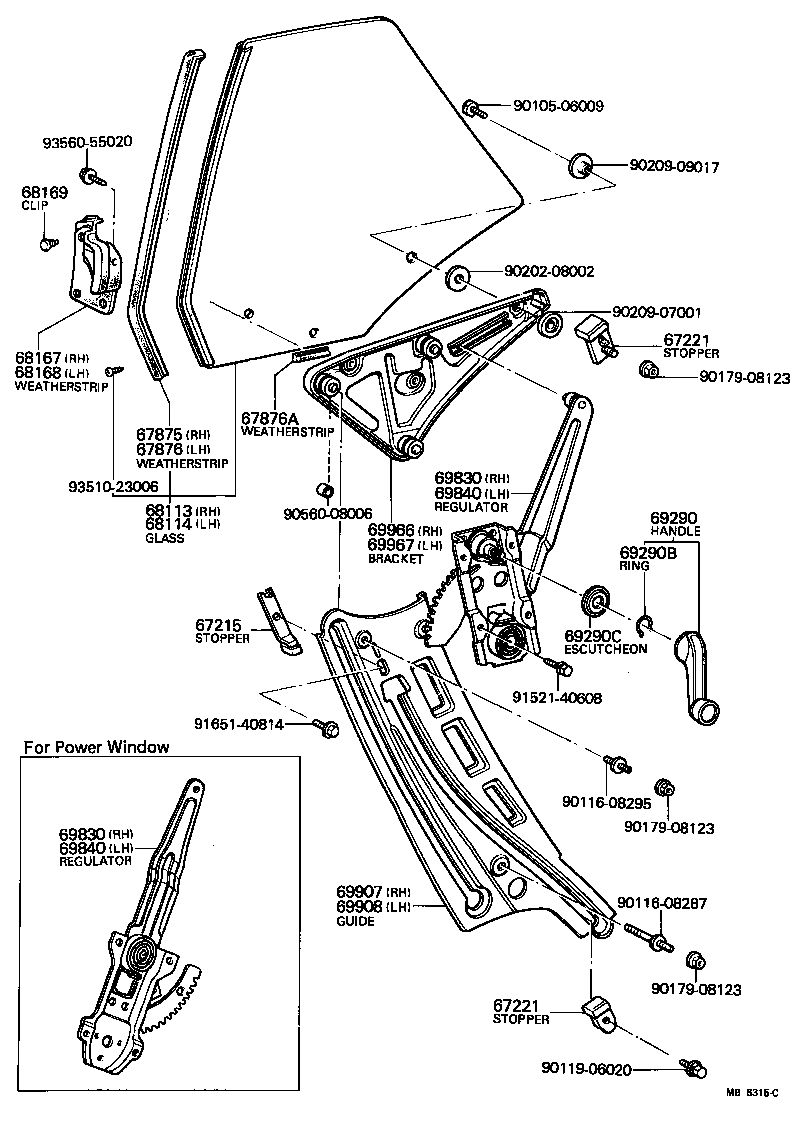

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67215 - STOPPER, QUARTER WINDOW, UPPER FRONT | ||||
| 67215-95800 |
RX30..HT |
2 | ||
| 67221 - STOPPER, QUARTER WINDOW, UPPER | ||||
| 67226-95800 |
RX30..HT FOR UPPER |
2 | ||
| 67242-20020 |
RX30..HT FOR LOWER |
2 | ||
| 67221 - STOPPER, QUARTER WINDOW, UPPER | ||||
| 67226-95800 |
RX30..HT FOR UPPER |
2 | ||
| 67242-20020 |
RX30..HT FOR LOWER |
2 | ||
| 67875 - WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH | ||||
| 67081-95800 |
RX30..HT |
1 | ||
| 67876 - WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH | ||||
| 67082-95800 |
RX30..HT |
1 | ||
| 67876A - WEATHERSTRIP, QUARTER WINDOW GLASS, LOWER | ||||
| 68167-95551 |
RX30..HT |
2 | ||
| 68113 - GLASS, QUARTER WINDOW, RH | ||||
| 62071-95800 |
RX30..HT |
1 | ||
| 68114 - GLASS, QUARTER WINDOW, LH | ||||
| 62072-95800 |
RX30..HT |
1 | ||
| 68167 - WEATHERSTRIP, REAR QUARTER FRONT CORNER, RH | ||||
| 67941-95800 |
RX30..HT |
1 | ||
| 68168 - WEATHERSTRIP, REAR QUARTER FRONT CORNER, LH | ||||
| 67942-95800 |
RX30..HT |
1 | ||
| 68169 - CLIP, CORNER WEATHERSTRIP | ||||
| 67868-30030 |
RX30..HT |
6 | ||
| 69290 - HANDLE ASSY, QUARTER WINDOW REGULATOR | ||||
| 69260-2202005 |
RX30..HT BEIGE,BEIGE,TRIM4# |
2 | ||
| 69260-2202002 |
RX30..HT DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 69260-2202001 |
RX30..HT BLACK,BLACK,TRIM1#,2# |
2 | ||
| 69290B - RING, SNAP(FOR QUARTER WINDOW REGULATOR HANDLE) | ||||
| 90520-01002 |
RX30..HT |
2 | ||
| 69290C - ESCUTCHEON(FOR QUARTER WINDOW REGULATOR HANDLE) | ||||
| 69272-30010 |
RX30..HT |
2 | ||
| 69830 - REGULATOR ASSY, REAR QUARTER WINDOW, RH | ||||
| 69803-95800 |
RX30..HT |
1 | ||
| 69830 - REGULATOR ASSY, REAR QUARTER WINDOW, RH | ||||
| 69803-95800 |
RX30..HT |
1 | ||
| 69840 - REGULATOR ASSY, REAR QUARTER WINDOW, LH | ||||
| 69804-95800 |
RX30..HT |
1 | ||
| 69840 - REGULATOR ASSY, REAR QUARTER WINDOW, LH | ||||
| 69804-95800 |
RX30..HT |
1 | ||
| 69907 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH | ||||
| 67405-95800 |
RX30..HT |
1 | ||
| 69908 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH | ||||
| 67406-95800 |
RX30..HT |
1 | ||
| 69966 - BRACKET, REAR QUARTER WINDOW GLASS, RH | ||||
| 69905-95800 |
RX30..HT |
1 | ||
| 69967 - BRACKET, REAR QUARTER WINDOW GLASS, LH | ||||
| 69906-95800 |
RX30..HT |
1 | ||
| Common parts | ||||
| 90105-06009 | ||||
| 90116-08287 | ||||
| 90116-08295 | ||||
| 90119-06020 | ||||
| 90179-08123 | ||||
| 90202-08002 | ||||
| 90209-07001 | ||||
| 90209-09017 | ||||
| 90560-08006 | ||||
| 91521-40608 | ||||
| 91651-40814 | ||||
| 93510-23006 | ||||
| 93560-55020 | ||||
