RX30L-SHDW (1976)
Toyota Cressida
Production
Dec 1976
-
Aug 1980
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)HT

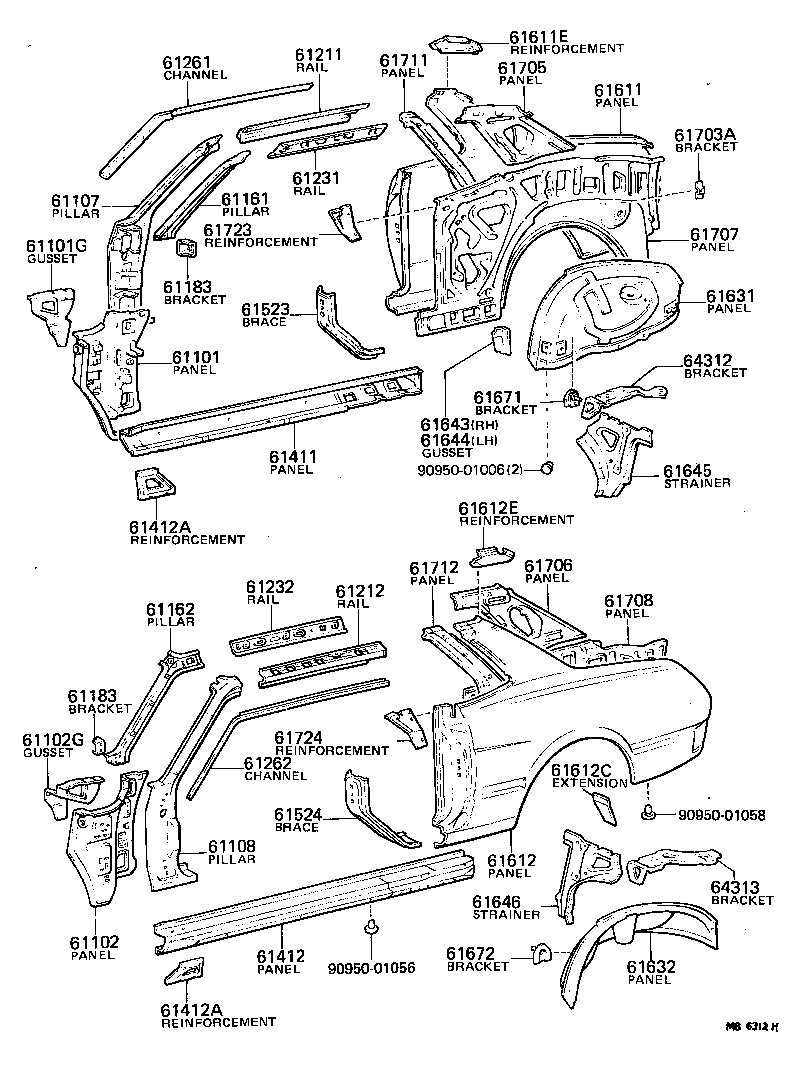

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-22901 |
RX3#..LHD |
1 | ||
| 61101G - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-22020 |
MX3#,RX3#,TX30 |
1 | ||
| 61145-22010 |
MX3#,RX3# |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-22901 |
RX3#..LHD |
1 | ||
| 61102G - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-22020 |
MX3#,RX3#,TX30 |
1 | ||
| 61146-22010 |
MX3#,RX3# |
1 | ||
| 61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH | ||||
| 61027-95801 |
RX30..HT |
1 | ||
| 61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH | ||||
| 61028-95800 |
RX30..HT |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-95800 |
RX30..HT |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-95800 |
RX30..HT |
1 | ||
| 61183 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61183-22010 |
MX3#,RX3#,TX30 |
2 | ||
| 61183 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61183-22010 |
MX3#,RX3#,TX30 |
2 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95800 |
RX30..HT |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95800 |
RX30..HT |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95800 |
RX30..HT |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95800 |
RX30..HT |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-95800 |
RX30..HT |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-95800 |
RX30..HT |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-95800 |
RX30..HT |
1 | ||
| 61411-95802 |
RX30..HT |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-95800 |
RX30..HT |
1 | ||
| 61412-95802 |
RX30..HT |
1 | ||
| 61412A - REINFORCEMENT, ROCKER PANEL, NO.1 LH | ||||
| 61418-22010 |
MX3#,RX3#,TX30 |
2 | ||
| 61412A - REINFORCEMENT, ROCKER PANEL, NO.1 LH | ||||
| 61418-22010 |
MX3#,RX3#,TX30 |
2 | ||
| 61523 - BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, RH | ||||
| 61051-95800 |
RX30..HT |
1 | ||
| 61524 - BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, LH | ||||
| 61052-95800 |
RX30..HT |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-95901 |
RX30..HT |
1 | ||
| 61601-22914 |
RX30..HT FOR W/FUEL LID OPENER |
1 | ||
| 61601-22921 |
RX30..HT..DLX |
1 | ||
| 61611E - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-95800 |
RX30..HT |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-95901 |
RX30..HT |
1 | ||
| 61612C - EXTENSION, QUARTER PANEL, LH | ||||
| 61624-22020 |
MX32,RX30,TX30 |
1 | ||
| 61612E - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-95800 |
RX30..HT |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61607-22901 |
RX30..HT |
1 | ||
| 61607-22904 |
RX30..HT |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61608-22901 |
RX30..HT |
1 | ||
| 61608-22903 |
RX30..HT |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61641-95800 |
RX30..HT |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61642-95800 |
RX30..HT |
1 | ||
| 61645 - STRAINER, QUARTER WHEEL HOUSE, RH | ||||
| 64211-95800 |
RX30..HT |
1 | ||
| 61646 - STRAINER, QUARTER WHEEL HOUSE, LH | ||||
| 64212-95800 |
RX30..HT |
1 | ||
| 61671 - BRACKET, REAR SEAT BACK HINGE, RH | ||||
| 61673-95800 |
RX30..HT |
1 | ||
| 61672 - BRACKET, REAR SEAT BACK HINGE, LH | ||||
| 61674-95800 |
RX30..HT |
1 | ||
| 61703A - BRACKET,FUEL TANK FILLTER PIPE PROTECTOR | ||||
| 77278-22010 |
RX30..HT |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-95801 |
RX30..HT |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-95801 |
RX30..HT |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61613-95800 |
RX30..HT |
1 | ||
| 61613-95801 |
RX30..HT |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61614-95800 |
RX30..HT |
1 | ||
| 61614-95801 |
RX30..HT |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-95800 |
RX30..HT |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-95800 |
RX30..HT |
1 | ||
| 61723 - REINFORCEMENT, QUARTER WINDOW OPENING, REAR RH | ||||
| 61723-95800 |
RX30..HT |
1 | ||
| 61724 - REINFORCEMENT, QUARTER WINDOW OPENING, REAR LH | ||||
| 61724-95800 |
RX30..HT |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-95800 |
RX30..HT |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-95800 |
RX30..HT |
1 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01058 | ||||
