RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

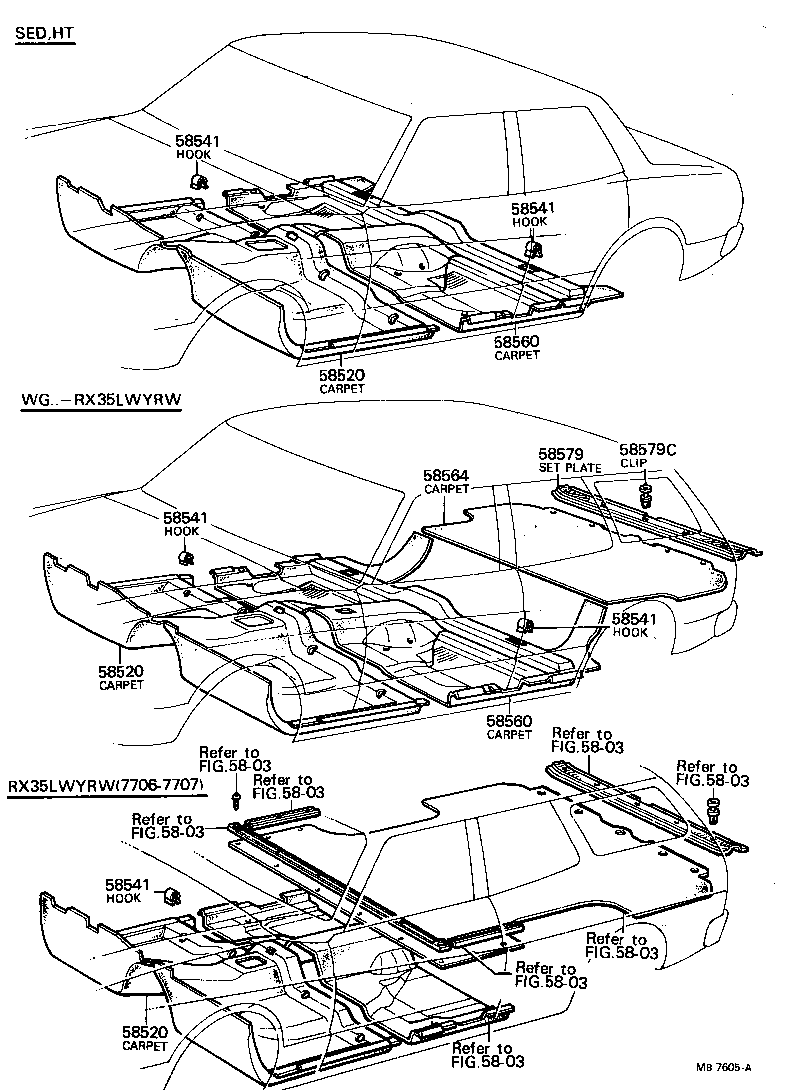

(7612-7707)

Click highlighted areas on diagram

diagram 5803 5803 5803 5803 5803 5803 5803 5803 58520 58520 58520 58541 58541 58541 58541 58541 58560 58560 58564 58579 58579C
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-2217001

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2217003

RX3#..LHD..(3FC,4F,5F)

W/HEATER,GRAY,GRAY,TRIM1#

 1
58510-2217005

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217102

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2217105

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217101

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249001

RX3#..LHD..DLX..EUG

L/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249002

RX3#..LHD..DLX..EUG

L/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2249005

RX3#..LHD..DLX..EUG

L/HEATER,BEIGE,BEIGE,TRIM4#

 1
58520 - CARPET ASSY, FRONT FLOOR
58510-2217001

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2217003

RX3#..LHD..(3FC,4F,5F)

W/HEATER,GRAY,GRAY,TRIM1#

 1
58510-2217005

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217102

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2217105

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217101

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249001

RX3#..LHD..DLX..EUG

L/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249002

RX3#..LHD..DLX..EUG

L/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2249005

RX3#..LHD..DLX..EUG

L/HEATER,BEIGE,BEIGE,TRIM4#

 1
58520 - CARPET ASSY, FRONT FLOOR
58510-2217001

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2217003

RX3#..LHD..(3FC,4F,5F)

W/HEATER,GRAY,GRAY,TRIM1#

 1
58510-2217005

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217102

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2217105

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217101

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249001

RX3#..LHD..DLX..EUG

L/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249002

RX3#..LHD..DLX..EUG

L/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2249005

RX3#..LHD..DLX..EUG

L/HEATER,BEIGE,BEIGE,TRIM4#

 1
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58560 - CARPET ASSY, FLOOR, REAR
58540-9580203

RX30..HT

GRAY,GRAY,TRIM1#

 1
58540-9580205

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
58540-9580201

RX30..HT

BLACK,BLACK,TRIM2#

 1
58540-9580303

RX30..HT..EUG

W/SEAT BELT,GRAY,GRAY,TRIM1#

 1
58540-9580305

RX30..HT..DLX..EUG

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
58540-9580301

RX30..HT..DLX..EUG

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
58540-9580302

RX30..HT..DLX..EUG

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-9580203

RX30..HT

GRAY,GRAY,TRIM1#

 1
58540-9580205

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
58540-9580201

RX30..HT

BLACK,BLACK,TRIM2#

 1
58540-9580303

RX30..HT..EUG

W/SEAT BELT,GRAY,GRAY,TRIM1#

 1
58540-9580305

RX30..HT..DLX..EUG

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
58540-9580301

RX30..HT..DLX..EUG

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
58540-9580302

RX30..HT..DLX..EUG

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

 1
Linked diagrams
5803

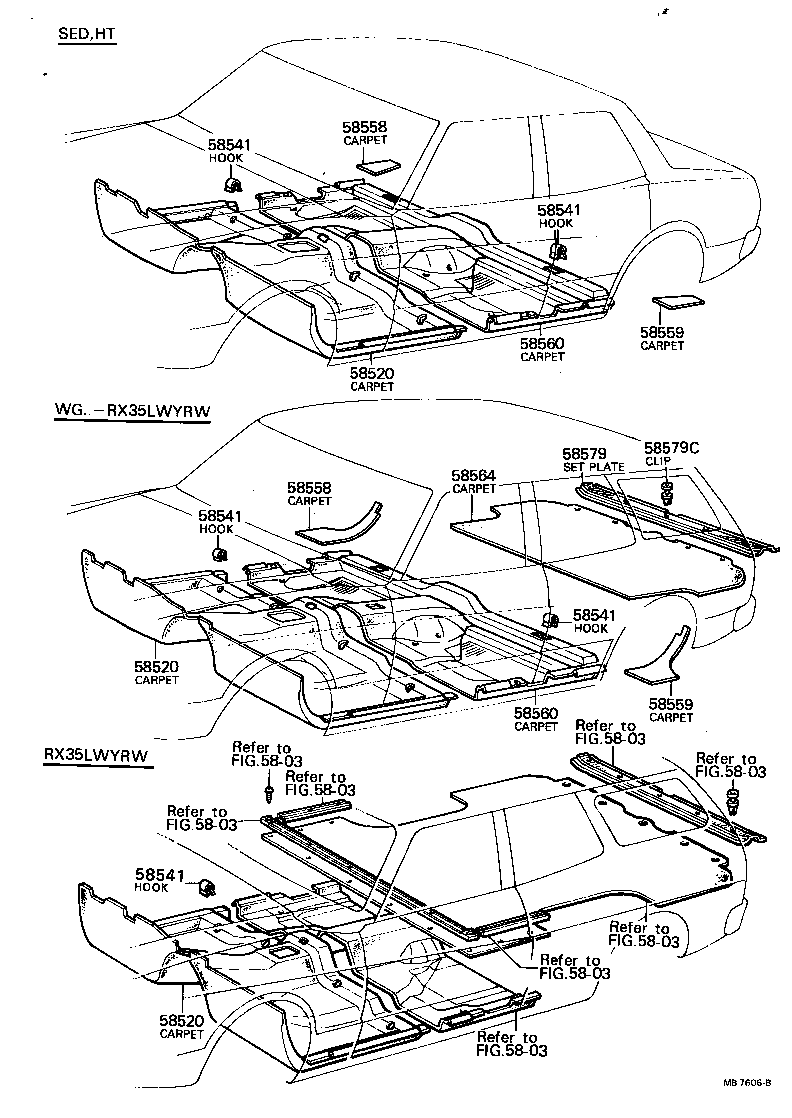

(7707-8008)

Click highlighted areas on diagram

diagram 5803 5803 5803 5803 5803 5803 5803 5803 58520 58520 58520 58541 58541 58541 58541 58541 58558 58558 58559 58559 58560 58560 58564 58579 58579C
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-2217001

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2217003

RX3#..LHD..(3FC,4F,5F)

W/HEATER,GRAY,GRAY,TRIM1#

 1
58510-2217005

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217102

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2217105

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217101

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249001

RX3#..LHD..DLX..EUG

L/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249002

RX3#..LHD..DLX..EUG

L/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2249005

RX3#..LHD..DLX..EUG

L/HEATER,BEIGE,BEIGE,TRIM4#

 1
58520 - CARPET ASSY, FRONT FLOOR
58510-2217001

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2217003

RX3#..LHD..(3FC,4F,5F)

W/HEATER,GRAY,GRAY,TRIM1#

 1
58510-2217005

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217102

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2217105

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217101

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249001

RX3#..LHD..DLX..EUG

L/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249002

RX3#..LHD..DLX..EUG

L/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2249005

RX3#..LHD..DLX..EUG

L/HEATER,BEIGE,BEIGE,TRIM4#

 1
58520 - CARPET ASSY, FRONT FLOOR
58510-2217001

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2217003

RX3#..LHD..(3FC,4F,5F)

W/HEATER,GRAY,GRAY,TRIM1#

 1
58510-2217005

RX3#..LHD..(3FC,4F,5F)

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217102

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2217105

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BEIGE,BEIGE,TRIM4#

 1
58510-2217101

RX3#..LHD..(3FC,4F,5F)..DLX

W/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249001

RX3#..LHD..DLX..EUG

L/HEATER,BLACK,BLACK,TRIM2#

 1
58510-2249002

RX3#..LHD..DLX..EUG

L/HEATER,DARK WINE,RED/MAROON,TRIM3#

 1
58510-2249005

RX3#..LHD..DLX..EUG

L/HEATER,BEIGE,BEIGE,TRIM4#

 1
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58541 - HOOK, MALE, NO.1(FOR CARPET)
58521-22040

MX3#,RX3#,TX30

 10
58521-22040

MX3#,RX3#

 12
58560 - CARPET ASSY, FLOOR, REAR
58540-9580203

RX30..HT

GRAY,GRAY,TRIM1#

 1
58540-9580205

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
58540-9580201

RX30..HT

BLACK,BLACK,TRIM2#

 1
58540-9580303

RX30..HT..EUG

W/SEAT BELT,GRAY,GRAY,TRIM1#

 1
58540-9580305

RX30..HT..DLX..EUG

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
58540-9580301

RX30..HT..DLX..EUG

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
58540-9580302

RX30..HT..DLX..EUG

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-9580203

RX30..HT

GRAY,GRAY,TRIM1#

 1
58540-9580205

RX30..HT

BEIGE,BEIGE,TRIM4#

 1
58540-9580201

RX30..HT

BLACK,BLACK,TRIM2#

 1
58540-9580303

RX30..HT..EUG

W/SEAT BELT,GRAY,GRAY,TRIM1#

 1
58540-9580305

RX30..HT..DLX..EUG

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
58540-9580301

RX30..HT..DLX..EUG

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
58540-9580302

RX30..HT..DLX..EUG

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

 1
Linked diagrams
5803
