RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

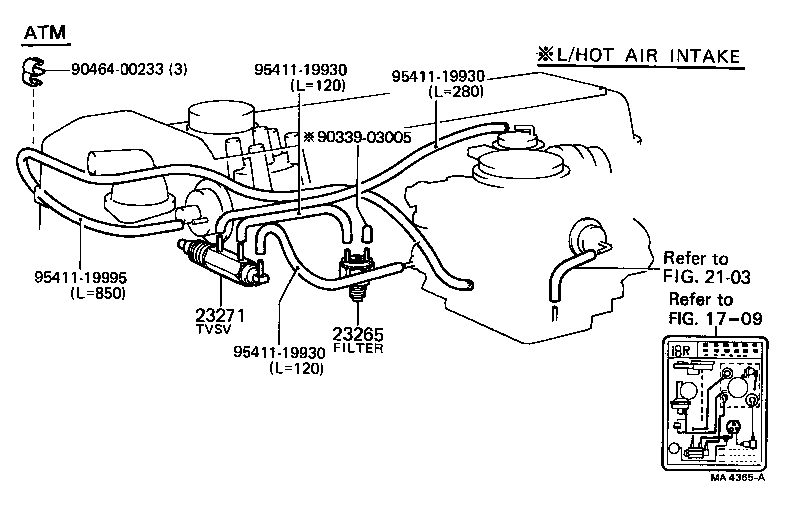

(7612-8008)18R#

Click highlighted areas on diagram

diagram 2103 2103 23265 23265 23271 9033903005 9041304005 9046400082 9046400233 9046805025 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119995
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11017

18R..RX3#..EUG

 1
90917-11017

18R..RX3#..EUG

 1
90917-11017

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
23265 - FILTER, GAS, NO.1
90917-11017

18R..RX3#..EUG

 1
90917-11017

18R..RX3#..EUG

 1
90917-11017

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02028

18R..RX3#..EUG

 1
90925-02028

18R..RX3#..EUG

 1
90925-02028

18R..RX3#..EUG

 1
90925-02039

18R..RX3#..EUG

 1
90925-02039

18R..RX3#..EUG

 1
90925-02039

18R..RX3#..EUG

 1
90925-02039

18R#..RX3#..EUR

 1
90925-02039

18R#..RX3#..EUR

 1
90925-02039

18R#..RX3#..EUR

 1
Common parts
90339-03005
90413-04005
90464-00082
90464-00233
90468-05025
95411-19930
95411-19960
95411-19995
Linked diagrams
2103

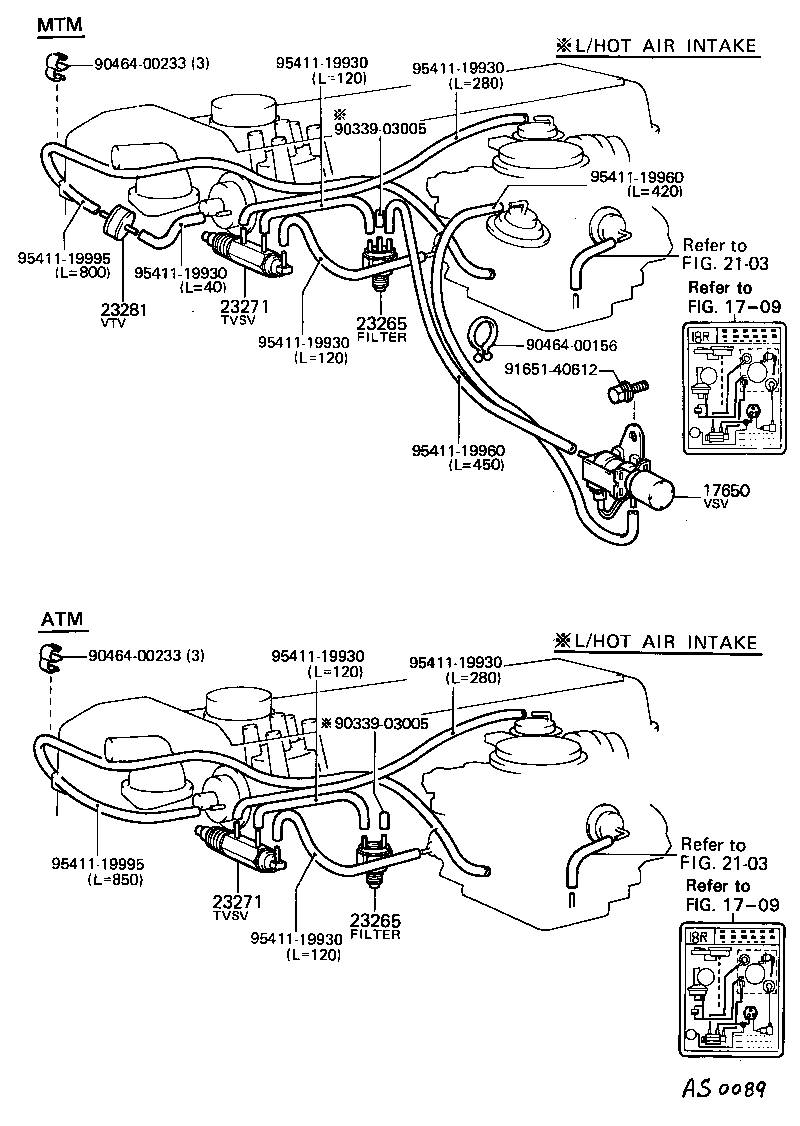

(7612-7908)18R..EUG

Click highlighted areas on diagram

diagram 1709 1709 17650 2103 2103 23265 23265 23271 23271 23281 9033903005 9033903005 9046400156 9046400233 9046400233 9165140612 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119995 9541119995
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11017

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
23265 - FILTER, GAS, NO.1
90917-11017

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02028

18R..RX3#..EUG

 1
90925-02039

18R..RX3#..EUG

 1
90925-02039

18R#..RX3#..EUR

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02028

18R..RX3#..EUG

 1
90925-02039

18R..RX3#..EUG

 1
90925-02039

18R#..RX3#..EUR

 1
Common parts
90339-03005
90464-00156
90464-00233
91651-40612
95411-19930
95411-19960
95411-19995
Linked diagrams
1709
2103

(7908-8008)18R..EUG

Click highlighted areas on diagram

diagram 1709 2103 23265 23271 9033903005 9046400233 9541119930 9541119930 9541119930 9541119995
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11017

18R..RX3#..EUG

 1
90917-11022

18R..RX3#..EUG

 1
90917-11023

18R..RX3#..3FC..EUG

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02028

18R..RX3#..EUG

 1
90925-02039

18R..RX3#..EUG

 1
90925-02039

18R#..RX3#..EUR

 1
Common parts
90339-03005
90464-00233
95411-19930
95411-19995
Linked diagrams
1709
2103
