RX30L-SHDW (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7901)18R#..EUR,GEN

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17151 17152 17171 17172 9011910038 9111140870 9111171032
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-34053

18R..RX3#..EUR,GEN

 1
17110-34052

18R..RX3#..EUR,GEN

 1
17110-34051

18R..RX3#..EUR,GEN

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-10040

18R#..RX3#

 1
90407-10040

18R#..RX3#..EUR,GEN

 1
90407-09003

18R#..RX3#..EUR,GEN

 1
17111A - PLUG, NO.1
90072-34107

18R#..RX3#

 3
90344-51001

18R#..RX3#..EUR,GEN

 2
90344-51014

18R#..RX3#..EUR,GEN

 1
90344-51010

18R#..RX3#..EUR,GEN

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08052

18R#..RX3#..EUR,GEN

L=53,S=16&16

 4
92132-40835

18R..RX3#

 4
90116-08052

18R#..RX3#

L=53,S=16&16

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

18R#..RX3#..EUR,GEN

L=38,S=14&21

 3
90116-10007

18R..RX3#

L=39,S=14&19

 3
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-34020

18R#..RX3#..EUR,GEN

 1
17171-34030

18R#..RX3#..EUR,GEN

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-33010

18R..RX3#

 1
17172-34020

18R#..RX3#

 1
Common parts
90119-10038
91111-40870
91111-71032

(7901-8008)18R#..EUR,GEN

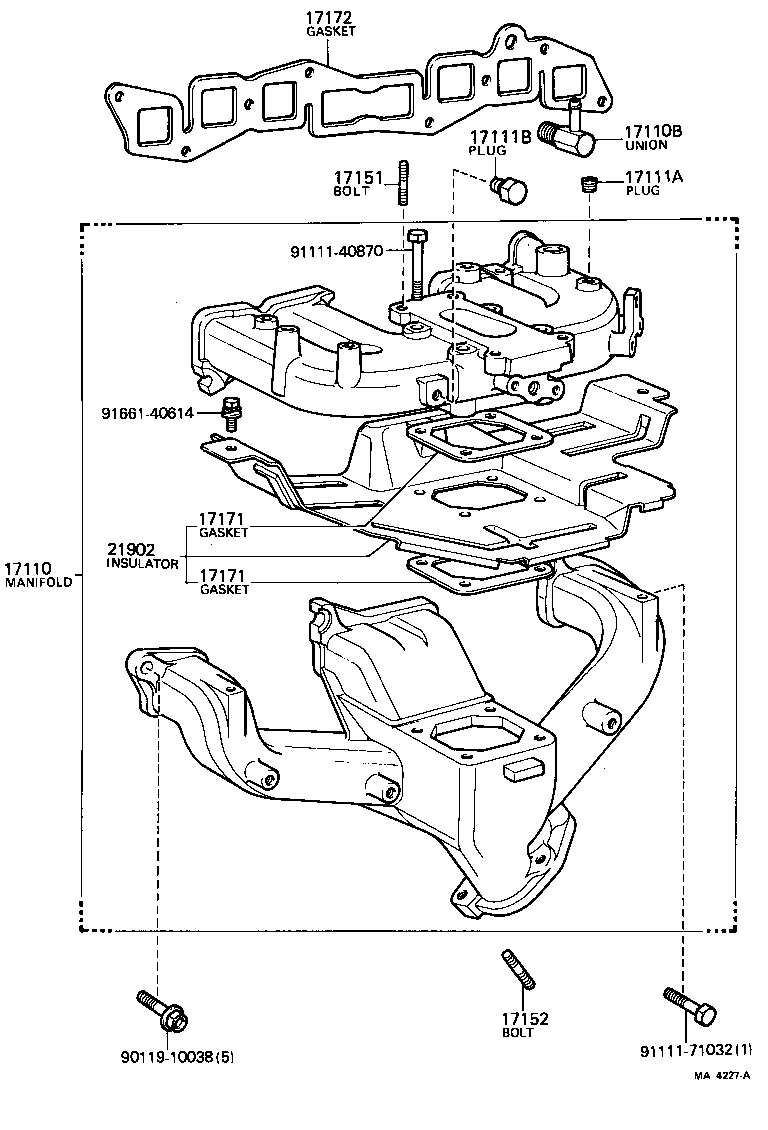

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111B 17151 17152 17171 17171 17172 21902 9011910038 9111140870 9111171032 9166140614
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-34053

18R..RX3#..EUR,GEN

 1
17110-34052

18R..RX3#..EUR,GEN

 1
17110-34051

18R..RX3#..EUR,GEN

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-10040

18R#..RX3#

 1
90407-10040

18R#..RX3#..EUR,GEN

 1
90407-09003

18R#..RX3#..EUR,GEN

 1
17111A - PLUG, NO.1
90072-34107

18R#..RX3#

 3
90344-51001

18R#..RX3#..EUR,GEN

 2
90344-51014

18R#..RX3#..EUR,GEN

 1
90344-51010

18R#..RX3#..EUR,GEN

 1
17111B - PLUG, NO.2
90072-34107

18R#..RX3#..EUR,GEN

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08052

18R#..RX3#..EUR,GEN

L=53,S=16&16

 4
92132-40835

18R..RX3#

 4
90116-08052

18R#..RX3#

L=53,S=16&16

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

18R#..RX3#..EUR,GEN

L=38,S=14&21

 3
90116-10007

18R..RX3#

L=39,S=14&19

 3
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-34020

18R#..RX3#..EUR,GEN

 1
17171-34030

18R#..RX3#..EUR,GEN

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-34020

18R#..RX3#..EUR,GEN

 1
17171-34030

18R#..RX3#..EUR,GEN

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-33010

18R..RX3#

 1
17172-34020

18R#..RX3#

 1
21902 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.2
21913-39015

18R#..RX3#..EUR,GEN

 1
Common parts
90119-10038
91111-40870
91111-71032
91661-40614
